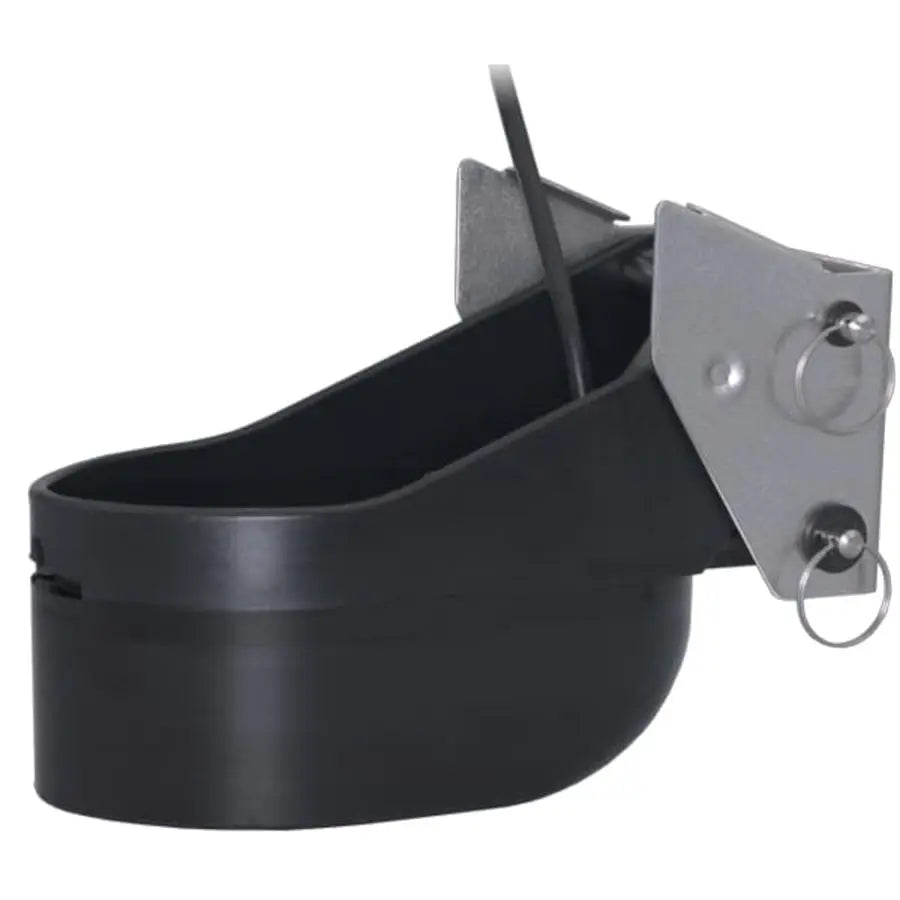

AIRMAR TM265C-LM 1kW Low Medium CHIRP Garmin 12-Pin Cable

Detailed Overview of AIRMAR TM265C-LM Features and Benefits

AIRMAR TM265C-LM 1kW Low Medium CHIRP Garmin 12-Pin Cable

Airmar TM265C Low/Medium CHIRP Transom Mount Transducer with Garmin 12-Pin Mix-N-Match Cable

Model: TM265C-LM-12G

• Depth and fast-response water-temperature sensing
• 1 kW of power for great deep to mid-depth performance
• Low frequency: 42 to 65 kHz, 25 deg to 16 deg port-starboard beamwidt, Maximum depth of 914 m (3000 feet)
• Medium frequency: 85 to 135 kHz, 16 deg to 11 deg beamwidth, Maximum depth of 457 m (1500 feet)
• 73 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths
• Transom mount stainless steel bracket for installation on boats of all propulsion types
• SEALCASTTM, seamless, urethane housing for long life in the water
• Patented Xducer ID(R) technology

Rely on Airmar's new broadband transducers for the ultimate fishing mission! Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town. Traditional marine fish finders operate at discreet frequencies such as 50 kHz and 200 kHz, use relatively short-duration pulses, and use narrowband sonar transducers. In contrast, Chirp uses a precise sweep pattern of many frequencies within a long-duration transmit pulse from a broadband transducer, so the equivalent sound energy transmitted into the water is 10 to 1,000 times greater than a conventional marine fish finder.

Specifically designed for small boats (25 feet-40 feet), the TM265LH Chirps across the following bandwidths:

LH Model - Low Frequency 42-65 kHz/High Frequency 130-210 kHz

Specifications

Low frequency42-65 kHz (25 deg to 16 deg beamwidth)

Medium Frequency
85-135 kHz (16 deg-11 deg)

Cable-Length
10 m (33 feet)

Housing
Urethane/Stainless Bracket

Mounting Style
Transom

Power Rating
1 kW

Single or Dual Frequency
CHIRP-Ready Dual-Band

Transducer Functions
Depth, Temperature

Transom Angle
3 deg to 21 deg

What's in the Box:

• TM265C-LM-MM
• Transom Mount Hardware
• MMC-12G Cable

High-Performance 1kW Low Medium CHIRP Sonar Technology

The AIRMAR TM265C-LM is a powerful 1kW Low Medium CHIRP transducer designed to deliver superior underwater imaging for boating and fishing enthusiasts. It uses advanced CHIRP technology, which sends a continuous sweep of frequencies, providing clearer target separation and enhanced detail in the water column. This capability ensures accurate fish detection and bottom tracking, making it a reliable choice for navigation and fishfinding in both shallow and medium-depth waters. Its precise sonar performance boosts your marine electronics experience by delivering sharp, distortion-free sonar images.

Compatibility with Garmin 12-Pin Connection

One standout feature of the AIRMAR TM265C-LM is its compatibility with Garmin systems via the included 12-pin cable. This seamless integration allows users to easily connect the transducer to various Garmin chartplotters and sonar units, ensuring quick setup and dependable data transmission. The 12-pin connector provides a secure, weatherproof connection that is vital for marine environments. This design reduces installation time and enhances durability, making it an excellent option for Garmin users looking to upgrade or replace their sonar transducers.

Robust Build Quality for Marine Environments

Constructed with a durable composite housing and designed to resist corrosion, the AIRMAR TM265C-LM ensures longevity in harsh saltwater conditions. Its rugged construction withstands impacts, pressure, and marine wear and tear, providing consistent performance over time. The transducer's streamlined shape reduces drag and turbulence, which helps maintain optimal vessel speed and fuel efficiency. Whether you are a professional fisherman or a weekend boater, this transducer’s rugged design means reliable operation and minimal maintenance, offering peace of mind during extended outings on the water.
