AIRMAR TM265C-LM 1kW Low Medium CHIRP Raymarine 11-Pin Y-Cable

AIRMAR TM265C-LM: Advanced 1kW Low Medium CHIRP Sonar Technology

AIRMAR TM265C-LM 1kW Low Medium CHIRP Raymarine 11-Pin Y-Cable

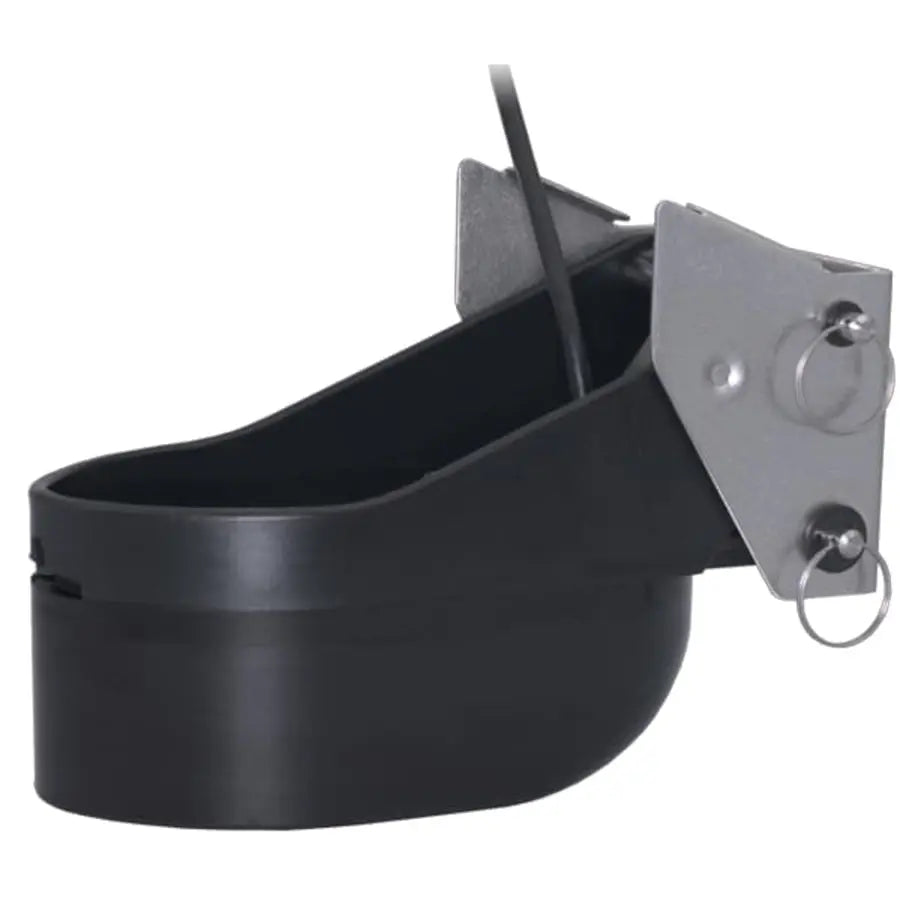

Airmar TM265C Low/Medium CHIRP Transom Mount Transducer with Raymarine 11-Pin Mix-N-Match Cable

Model: TM265C-LM-11R

• Depth and fast-response water-temperature sensing
• 1 kW of power for great deep to mid-depth performance
• Low frequency: 42 to 65 kHz, 25 deg to 16 deg port-starboard beamwidt, Maximum depth of 914 m (3000 feet)
• Medium frequency: 85 to 135 kHz, 16 deg to 11 deg beamwidth, Maximum depth of 457 m (1500 feet)
• 73 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths
• Transom mount stainless steel bracket for installation on boats of all propulsion types
• SEALCASTTM, seamless, urethane housing for long life in the water
• Patented Xducer ID(R) technology

Rely on Airmar's new broadband transducers for the ultimate fishing mission! Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town. Traditional marine fish finders operate at discreet frequencies such as 50 kHz and 200 kHz, use relatively short-duration pulses, and use narrowband sonar transducers. In contrast, Chirp uses a precise sweep pattern of many frequencies within a long-duration transmit pulse from a broadband transducer, so the equivalent sound energy transmitted into the water is 10 to 1,000 times greater than a conventional marine fish finder.

Specifically designed for small boats (25 feet-40 feet), the TM265LH Chirps across the following bandwidths:

LH Model - Low Frequency 42-65 kHz/High Frequency 130-210 kHz

Specifications

Low frequency42-65 kHz (25 deg to 16 deg beamwidth)

Medium Frequency
85-135 kHz (16 deg-11 deg)

Cable-Length
10 m (33 feet)

Housing
Urethane/Stainless Bracket

Mounting Style
Transom

Power Rating
1 kW

Single or Dual Frequency
CHIRP-Ready Dual-Band

Transducer Functions
Depth, Temperature

Transom Angle
3 deg to 21 deg

What's in the Box:

• TM265C-LM-MM
• Transom Mount Hardware
• MMC-11R-LDB Cable

High-Performance 1kW Low Medium CHIRP Sonar

The AIRMAR TM265C-LM transducer offers 1kW power output with low and medium frequency CHIRP technology designed for precise underwater imaging. It enhances target separation and depth penetration, making it ideal for recreational and professional anglers. The Low Medium CHIRP frequencies improve fish detection in varied water conditions, delivering clearer images of the underwater environment. This transducer is engineered to maximize sonar capabilities, providing reliable performance on any Raymarine compatible system.

Compatibility with Raymarine 11-Pin Y-Cable

This model is equipped with a Raymarine 11-pin Y-cable, ensuring quick and secure connectivity to Raymarine sonar and fishfinder units. The Y-cable design simplifies installations and allows seamless integration into existing Raymarine electronics systems. By using the official 11-pin connector, users experience reliable data transmission without signal loss, which is vital for accurate sonar readings and optimal device compatibility.

Durability and Ease of Installation

The AIRMAR TM265C-LM is built with a robust housing to endure harsh marine environments, including saltwater exposure and impacts. Its compact design fits most common mounting options, while the molded Y-cable reduces installation complexity. Designed for lasting performance, this transducer requires minimal maintenance and supports versatility in boat setup. Its durable construction combined with user-friendly installation ensures long-term operational efficiency for boating enthusiasts.
