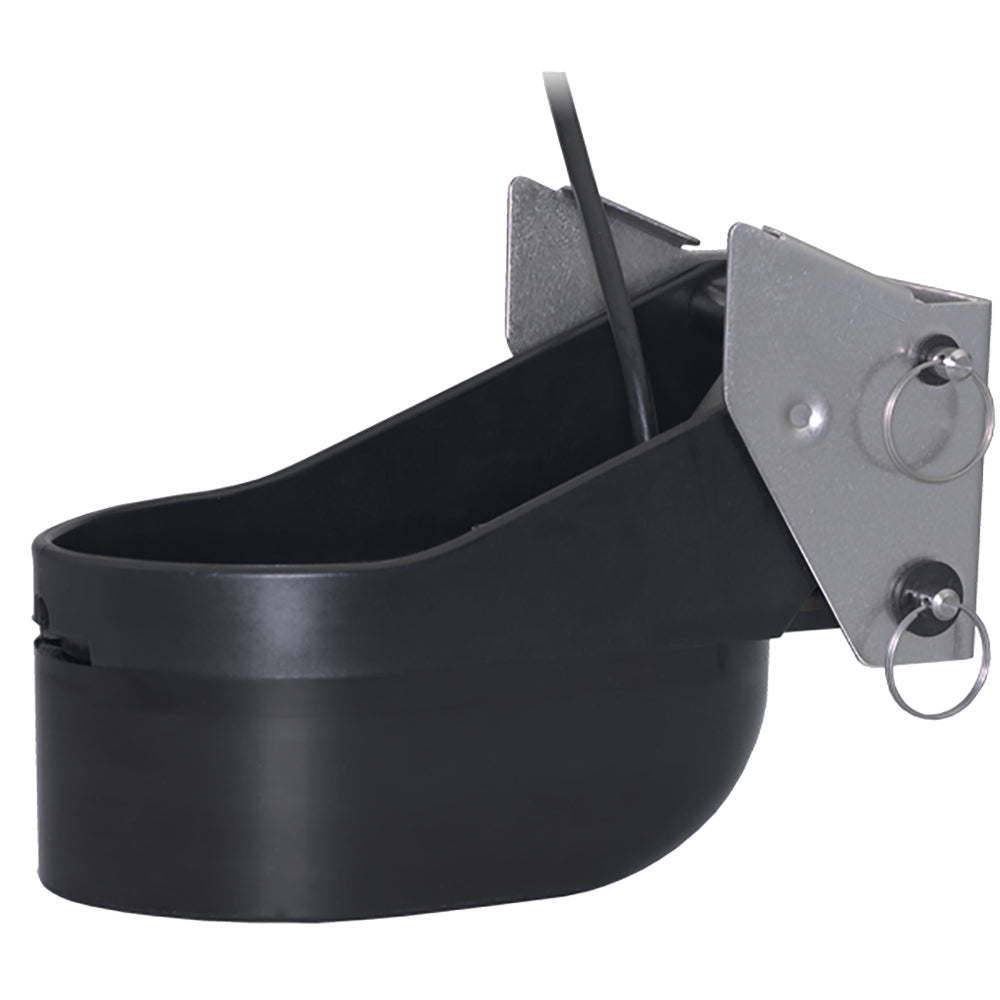

Airmar TM275C-LHW 1kW Chirp Transom Mount Transducer for Deep Water Fishing

TM275C-LHW 1kW Chirp Transom Mount Transducer

Get more coverage under your boat with Airmars unique wide beam, high frequency Chirp-ready transducers. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25 beam for all frequencies. The high frequency band results in superior resolution. The constant wide beamwidth provides twice the coverage under the boat and excellent fish arches on the display compared to most high frequency narrow beam transducer options.

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 500'.

The low frequency band and 1 kW of power also provides great deeper water performance. Get the best of both worlds with Airmars dual frequency Chirp-ready transducers with wide beam coverage.

Features:

• Depth and fast-response water-temperature sensor
• 1 kW for great deep water performance from the low frequency
• Low Frequency: 42 kHz to 65 kHz with maximum depth of 914 m (3000') 25 to 16 beamwidth
• High Frequency: 150 kHz to 250 kHz with maximum depth of 152 m (500') 25 constant beamwidth
• 123 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
• High frequency provides superior shallow water performance, bottom detail and fish target separation
• High wide beamwidth provides more coverage under the boat for detecting fish in the upper water column
• Transom-mount transducer with stainless steel mounting bracket
• Recommended boat size: up to 10 m (32')
• Hull Type: Fiberglass, wood, aluminum or steel
• Exclusive Xducer ID technology
• Mix and Match Cable Required

Specifications:

• Weight: 4 kg (8.9 lb)
• Transom Angles: 3 to 21
• Acoustic Window: Urethane
• Urethane transducer housing with stainless steel bracket
• Eight internal broadband ceramic assemblies

The Airmar TM275C-LHW 1kW Chirp Transom Mount Transducer is engineered to provide comprehensive underwater coverage and high-resolution imaging for boats up to 32 feet in length. Featuring a unique wide beam, high-frequency Chirp-ready design, this transducer ensures superior target separation and detailed bottom imaging, making it ideal for both inshore and pelagic fishing applications. Its high band operates between 150 and 250 kHz with a fixed 25-degree beamwidth, delivering excellent resolution and broad coverage beneath your vessel. This wide beamwidth results in twice the coverage compared to traditional narrow-beam transducers, capturing more fish arches and enhancing your fishing experience. The transducer also includes a low-frequency range from 42 to 65 kHz, capable of reaching depths of up to 3,000 feet, making it suitable for deep-water fishing. With a power output of 1kW, it offers reliable performance in challenging deep-water conditions. The TM275C-LHW features a depth and water-temperature sensor, providing real-time environmental data essential for strategic fishing. Its urethane housing with a stainless steel mounting bracket ensures durability across various hull types, including fiberglass, wood, aluminum, or steel. The transom-mount design is complemented by exclusive Xducer ID technology, simplifying installation and configuration. This transducer covers a broad spectrum of popular fishing frequencies, including 50 and 200 kHz, providing versatility and detailed imaging in different water conditions. Whether targeting shallow or deep waters, the Airmar TM275C-LHW offers an optimal combination of coverage, resolution, and durability for serious anglers and commercial operators alike.

Features:

• Depth and fast-response water-temperature sensor for real-time environmental data

• 1 kW power output for exceptional deep water performance

• Low Frequency: 42-65 kHz with a maximum depth of 3,000 feet and 25-16 degree beamwidth

• High Frequency: 150-250 kHz with a maximum depth of 500 feet and a constant 25-degree beamwidth

• Total bandwidth of 123 kHz from a single transducer, covering popular fishing frequencies

• High frequency offers superior shallow water detail, including bottom contours and fish targets

• Wide beamwidth provides extensive coverage under the boat for detecting fish in the upper water column

• Transom-mount design with stainless steel bracket for easy installation on various hull types

• Suitable for vessels up to 32 feet with hull types including fiberglass, wood, aluminum, or steel

• Exclusive Xducer ID technology simplifies setup and configuration

• Requires compatible Mix and Match cable for optimal operation
