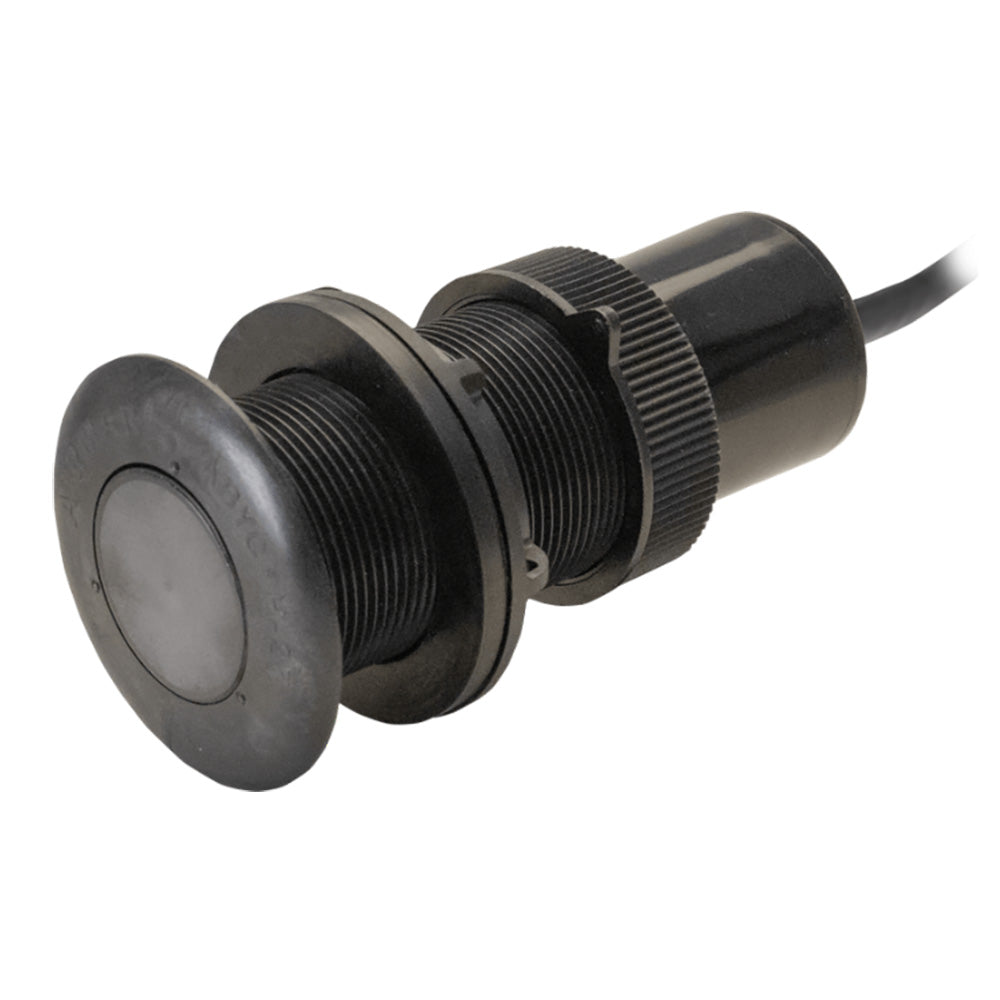

Airmar UDST820 TriSonic Plastic Thru-Hull Transducer with NMEA 2000 for Sailboats and Powerboats

UDST820 TriSonic Plastic Thru-Hull Transducer - N2K

TriSonic Smart Sensor combines a depth sensor, ultrasonic speed sensor, water temperature, and heel and trim data into one sensor. It delivers unmatched reliability and accuracy without the need for paddlewheel maintenance. Its ultrasonic speed solution features no moving parts, eliminating cleaning or wear concerns, making it a high-precision, low-maintenance option for power and sailboats of all sizes. The TriSonic Smart Sensor, along with the CAST app, simplifies the calibration of speed-through-water. The Airmar CAST App connects directly from iOS and Android Smart devices to Airmars Bluetooth enabled TriSonic Smart sensors and makes configuration simple with intuitive menus and guided calibration. View data from the sensor in digital or graphical format, quickly turn on or off NMEA 2000 PGNs, configure offsets and more.

CAST App for Speed and Depth Calibration:

The CAST app provides a simple and consistent way of calibrating speed and depth. Simple offsets can be applied to compensate for the depth below keel or depth from surface. Calibrations and configuration changes are stored in the Airmar Smart Multisensor and delivered to the NMEA2000 network. CAST provides a consistent and reliable way to calibrate basic and heel-compensated speed-through-water with a step-by-step guided process. For advanced speed-through-water calibration, CAST allows you to manually enter custom speed data for up to four heel angles and up to ten speeds. Before CAST, this feature was only available on the market through expensive PC software.

Embrace Ultrasonic Smart technology and leave paddlewheel maintenance behind, brought to you by the innovators of the Smart Sensor.

TriSonic Smart Sensor Combines:

• Ultrasonic speed (no paddlewheel)
• Depth
• Water temperature
• Heel and trim data

Features:

• No paddlewheel or moving parts to maintain or replace.
• Provides NMEA 2000 output of calibrated data to every instrument and MFD on the network.
• Advanced speed filtering and sampling rates for enhanced accuracy at all speeds, with data updating up to 5 times per second.
• Patented Adaptive Signal Processing adjusts to boat speed, water depth, and water clarity for consistent speed accuracy.
• Suitable for both saltwater and freshwater use.
• Easily retrofits into most existing AIRMAR 2 housings.

Connects wirelessly to Airmars CAST app, offering user-friendly benefits:

• Simplifies speed calibration through your mobile device.
• Offers basic and advanced speed calibration with the ability to manually enter speeds for multiple heel angles and up to 10 different speeds, a feature previously available only through costly PC software

Specifications:

• Bluetooth Capable: YES Bluetooth BLE
• Cable-Length:6 m (20) NMEA 2000 cable, 6 m (20)
• Comm Method:NMEA 2000
• Common Use:Cruising/Racing Sailboats, Leisure/Yachting
• Country of Origin:USA
• Data Rate:Up to 10 times per second
• Depth Range:Minimum Depth .6 m ( 2), Maximum Depth 100 m (328)
• Display Connector:N2 Micro
• Frequency Band:235 kHz
• Functions:Depth, Speed, Temperature, Attitude
• Hole Size:51 mm (2)
• Hull Material:Fiberglass or metal
• Material:Plastic
• Max Depth: 0.6 m (2) to 100 m (330)
• Mounting Style: Low Profile Thru-Hull
• NMEA 2000 LEN: 6
• Power Rating:100 W
• Power Supply Current: 80 mA - 200 mA, Average 125 mA @12VDC
• Retract Method: Manual
• Retractable housing: Yes
• Retrofits: Fits most Airmar 2 housings
• Speed Range: 0.1 to 35 knots (40 MPH)
• Temperature Accuracy:+0.5C (+1.0F)
• Tilted Element:No
• Usable Shaft Length:57 mm (2.25)
• Voltage:9 to 16 VDC
• Water Temperature: -4 to 40C (24.8 to 104F)
• Weight:1.4 kg (3 lb.)
• Wireless Range: Up to 30 depending on mount location

The Airmar UDST820 TriSonic Smart Sensor is an advanced through-hull transducer designed for both cruising and racing sailboats as well as leisure and yachting vessels. Combining a depth sensor, ultrasonic speed sensor, water temperature, and heel and trim data into one compact unit, it offers unmatched reliability and precision without the maintenance concerns associated with paddlewheels. Its ultrasonic speed measurement employs no moving parts, ensuring consistent performance with minimal upkeep, making it suitable for vessels operating in both saltwater and freshwater environments. The transducer's advanced signal processing technology adapts to varying water conditions, providing accurate data at all speeds and depths, with updates occurring up to five times per second.

Connectivity is streamlined through Bluetooth BLE, allowing wireless pairing with the Airmar CAST app, compatible with both iOS and Android devices. This app simplifies calibration and configuration, enabling users to apply simple offsets for depth calibration or perform advanced speed-through-water calibration by manually entering data for multiple heel angles and different speeds. Such features, once exclusive to costly PC software, are now accessible directly from your mobile device, making setup and adjustments straightforward and efficient. The transducer outputs calibrated data via NMEA 2000, compatible with all network-connected instruments and multifunction displays, facilitating seamless data integration across your vessel's systems.

Designed for ease of installation, the UDST820 fits most existing Airmar 2 housings and features a low-profile thru-hull mounting style. It offers a depth range from as shallow as 0.6 meters (2 feet) to a maximum of 328 meters (1000 feet), with a tiltless design and a lightweight build of just 3 pounds. Power consumption is efficient, with a typical draw of 125 mA at 12 volts, and the unit supports a voltage range of 9 to 16 VDC. Its versatile features include water temperature measurement with an accuracy of ±0.5°C, speed measurement from 0.1 to 35 knots, and attitude data, all delivered with high precision. The transducer's rugged construction ensures durability in harsh marine environments, while the wireless range of up to 30 feet allows flexible mounting options to optimize signal strength and accuracy. Overall, the Airmar UDST820 TriSonic transducer provides a comprehensive, low-maintenance solution for modern marine navigation and performance monitoring systems.

Features:

• Ultrasonic speed measurement with no paddlewheel or moving parts

• Depth and water temperature sensors integrated

• Heel and trim data for improved navigation accuracy

• Wireless Bluetooth BLE connectivity for easy calibration via the CAST app

• Supports advanced calibration with manual input for multiple heel angles and speeds

• NMEA 2000 output compatible with all networked marine instruments and MFDs

• High sampling rate with data updates up to 5 times per second

• Adaptive Signal Processing technology adjusts for water conditions

• Suitable for both saltwater and freshwater environments

• Low-profile thru-hull mounting with retrofitting compatibility

• Depth range from 0.6 meters (2 feet) to 328 meters (1000 feet)

• Lightweight, durable design with fiberglass or metal hull compatibility

• Power efficient operation with 9-16 VDC support

• Wireless range of up to 30 feet for flexible installation
