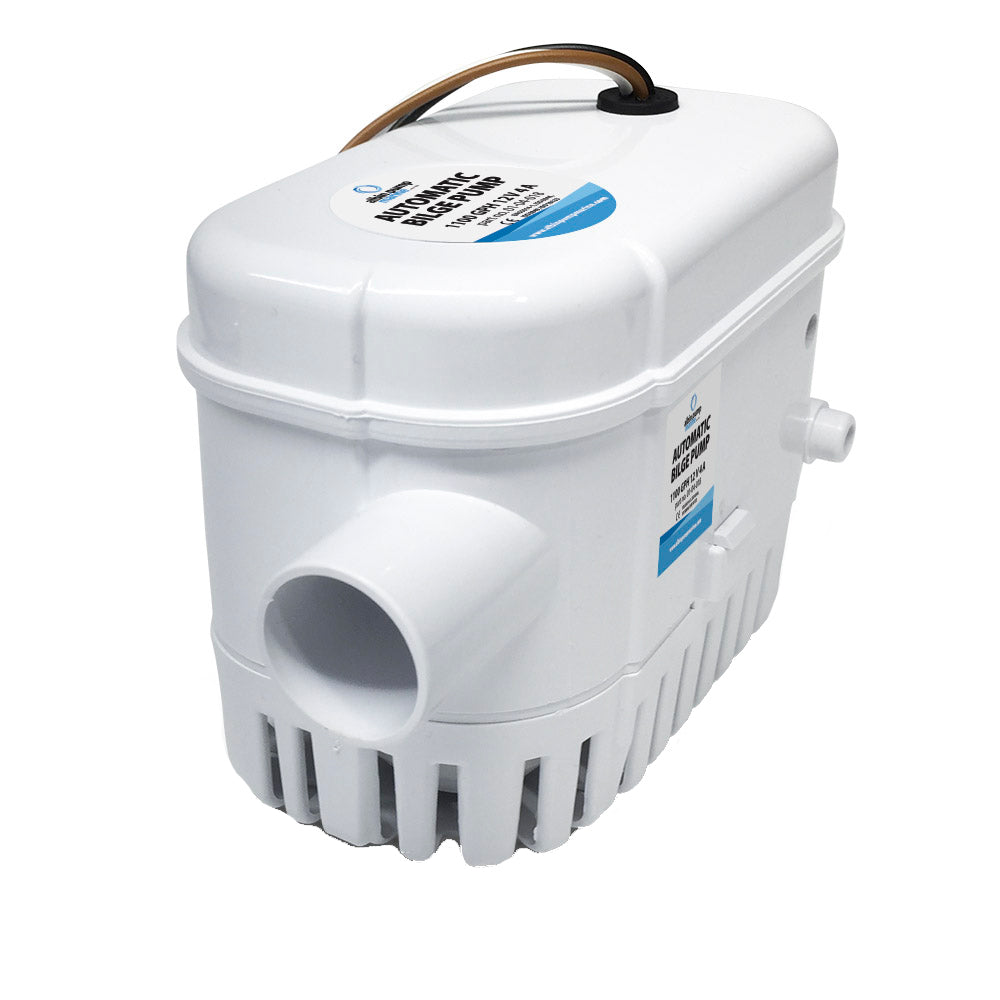

Albin Group Automatic Bilge Pump 1100 GPH - 24V for Pleasure Boats

Automatic Bilge Pump 1100 GPH - 24V

Fully automatic bilge pump 24V, automatic activation with a built in electrical level switch. Pump capacity 75 L/min (1100 GPH) and 65 L/min (1000 GPH) at 1m head. Stainless steel shaft, compact and easy to install.

Tough thermoplastic ABS housing and removable base plate with strainer integrated. Easy maintenance and low power consumption. A three wire design allows for automatic, manual or override mode.

Features:

• Automatic Submersible
• For pleasure boats from 8m (25 Ft) to 10m (30 Ft) length

Specifications:

• Weight: 0.45 kg/1 lb
• Dimensions: 151/6L x 95/3.75H x 78/3W mm/in
• straight Discharge Port: Fixed 29 mm (1,15)
• Fuse: 2,5A

*CE marked 94/25/ECC, ISO8846 Small Craft, Electromagnetic compatibility 89/336/EEC, EN51014 1993/radio disturbance

The Albin Group Automatic Bilge Pump Part Number 01-04-019 is a reliable and efficient solution for keeping your boat dry. Designed for vessels ranging from 8 meters (25 feet) to 10 meters (30 feet), this fully automatic submersible pump activates automatically when water reaches a certain level thanks to its built-in electrical level switch. With a pump capacity of 75 liters per minute (1100 gallons per hour) at 1 meter head, it effectively manages bilge water, helping prevent flooding and damage. The stainless steel shaft ensures durability and longevity, even in demanding marine environments. Its compact design makes installation straightforward, and the tough thermoplastic ABS housing provides resistance against corrosion and impact. The removable base plate with an integrated strainer simplifies maintenance, allowing you to clean or replace components quickly without hassle. The three-wire configuration offers versatility, enabling automatic operation, manual control, or override mode as needed. This pump is CE marked and complies with relevant standards such as ISO8846 for small craft, ensuring safety and performance reliability. The fixed 1.15-inch discharge port facilitates easy connection to your existing bilge piping system. Weighing just 1 pound, it is lightweight and easy to handle, making it suitable for a variety of boat sizes and configurations. Whether you're outfitting a new vessel or replacing an existing pump, the Albin Group Automatic Bilge Pump provides peace of mind with efficient, automatic water management on your boat.

Features:

• Automatic submersible pump activates when water reaches preset level

• Designed for pleasure boats from 8m (25 ft) to 10m (30 ft) in length

• High pump capacity of 75 liters per minute (1100 GPH) at 1 meter head

• Stainless steel shaft for durability and corrosion resistance

• Thermoplastic ABS housing with removable strainer for easy maintenance

• Compact and easy to install with straightforward wiring options

• Three-wire design supports automatic, manual, and override modes

• CE marked and compliant with ISO8846 small craft standards

• Fixed 29mm (1.15 inch) discharge port for secure connection

• Lightweight at 1 pound for versatile application
