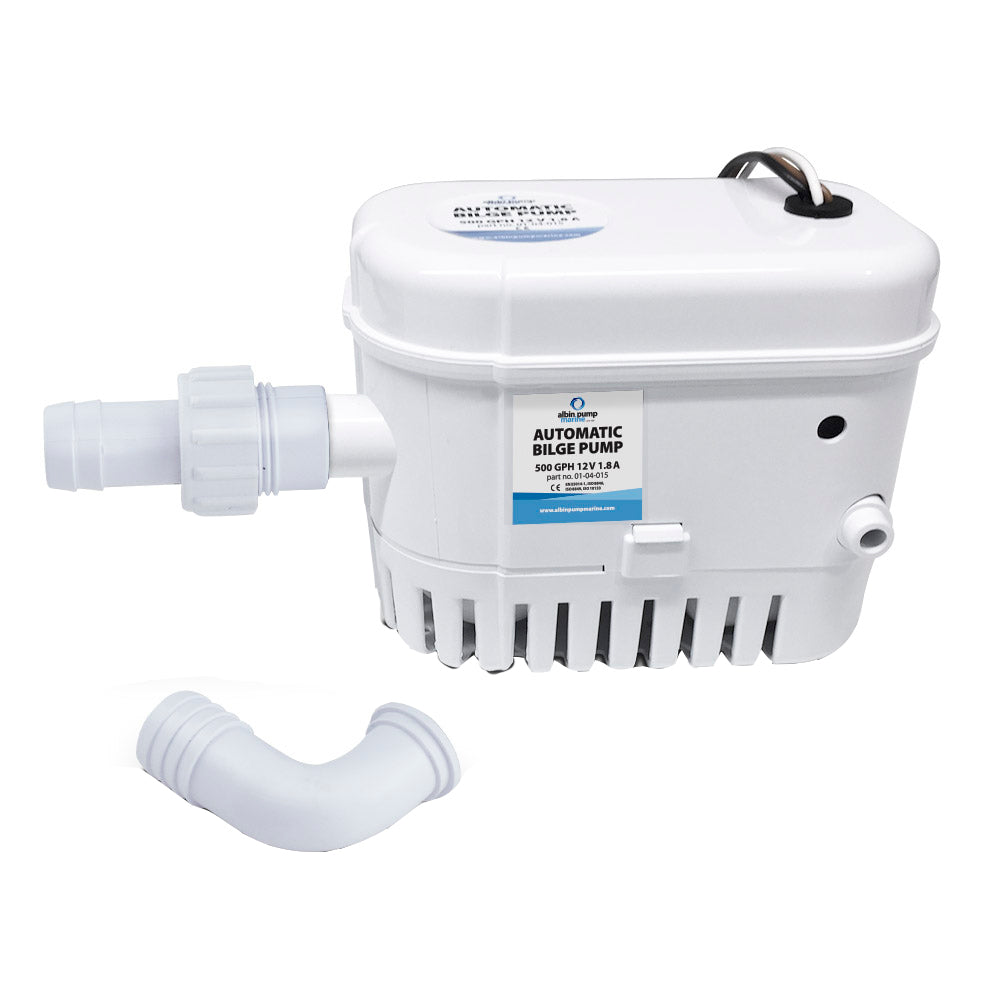

Albin Group Automatic Bilge Pump 500 GPH - 12V for Small Boats

Automatic Bilge Pump 500 GPH - 12V

Fully automatic bilge pump 12V, automatic activation with a built in electrical level switch. Pump capacity 32 L/min (500 GPH) and 25 L/min (400 GPH) at 1m head. Stainless steel shaft, compact and easy to install.

Tough thermoplastic ABS housing and removable base plate with strainer integrated. Easy maintenance and low power consumption. A three wire design allows for automatic, manual or override mode.

Features:

• Automatic Submersible
• Includes 19 mm (3/4) straight and elbow detachable discharge ports
• For pleasure boats up to 6m (20 Ft) length

Specifications:

• Weight: 0.45 kg/1 lb
• Dimensions: 151/6L x 95/3.75H x 78/3W mm/in
• Fuse: 1,8A

*CE marked 94/25/ECC, ISO8846 Small Craft, Electromagnetic compatibility 89/336/EEC, EN51014 1993/radio disturbance

The Albin Group Automatic Bilge Pump Model 01-04-015 is designed for reliable water management on pleasure boats up to 20 feet in length. This fully automatic, 12V submersible pump features a built-in electrical level switch that activates the pump when water reaches a certain level, ensuring your boat remains dry without manual intervention. With a capacity of 32 liters per minute (500 gallons per hour) at a 1 meter head height, it effectively clears water from bilge areas, reducing the risk of flooding and water damage. The pump's stainless steel shaft ensures durability and longevity, while the tough thermoplastic ABS housing offers resistance to harsh marine environments. Its compact size and easy installation make it an ideal choice for boat owners seeking a dependable bilge pump that combines performance with simplicity of maintenance. The integrated removable strainer and dual discharge ports (straight and elbow) facilitate flexible installation options, enhancing versatility. The three-wire design provides automatic operation, manual control, or override mode, giving users full command over the bilge pumping process. This pump is engineered to meet strict standards, including CE marking and compliance with ISO8846 Small Craft regulations, ensuring safety and electromagnetic compatibility. Lightweight at approximately 0.45 kg (1 lb), it is easily handled during installation and maintenance. Whether your boat is used for leisure or fishing, the Albin Group Bilge Pump offers a robust and efficient solution for keeping your vessel dry and safe.

Features:

• Automatic submersible design activates via built-in electrical level switch

• Includes 19 mm (3/4 inch) straight and elbow detachable discharge ports for adaptable installation

• Suitable for pleasure boats up to 20 feet in length

• Constructed with durable stainless steel shaft and tough thermoplastic ABS housing for marine environments

• Low power consumption for energy efficiency

• Removable base plate with integrated strainer simplifies maintenance

• Three-wire control system allows automatic, manual, or override operation modes

• Compact and lightweight design for easy installation and handling

• Conforms to CE and ISO8846 standards for safety and electromagnetic compatibility
