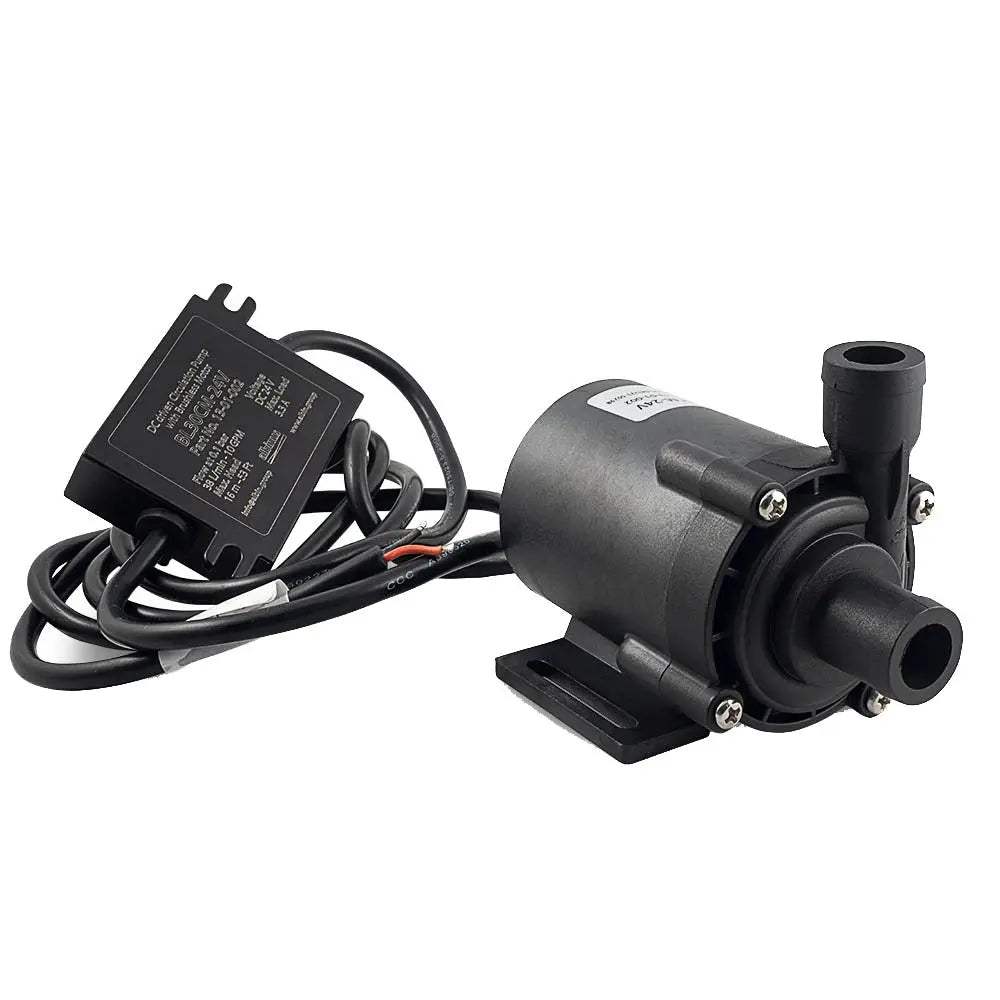

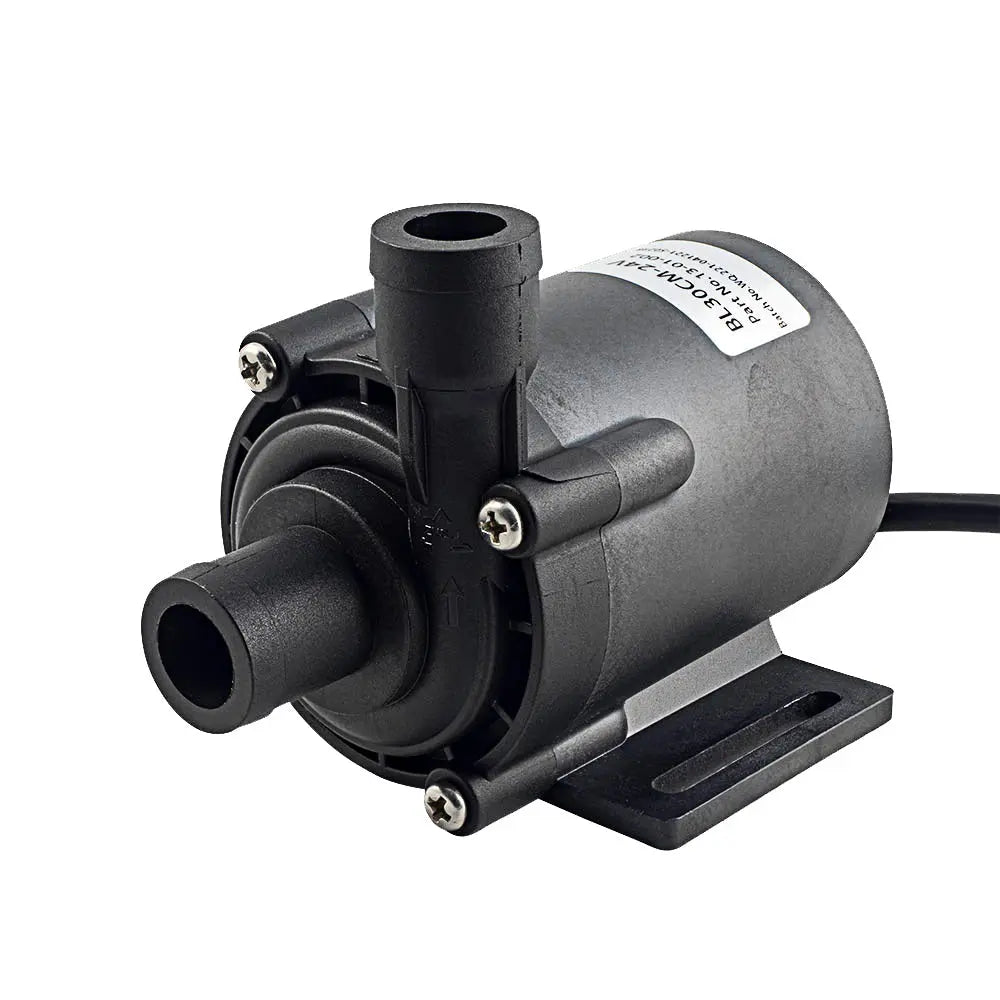

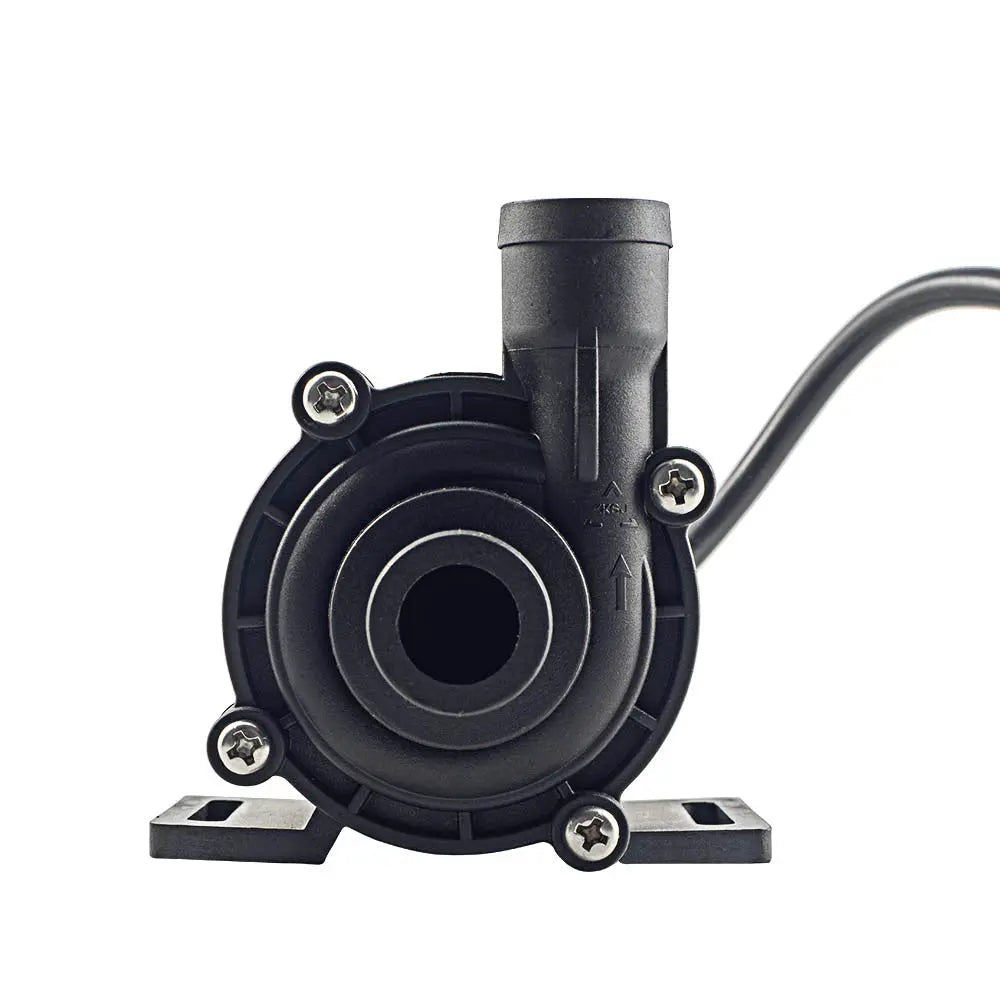

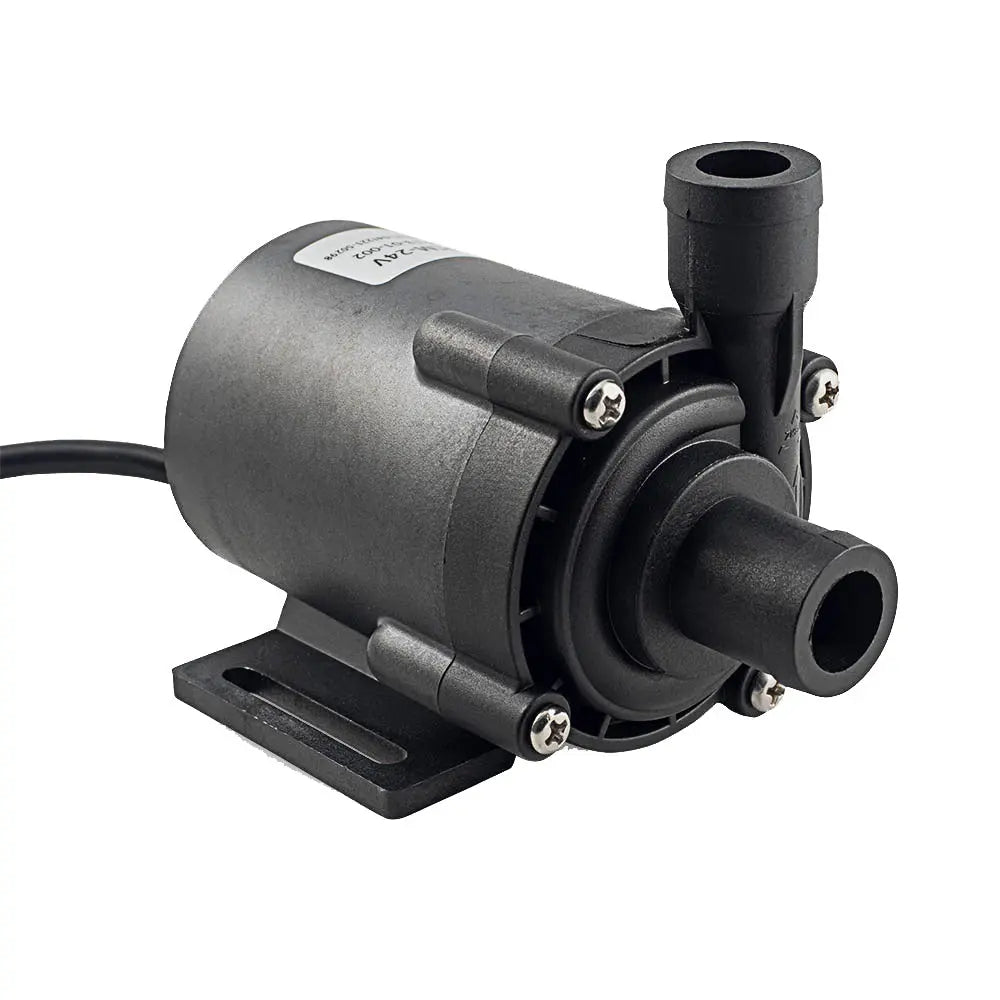

Albin Group DC Driven Circulation Pump with Brushless Motor - BL30CM 12V for Water and Antifreeze Systems

DC Driven Circulation Pump with Brushless Motor - BL30CM 12V

This circulation pump is for the circulation of water/antifreeze in heating or cooling systems on boats, buses, motor homes, and commercial vehicles. There are many advantages to this pump, such as its small size with high efficiency, maintenance-free, ceramic shaft, carbon fiber sleeve, completely waterproof (IP68), brushless DC control, and long service life.

Features:

• Motor brush-less magnetic isolated design
• For continuous duty
• Life span: 20,000 hours
• Materials of pump housing: ABS, PES/SPS/PA66
• Motor IP classification: IP 68
• Noise class: 35dB
• The max liquid temperature for continuous Duty is 80C Intermittent is 100C

Specifications:

• Port size: (inch) 3/4" / (mm) 20
• Weight: 0.48 kg
• Capacity at 0.1 bar: 32 l/min
• Capacity at 0.25 bar: 28 l/min
• Max load: 4.5A
• Max power consumption: 55W

*Includes pump and motor

The Albin Group BL30CM 12V circulation pump is designed for efficient water and antifreeze circulation in heating or cooling systems across boats, buses, motor homes, and commercial vehicles. This compact pump offers high performance with a maintenance-free brushless DC motor and a ceramic shaft, ensuring longevity and reliable operation. Its waterproof IP68 rating makes it suitable for harsh environments, while the lightweight design simplifies installation and integration into existing systems. The pump's materials—ABS, PES, SPS, and PA66—are chosen for durability and resistance to chemical and environmental stresses. Operating quietly at only 35 decibels, it provides efficient circulation without noise disruption, making it ideal for both residential and mobile applications. The pump supports continuous duty operation with a lifespan of approximately 20,000 hours, making it a cost-effective choice for long-term use. It features a port size of 3/4 inch (20 mm) with a maximum flow rate of 32 liters per minute at 0.1 bar pressure, and up to 28 liters per minute at 0.25 bar. The maximum power consumption is 55 watts, with a maximum load current of 4.5 amps, ensuring efficient energy use during operation. The pump is capable of handling liquid temperatures up to 80°C continuously and up to 100°C intermittently, suitable for most heating and cooling fluid applications. This product includes both the pump and motor, providing a complete solution for your circulation needs, backed by the trusted Albin Group brand. Its compact size, robust construction, and energy-efficient operation make the BL30CM an optimal choice for vehicle and mobile system installations where space and reliability are critical.

Features:

• Motor brushless magnetic isolated design for durability and efficiency

• Suitable for continuous duty operation

• Long service life of approximately 20,000 hours

• Constructed with corrosion-resistant materials including ABS, PES, SPS, and PA66

• Waterproof IP68 rating for use in challenging environments

• Quiet operation at 35dB for minimal noise disturbance

• Supports liquid temperatures up to 80°C continuously and 100°C intermittently

• Port size of 3/4 inch (20 mm) for versatile connections

• Maximum flow rate of 32 liters per minute at 0.1 bar pressure

• Maximum power consumption of 55 watts with a load current of 4.5A
