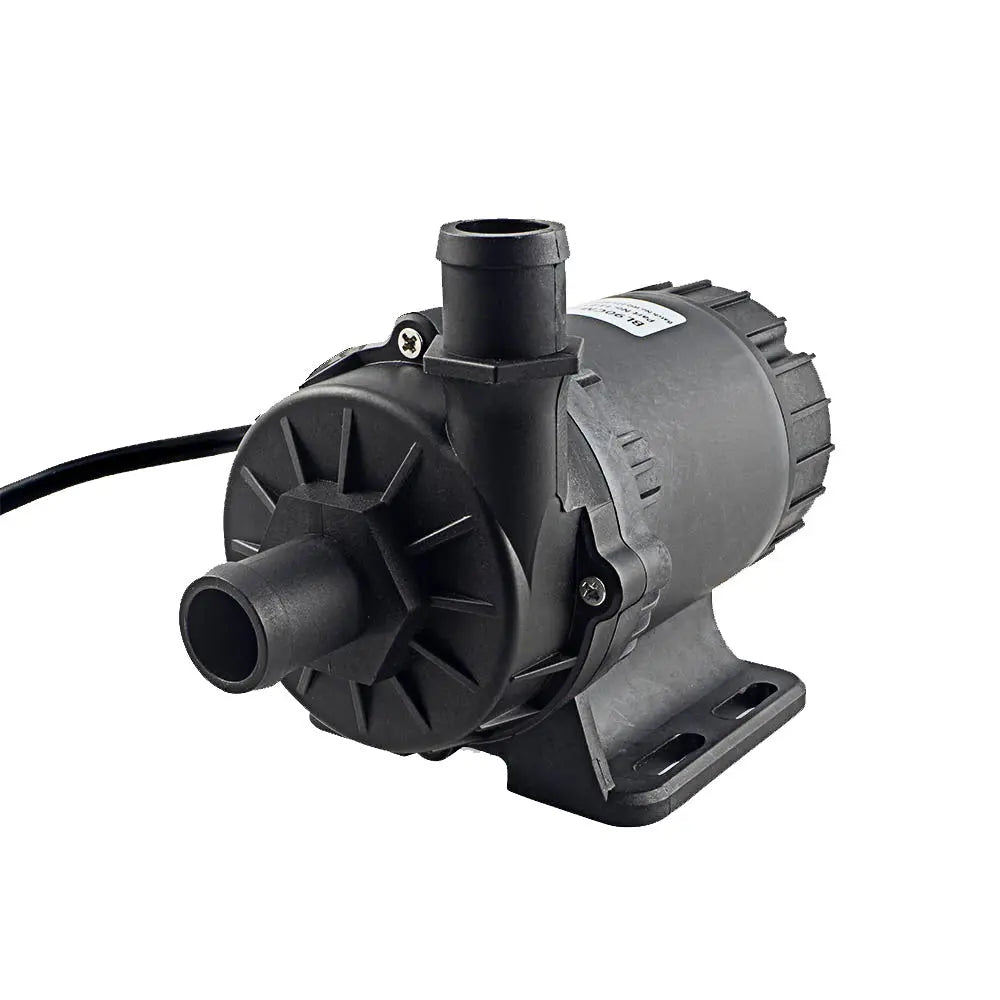

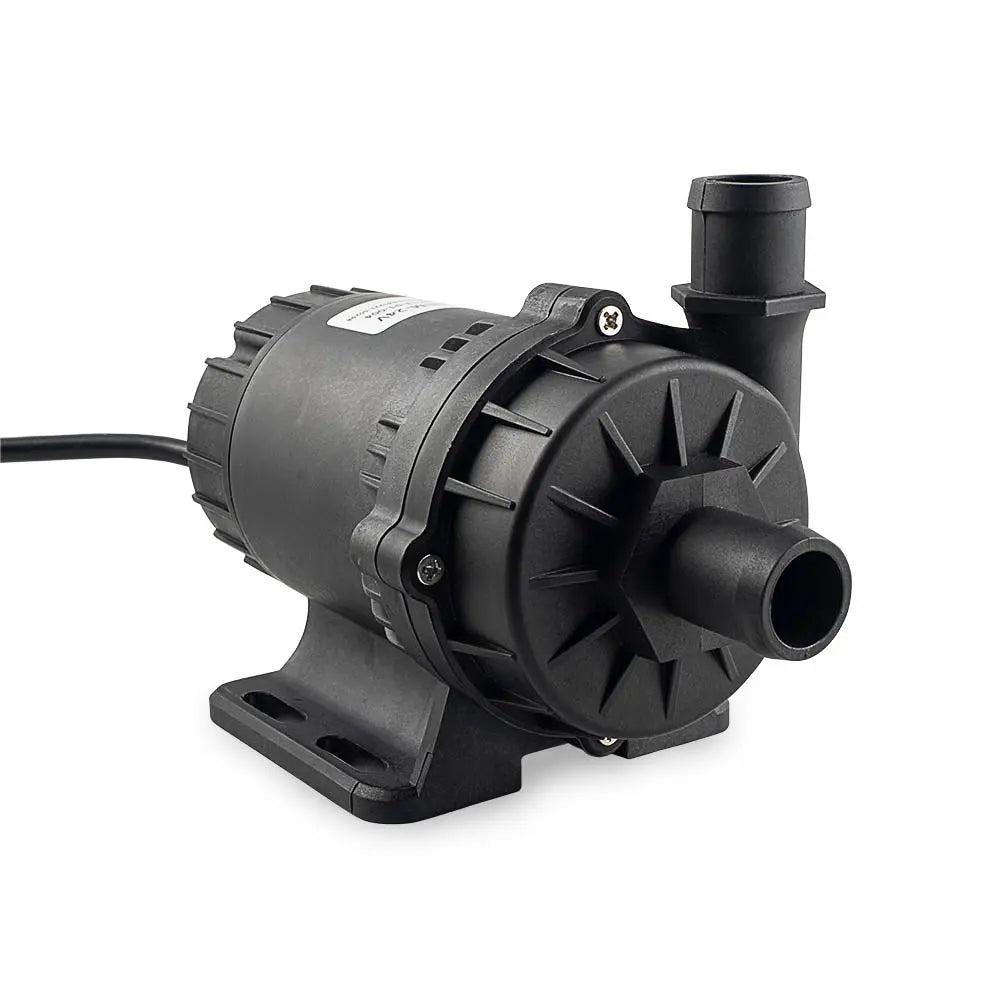

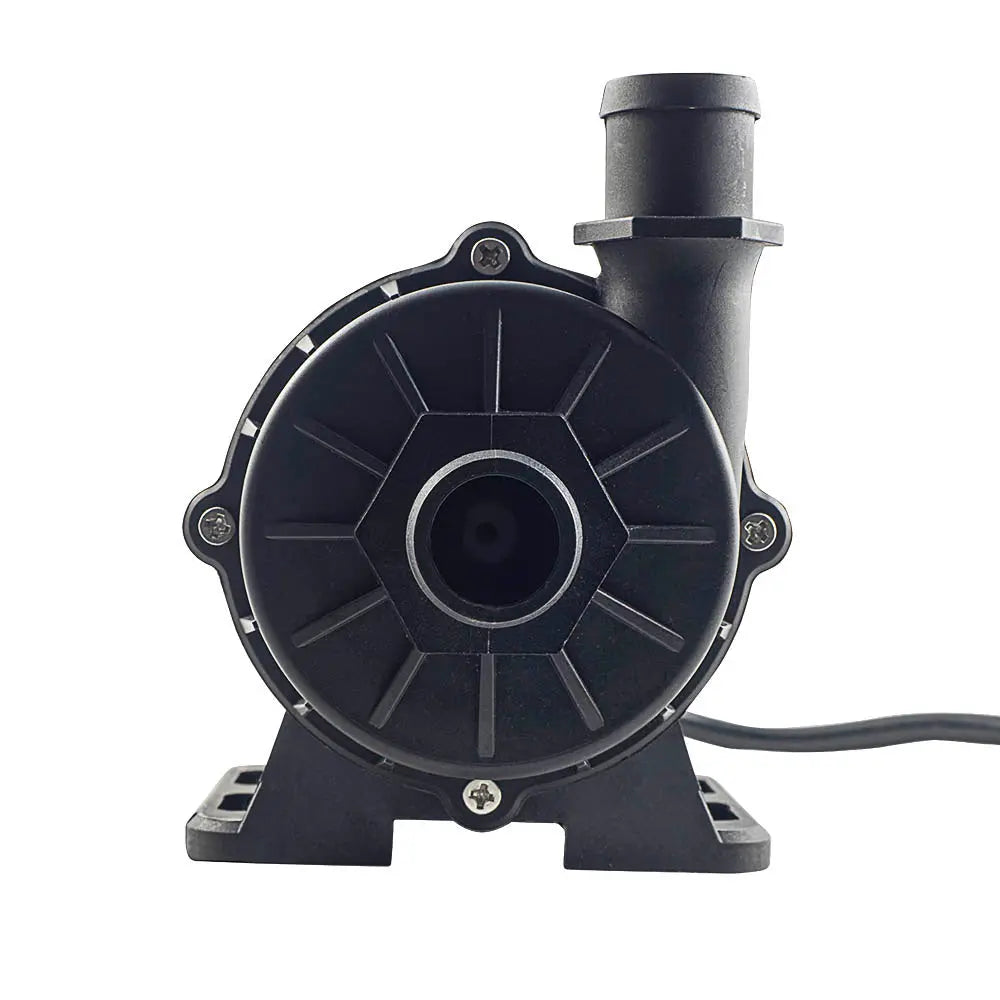

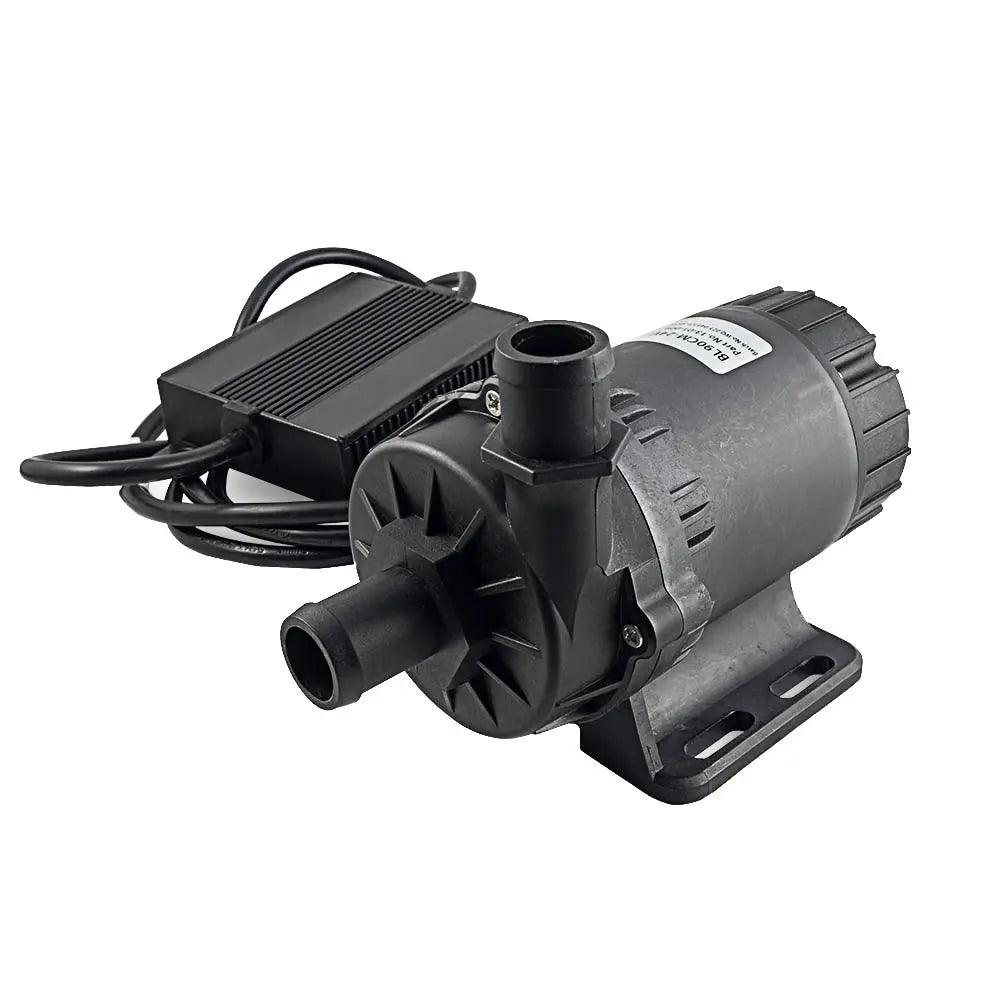

Albin Group DC Driven Circulation Pump with Brushless Motor - Model BL90CM 12V

DC Driven Circulation Pump with Brushless Motor - BL90CM 12V

DC Driven Circulation Pump With Brushless Motor - BL90CM 12VThis circulation pump is for the circulation of water/antifreeze in heating or cooling systems on boats, buses, motor homes, and commercial vehicles. There are many advantages to this pump, such as its small size with high efficiency, maintenance-free, ceramic shaft, carbon fiber sleeve, completely waterproof (IP68), brushless DC control, and long service life.

Features:

• Motor brush-less magnetic isolated design
• For continuous duty
• Life span: 20,000 hours
• Materials of pump housing: ABS, PES/SPS7PA66
• Motor IP classification: IP 68
• Noise class: 35dB
• The max liquid temperature for continuous Duty is 80C Intermittent is 100C

Specifications:

• Port size: (inch) 3/4" / (mm) 20
• Weight: 0.89 kg
• Capacity at 0.1 bar: 51 l/min
• Capacity at 0.25 bar: 47 l/min
• Max load: 6.6 A
• Max power consumption: 80 W

*Includes pump and motor

The Albin Group BL90CM 12V DC Driven Circulation Pump is designed for efficient water and antifreeze circulation in heating and cooling systems on boats, RVs, buses, and commercial vehicles. Its compact size combined with high efficiency makes it suitable for space-constrained environments while providing reliable operation. The pump features a maintenance-free brushless motor with a ceramic shaft and carbon fiber sleeve, ensuring durability and long service life. Its waterproof (IP68) construction allows it to operate reliably in harsh conditions, making it an ideal choice for mobile and marine applications. The BL90CM is engineered for continuous duty, offering a lifespan of approximately 20,000 hours, and operates quietly with a noise level of just 35dB, minimizing disruption during operation.

Features:

• Motor brushless magnetic isolated design for durability and efficiency

• Designed for continuous operation in demanding environments

• Long service life of approximately 20,000 hours

• Constructed with durable ABS and PES/SPS7PA66 materials for pump housing

• Waterproof IP68 rating for reliable operation in wet conditions

• Operates quietly at 35dB, suitable for noise-sensitive environments

• Maximum liquid temperature for continuous duty is 80°C, intermittent up to 100°C

• Port size of 3/4 inch (20mm) ensures compatibility with standard fittings

• Maximum power consumption of 80W and load of 6.6A ensures efficient operation
