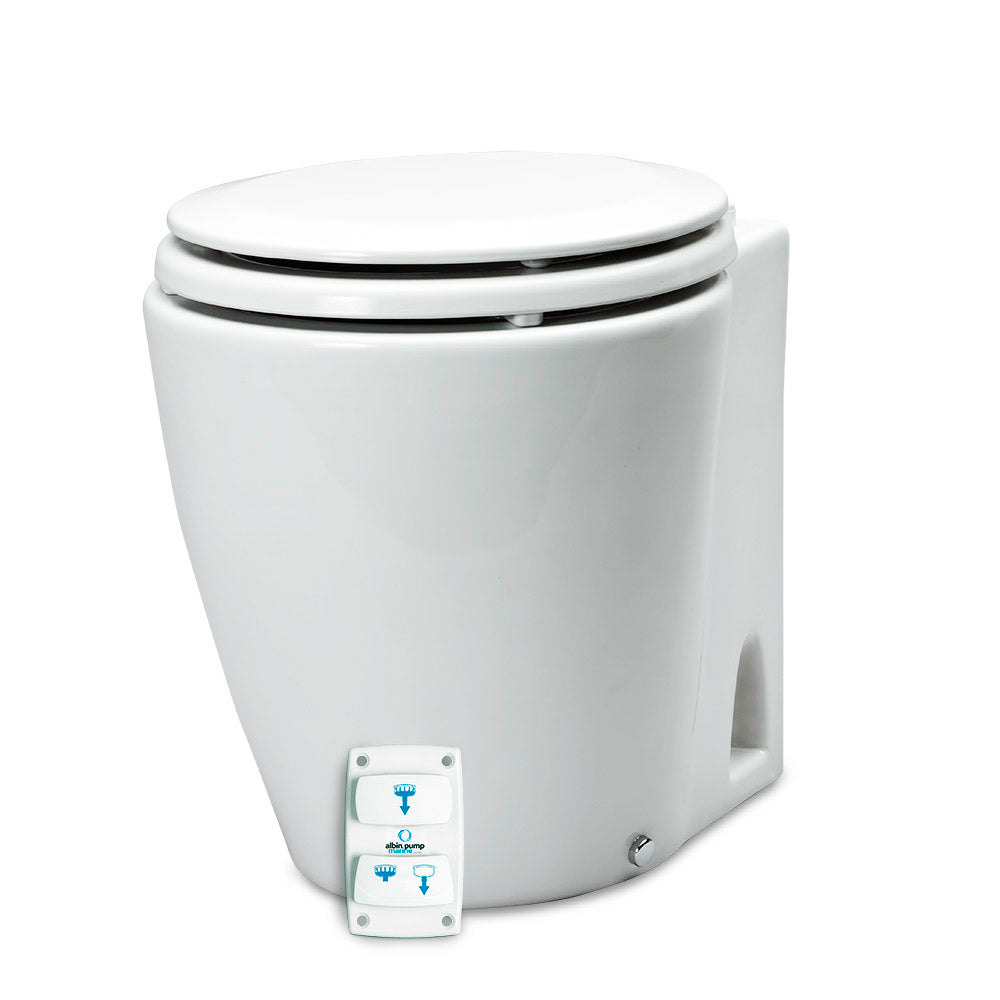

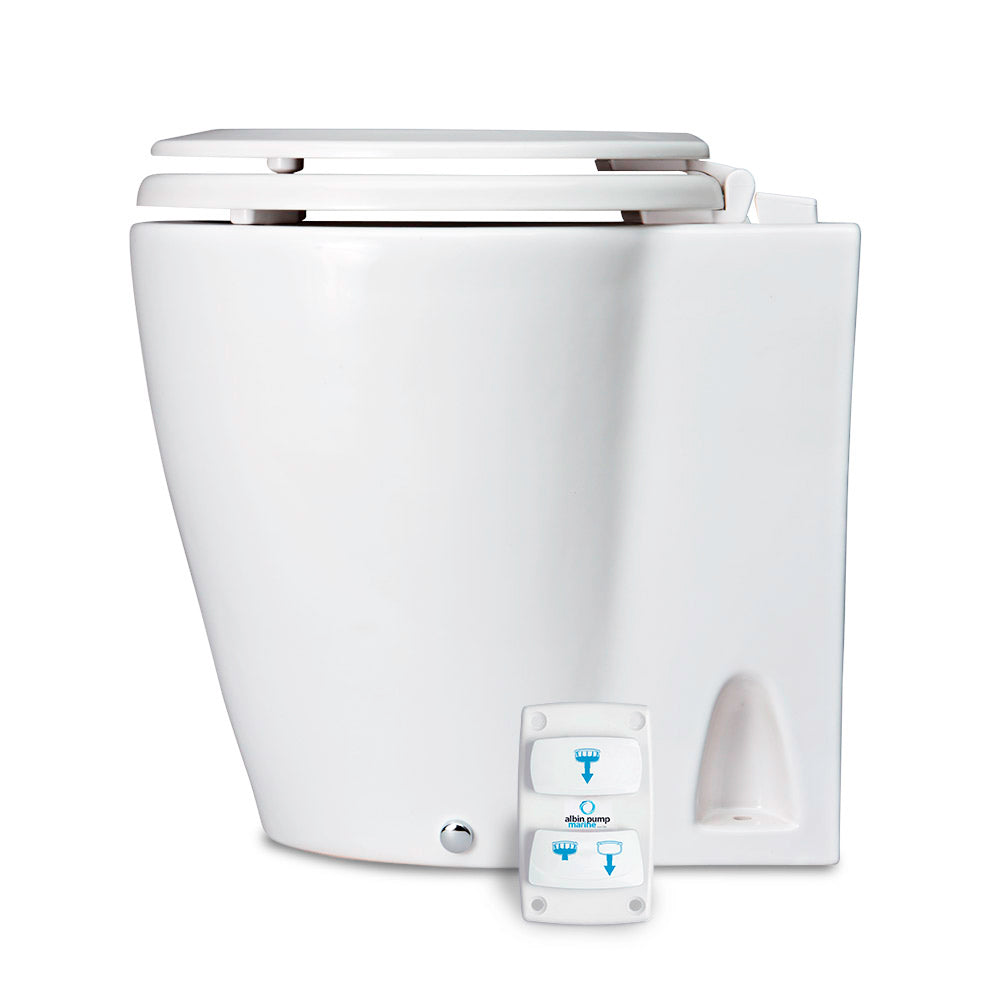

Albin Group Design Marine Toilet Silent Electric 12V - Compact and Low Water Consumption

Design Marine Toilet Silent Electric - 12V

Design silent electric compact toilet with seperated flushing and waste disposal cycle. Including electronic 3 function control panel, before use, after use and short use plus a trimmer to regulate the flow rate.

Water is from existing pressurized water system onboard with 12V solenoid valve (PN 07-66-030) or 12V flush pump (PN 07-66-032)- not included!

Port conections inlet 19mm (3/4), outlet 25mm or 38mm (1 or 1,5). Silent operation and low water consumption.

Easy to clean white ceramic design bowl and white wooden seat. Robust, stable and compact with a preferred appearance like a home toilet.

Specifications:

• Weight: 15.2 kg/39 lbs
• Dimensions: 405/15.9L x 410/16.14H x 340/13.4W mm/in
• Type: Design Dual Operation Electric

*Certification: CE marked 94/25/ECC, ISO8846 Small Craft, Electromagnetic compatibility 89/336/EEC, EN51014 1993/radio disturbance

The Albin Group Design Marine Toilet Silent Electric (Part No. 07-03-045) offers a sleek, compact solution for onboard sanitation with a modern, home-like appearance. Its white ceramic bowl and white wooden seat provide an easy-to-clean surface that combines durability with aesthetic appeal. This electric marine toilet features a separated flushing and waste disposal cycle, enhancing hygiene and operational efficiency. Equipped with an electronic three-function control panel, it allows easy management before use, after use, and for short flushes, with an adjustable flow rate for optimal water use. The toilet connects seamlessly to existing pressurized water systems aboard, utilizing a 12V solenoid valve or flush pump (both not included). It supports inlet port connections of 3/4 inch (19mm) and outlet options of 1 inch (25mm) or 1.5 inches (38mm), making installation flexible across various vessel configurations. The design emphasizes silent operation and low water consumption, ideal for conserving resources on boats and yachts. Built with robust materials, the toilet weighs approximately 33.5 pounds and measures around 16 inches in length, 16 inches in height, and 13 inches in width, ensuring a stable and space-efficient fit in confined spaces. Certified under CE 94/25/ECC, ISO8846 for small craft, and compliant with electromagnetic compatibility standards, this marine toilet meets rigorous safety and environmental standards. Its compact, stylish, and efficient design makes it a preferred choice for marine environments seeking a home-like comfort combined with practical functionality.

Features:

• Silent electric operation for quiet onboard use

• Separated flushing and waste cycles for enhanced hygiene

• Electronic three-function control panel for versatile operation

• Adjustable flow rate with included trimming for water efficiency

• Compatible with existing pressurized water systems using 12V solenoid valve or flush pump (not included)

• Supports inlet and outlet connection sizes of 3/4 inch (19mm), 1 inch (25mm), and 1.5 inches (38mm)

• Easy-to-clean white ceramic bowl and wooden seat for durability and aesthetics

• Compact and stable design suitable for confined marine spaces

• Certified to meet CE, ISO8846, and electromagnetic compatibility standards

• Lightweight at approximately 33.5 pounds for ease of installation and handling
