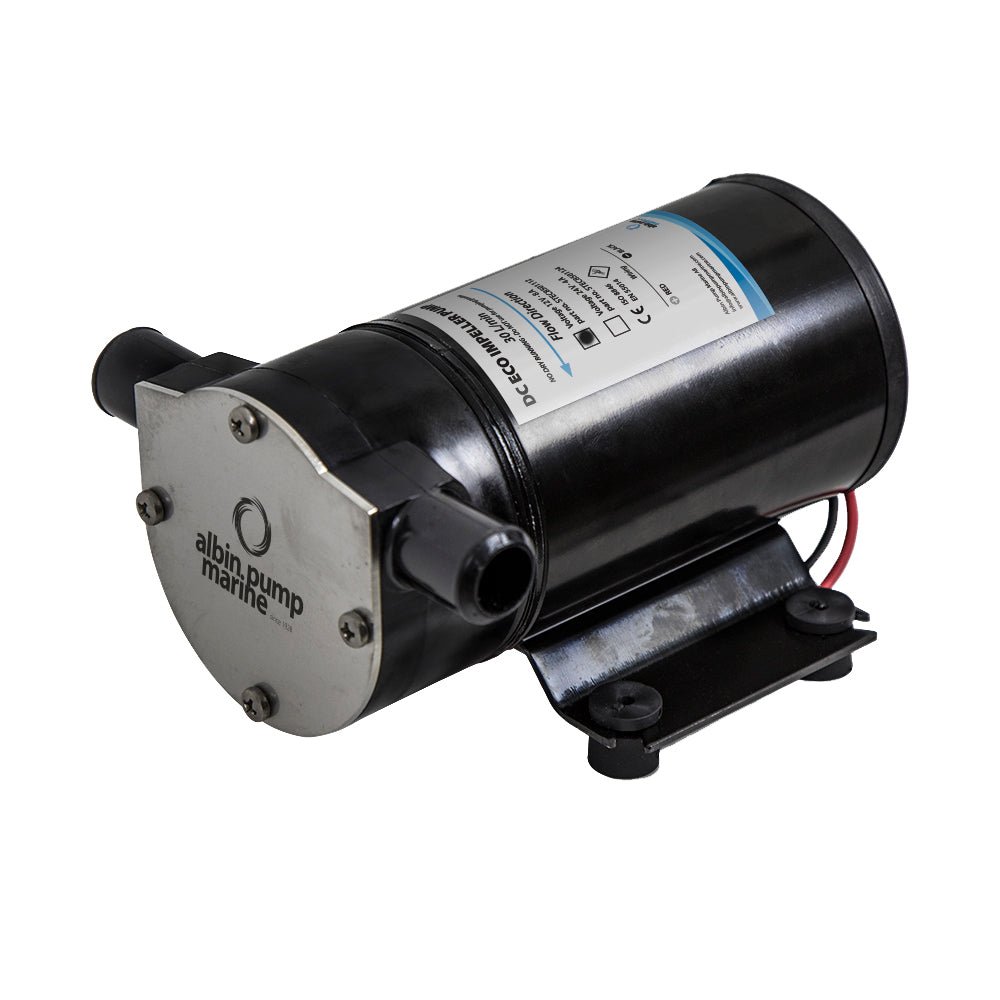

Albin Group General Purpose FIP Pump F2 - 12V, 30 L/min Capacity

General Purpose Pump FIP F2 - 12V

DC 12V F2 size FIP pump with capacity 30 L/min (8 GMP). Used for pumping water, oils and chemicals.

Features:

• Pump body in thermo polymer, stainless steel shaft and high quality impeller
• Self priming up to 3m vertical lift
• Reversible flow direction by changing polarity
• Interchangeable with Johnson Pump 10-24886-01

Specifications:

• Weight: 0.6 kg/1 lb
• Dimensions: 160/6.3L x 90/3.5H x 120/4.7W mm/in
• Port Connection: 19mm (1/2)
• Fuse: 8A

*CE marked 94/25/ECC, ISO8846 Small Craft, Electromagnetic compatibility 89/336/EEC, EN51014 1993/radio disturbance

The Albin Group FIP Pump F2 is a versatile 12V DC pump designed for efficient fluid transfer of water, oils, and chemicals. Constructed with a durable thermo polymer pump body, a stainless steel shaft, and a high-quality impeller, this pump ensures reliable performance across various applications. Its self-priming feature allows for vertical lifts up to 3 meters, making it suitable for installations with limited space or specific elevation requirements. The reversible flow direction enables flexibility by simply changing the polarity, simplifying system adjustments and maintenance. This pump is interchangeably compatible with Johnson Pump model 10-24886-01, providing ease of integration into existing systems. Compact and lightweight, it weighs approximately 1.3 pounds and measures roughly 6.3 inches in length, 3.5 inches in height, and 4.7 inches in width, with a ½-inch port connection for standard fittings. The pump operates on an 8-amp fuse and meets multiple safety and electromagnetic compatibility standards, including CE marking and ISO8846 certification for small craft. Its robust construction and versatile features make it an ideal choice for marine, industrial, or mobile applications where reliable fluid transfer is essential. Whether used for water circulation, chemical dosing, or oil transfer, the Albin Group FIP Pump F2 offers dependable performance with easy installation and operational flexibility.

Features:

• Pump body in thermo polymer, stainless steel shaft, and high-quality impeller for durability

• Self-priming capability up to 3 meters for versatile installation options

• Reversible flow direction by changing polarity for added system flexibility

• Interchangeable with Johnson Pump 10-24886-01 for compatibility

• Compact and lightweight design for easy handling and installation

• Standard port connection of ½ inch for convenient fittings

• Operates with an 8A fuse, meeting safety standards

• CE marked and compliant with ISO8846 for small craft and electromagnetic compatibility
