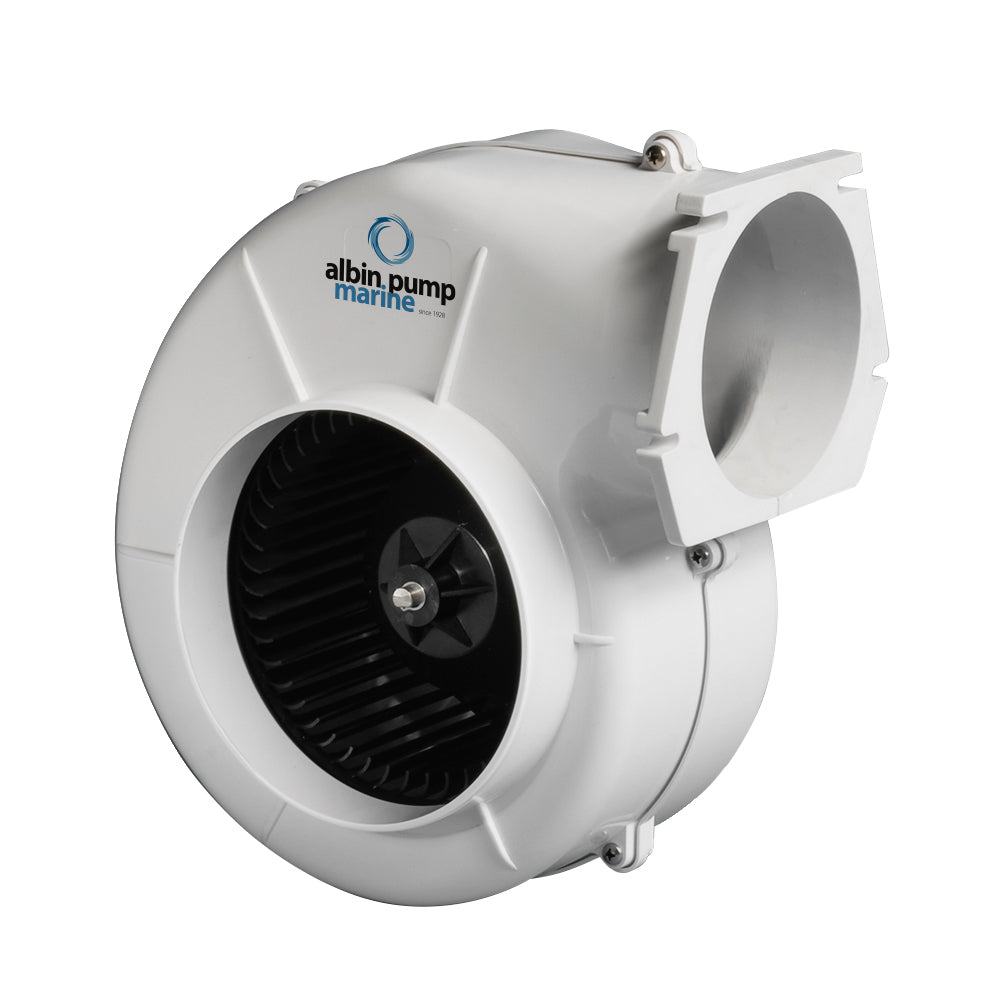

Albin Group Marine Air Blower 500 Flange - 24V, 324 CFM

Air Blower 500 Flange - 24V

4 flange mounted marine ventilation 24V radial blower with capacity 500 m3 per h, 324 CFM. Inlet 100mm, outlet 103mm. Body in hermoplastic PA6 high durable white Nylon with integrated blower motor.

Features:

• Weight: 2.4 kg/5 lbs
• Dimensions: 290/11.4L x 257/10.12H x 150/5.9W mm/in
• Type: 4" Flange
• 6A fuse
• Interchangeable with Johnson Pump 80-47417-02

*Certification: CE marked ISO 9097:1991 Marine (small craft electrical fans), ISO8846 1990 (ignition protection), ISO 10133 2000 (electrical systems), EN55014-1 2006 (2004/108EC)

The Albin Group Marine Air Blower 500 Flange - 24V is a high-performance radial blower designed for marine ventilation applications. This robust unit features a 4-inch flange inlet and outlet, providing an airflow capacity of 500 cubic meters per hour or approximately 324 cubic feet per minute. Its body is constructed from durable hermoplastic PA6 nylon, ensuring resistance to harsh marine environments, while the integrated blower motor enhances reliability and ease of installation. This blower is ideal for small craft ventilation systems requiring a compact yet powerful air movement solution. It is interchangeable with the Johnson Pump 80-47417-02, offering flexibility for maintenance and upgrades. Certified under CE standards and compliant with ISO 9097:1991, ISO 8846 1990, ISO 10133 2000, and EN55014-1 2006, this blower meets rigorous safety and performance benchmarks for marine use. Weighing approximately 5 pounds, it measures roughly 11.4 inches in length, 10.12 inches in height, and 5.9 inches in width, making it suitable for space-constrained environments. The unit features a 6A fuse for protection and is designed to operate efficiently at 24 volts DC, ensuring consistent airflow in demanding marine conditions. Whether replacing an existing blower or installing a new ventilation system, the Albin Group Marine Air Blower 500 Flange - 24V offers a reliable, durable, and high-capacity solution for maritime applications.

Features:

• Airflow capacity: 500 cubic meters per hour (324 CFM)

• Inlet and outlet: 100mm and 103mm flange respectively

• Constructed from durable hermoplastic PA6 nylon

• Integrated blower motor for streamlined installation

• Includes 6A fuse for safety protection

• Interchangeable with Johnson Pump 80-47417-02

• Certified CE marked and compliant with multiple ISO standards

• Compact design suitable for space-constrained marine environments
