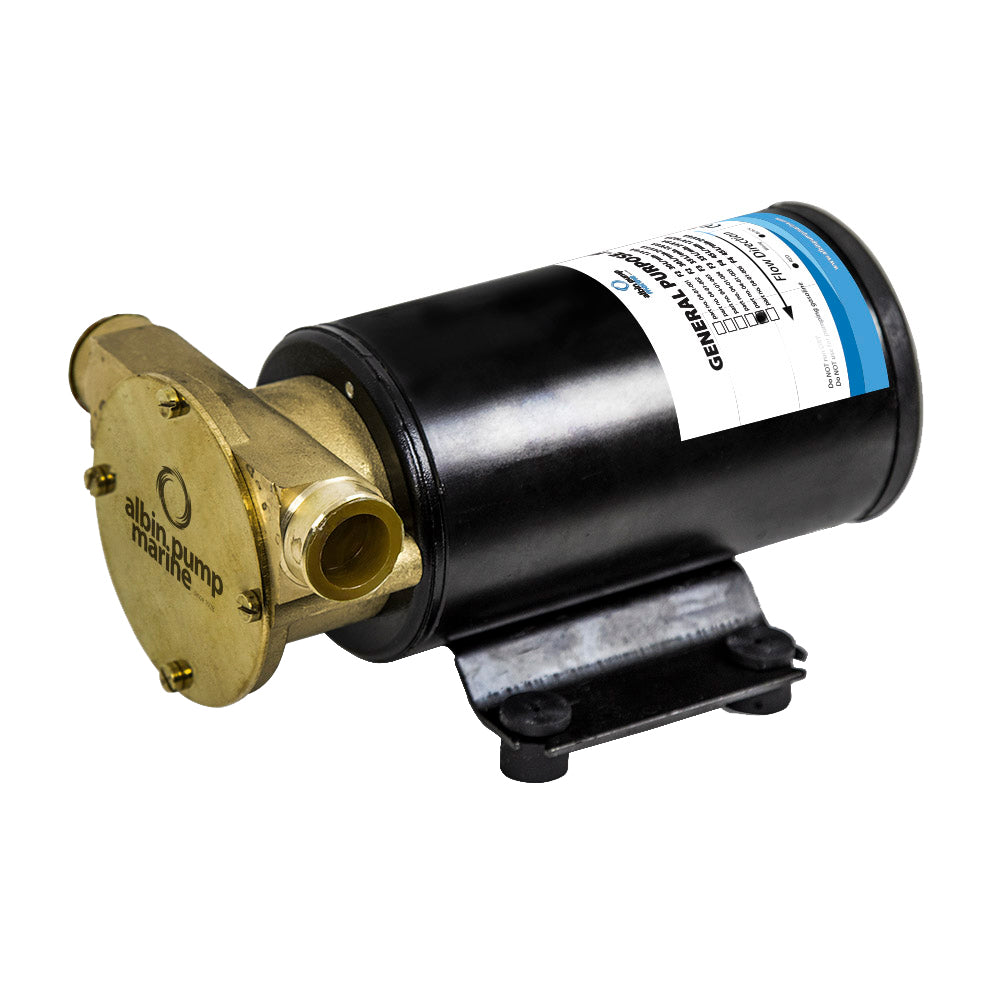

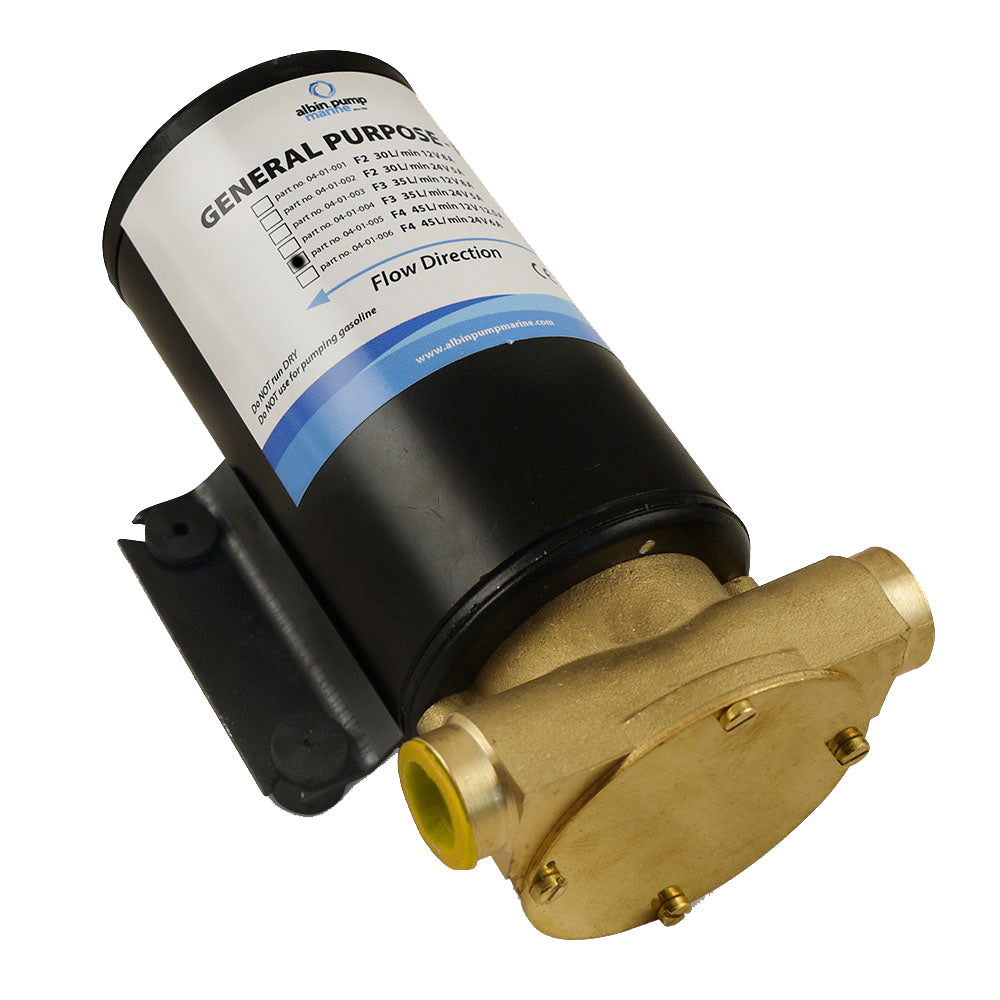

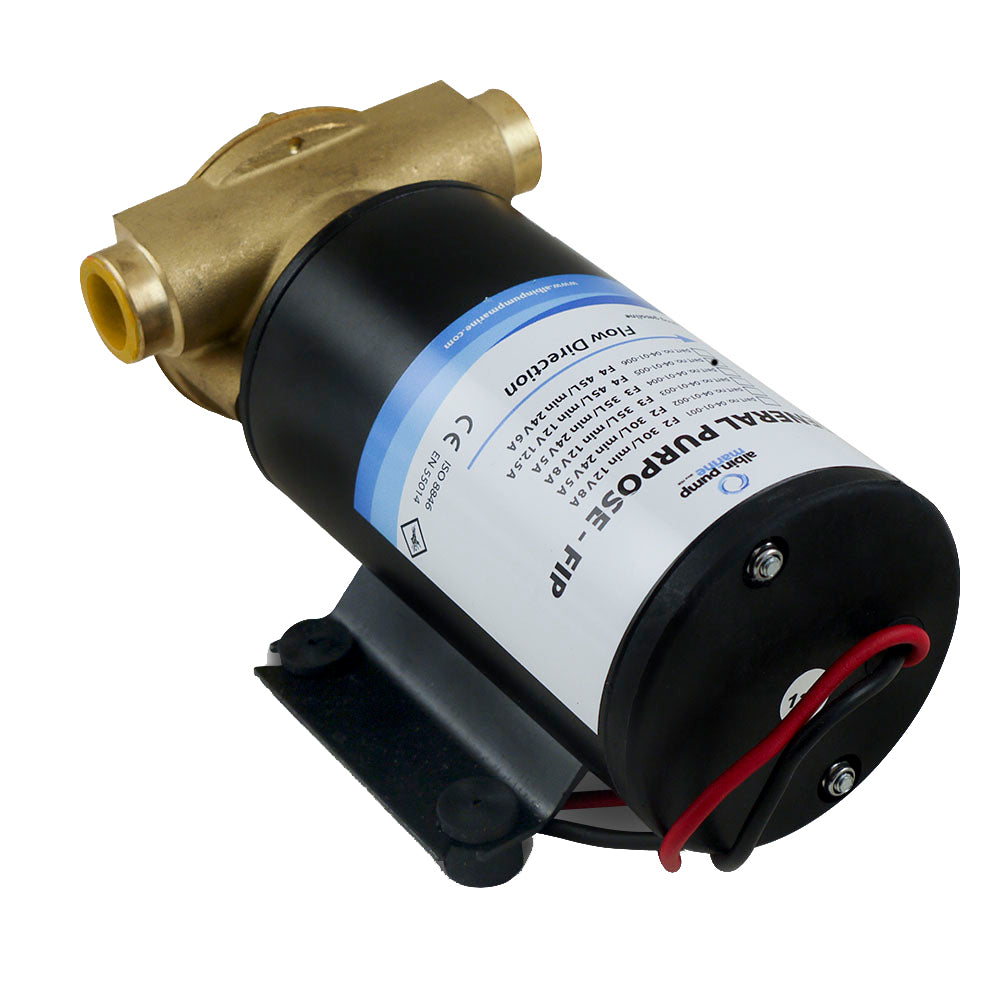

Albin Group Marine General Purpose Pump FIP F4 - 24V - 12 GPM

General Purpose Pump FIP F4 - 24V - 12 GPM

DC 24V F4 size FIP pump with capacity 45 L/min (12 GMP). Used for pumping water, oils and chemicals.

Features:

• Pump body in brass, stainless steel shaft and high quality impeller
• Reversible flow direction
• Self priming up to 5m vertical lift
• Interchangeable with Johnson Pump 10-24689-02
• Specifications:
• Weight: 1 kg/2 lbs
• Dimensions: 180/7L x 90/3.5H x 120/4.7W mm/in
• Port Connections: 19mm (1/2)
  • Type: Reversible flow direction by changing polarity
• Fuse: 6A

*Certification: CE marked 94/25/ECC, ISO8846 Small Craft, Electromagnetic compatibility 89/336/EEC, EN51014 1993/radio disturbance

The Albin Group Marine General Purpose Pump FIP F4 is a versatile 24V DC pump designed for reliable fluid transfer in marine and industrial applications. Capable of handling water, oils, and chemicals, this pump delivers a flow rate of up to 12 gallons per minute (GPM) or 45 liters per minute (L/min). Its robust construction features a brass pump body, a stainless steel shaft, and a high-quality impeller, ensuring durability and efficient operation even in demanding environments. The pump's reversible flow direction, achieved by changing polarity, offers added flexibility for various system configurations. Additionally, it is self-priming up to 5 meters (about 16.4 feet), enabling quick startup and reliable performance without extensive priming procedures. This pump is interchangeably compatible with Johnson Pump 10-24689-02, making it a versatile choice for replacement or upgrade needs. It weighs approximately 2 pounds and is compact enough for easy integration into existing systems, with port connections measuring 1/2 inch (19mm). The FIP connection type and fuse rating of 6A provide safe and efficient operation. Certified under CE 94/25/ECC, ISO8846 Small Craft, and electromagnetic compatibility standards, the pump meets rigorous safety and quality requirements. Its compact dimensions make it suitable for space-constrained applications without sacrificing performance or durability. Whether for water transfer, oil circulation, or chemical processing, the Albin Group Marine General Purpose Pump FIP F4 offers a reliable, high-quality solution for professional and recreational marine use, as well as industrial applications requiring dependable fluid handling.

Features:

• Pump body in durable brass with stainless steel shaft and high-quality impeller for long-lasting performance

• Reversible flow direction allows for flexible system configuration by changing polarity

• Self-priming up to 5 meters (16.4 feet) for quick startup and reliable operation

• Interchangeable with Johnson Pump 10-24689-02 for versatile replacement options

• Compact design with 1/2 inch (19mm) port connections suitable for various applications

• Rated fuse of 6A ensures safe operation under typical load conditions

• Certified under CE 94/25/ECC, ISO8846 Small Craft, and electromagnetic compatibility standards for safety and compliance
