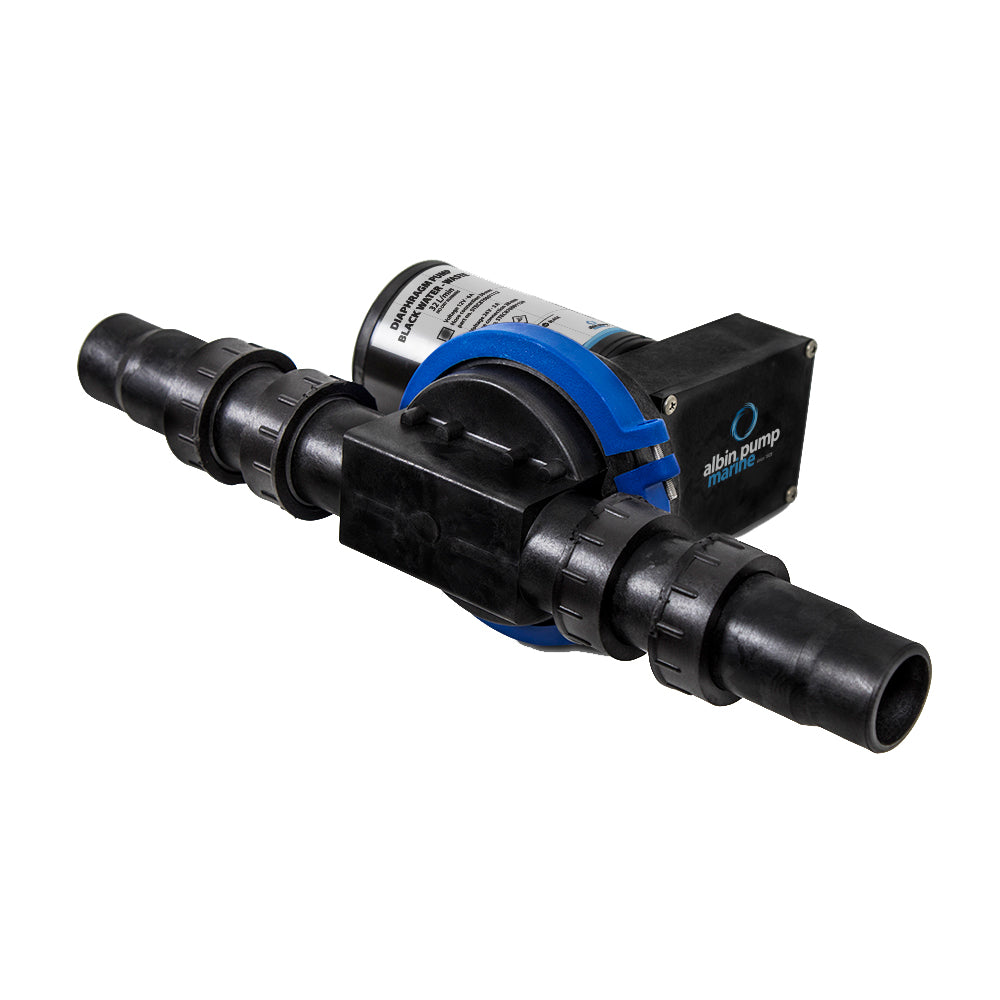

Albin Group Waste Water Diaphragm Pump 32L (8.5 GPM) - 12V for Heavy Duty Wastewater Transfer

Waste Water Diaphragm Pump 32L (8.5 GPM) - 12V

Single chamber, self priming, heavy duty diaphragm pump 12V for waste water. Black water transfer or pump out. Capacity 32 L/min (8,5 GPM), flexible installation with 360 degree rotational ports.

Quiet operation and low power consumption. Operates with no need for filter, equipped with double non-return valves.

Including 38mm (1,5) straight and 90 degree rotational connectors. 6A fuse. Interchangeable with Johnson Pump 10-13373-03.

Specifications:

• Weight: 1 kg/1.5 lbs
• Dimensions: 141/5.5L x 105/4H x 140/5.5W mm/in
• Type: Black Water

*CE marked 94/25/ECC, ISO8846 Small Craft, Electromagnetic compatibility 89/336/EEC, EN51014 1993/radio disturbance

The Albin Group Waste Water Diaphragm Pump model 03-01-003 is a reliable 12V heavy-duty pump designed for efficient waste water management. Its single-chamber, self-priming operation makes it ideal for black water transfer and pump-out applications. The pump delivers a flow rate of 32 liters per minute (8.5 gallons per minute), providing effective performance in demanding environments. Its flexible installation options are enhanced by 360-degree rotational ports, allowing for versatile setup configurations. Built with quiet operation and low power consumption in mind, this diaphragm pump is suitable for various mobile and stationary waste water handling tasks. It operates without the need for a filter and features double non-return valves to prevent backflow, ensuring secure performance during continuous operation. The package includes 1.5-inch straight and 90-degree rotational connectors, a 6A fuse for safety, and is interchangeable with Johnson Pump 10-13373-03, offering compatibility with existing systems. The pump weighs approximately 2 pounds and measures roughly 9 inches long, 4 inches high, and 5.5 inches wide, making it a compact yet powerful solution for waste water pumping needs. Certified with CE marking under directive 94/25/ECC and compliant with ISO8846 standards for small craft, this pump also meets electromagnetic compatibility requirements per 89/336/EEC and EN51014, ensuring safety and reliability in marine and industrial environments. Its robust design and adherence to quality standards make the Albin Group Waste Water Diaphragm Pump a dependable choice for professionals requiring efficient waste water transfer in mobile or fixed installations.

Features:

• Heavy-duty diaphragm pump designed for waste water transfer

• Flow rate of 32 liters per minute (8.5 GPM)

• Self-priming with single-chamber operation

• Flexible installation with 360-degree rotational ports

• Quiet operation with low power consumption

• Equipped with double non-return valves to prevent backflow

• Includes 1.5-inch straight and 90-degree rotational connectors

• Interchangeable with Johnson Pump 10-13373-03

• Lightweight at approximately 2 pounds

• Certified for safety and electromagnetic compatibility
