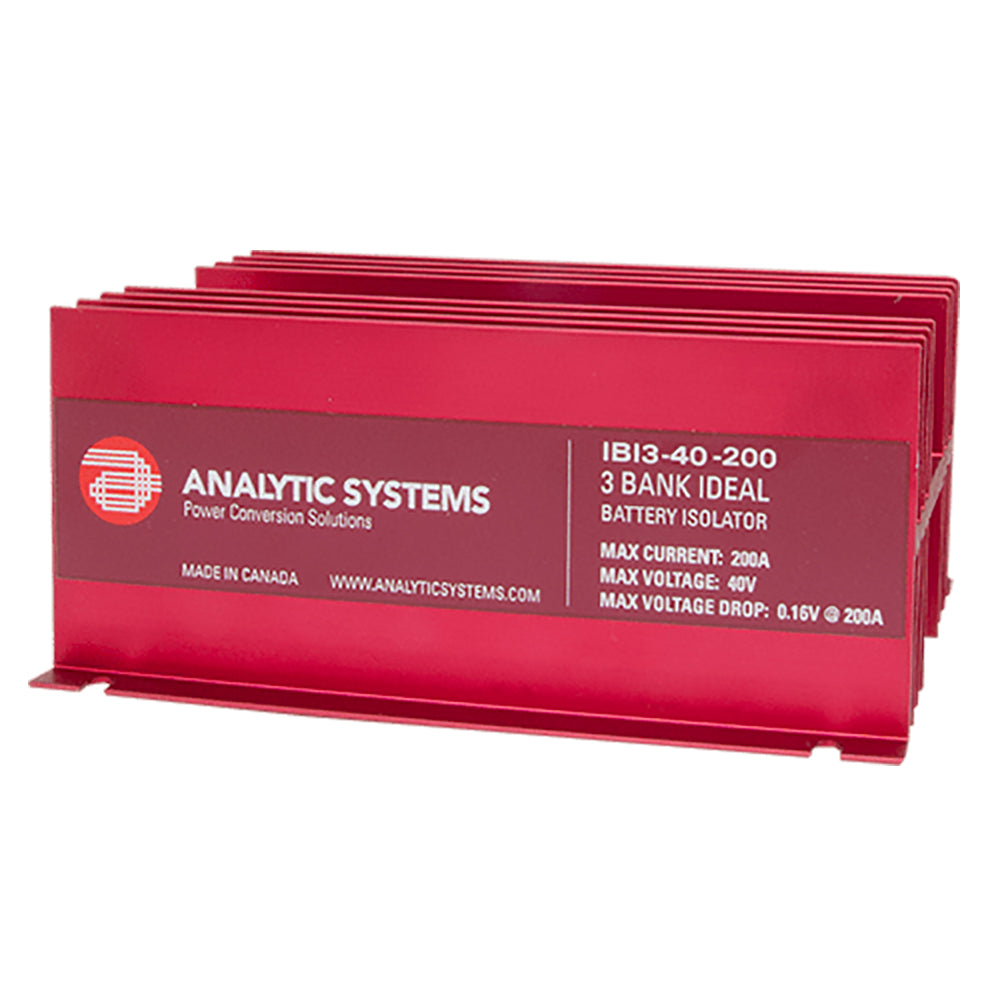

Analytic Systems 200A, 40V 3-Bank Ideal Battery Isolator (Part No. IBI3-40-200)

200A, 40V 3-Bank Ideal Battery Isolator

Features:

• Waterproof Expoxy Sealed Construction
• Easy Connection
• Most Efficient use of Available Alternator Output
• Maximize Battery Performance
• Three year parts and labour warranty

Analytic Systems introduces the IBI (Ideal Battery Isolator) for 1, 2 and 3 bank battery systems, allowing all the batteries to be fully charged from a single alternator while maintaining electrical
isolation between the battery banks or between a vehicle andtrailer.

Ideal Diode technology uses MosFet Transistors and controlcircuitry to replace the diode used in a traditional battery isolatorand reduces the voltage drop across the isolator to a mere 160millivolts at 200 Amps of charging current and essentially zerovolts at low current, so all the power of the alternator is applied tothe batteries ensuring a full recharge every time.

While the Ideal Battery Isolator is designed to be used with an alternator, it can also be used to convert a single bank battery charger to a 2 or 3 bank charger or as a pure diode between a vehicle and trailer or other remote load.

The Analytic Systems IBI3-40-200 is a high-performance, waterproof battery isolator designed to optimize the charging of multiple batteries from a single alternator source. Crafted with epoxy-sealed construction, this isolator ensures durability and reliable operation in harsh environments. Its user-friendly connection system simplifies installation, enabling quick setup for various battery bank configurations. This model efficiently utilizes available alternator output to maximize battery performance, ensuring that each battery bank receives a full charge while maintaining electrical isolation between banks or between a vehicle and trailer. The IBI3-40-200 employs advanced Ideal Diode technology, using MosFet transistors and sophisticated control circuitry to minimize voltage drop. At maximum charging current of 200 amps, the voltage drop is only about 160 millivolts, effectively zero at lower currents, guaranteeing that the full power of the alternator is delivered to the batteries. This results in faster, more complete recharges and improved overall battery health. Although primarily designed for use with alternators, this isolator can also be adapted as a multi-bank charger from a single battery charger or used as a diode between a vehicle and trailer or remote load. The device is supported by a three-year parts and labor warranty, providing peace of mind with its reliable performance and longevity. Whether you're managing multiple battery banks on a truck, RV, or marine vessel, the Analytic Systems IBI3-40-200 offers a robust, efficient, and easy-to-install solution to enhance your power system’s efficiency and reliability.

Features:

• Waterproof epoxy sealed construction for durability in harsh environments

• Simple connection system for quick and easy installation

• Maximizes available alternator output for optimal charging efficiency

• Ensures full recharge of batteries while maintaining electrical isolation

• Uses advanced Ideal Diode technology with MosFet transistors for minimal voltage drop

• Voltage drop: approximately 160 millivolts at 200 amps, virtually zero at low current

• Suitable for 1, 2, or 3 bank battery systems

• Can be adapted as a multi-bank charger or diode between vehicle and trailer

• Includes a three-year parts and labor warranty for reliable performance
