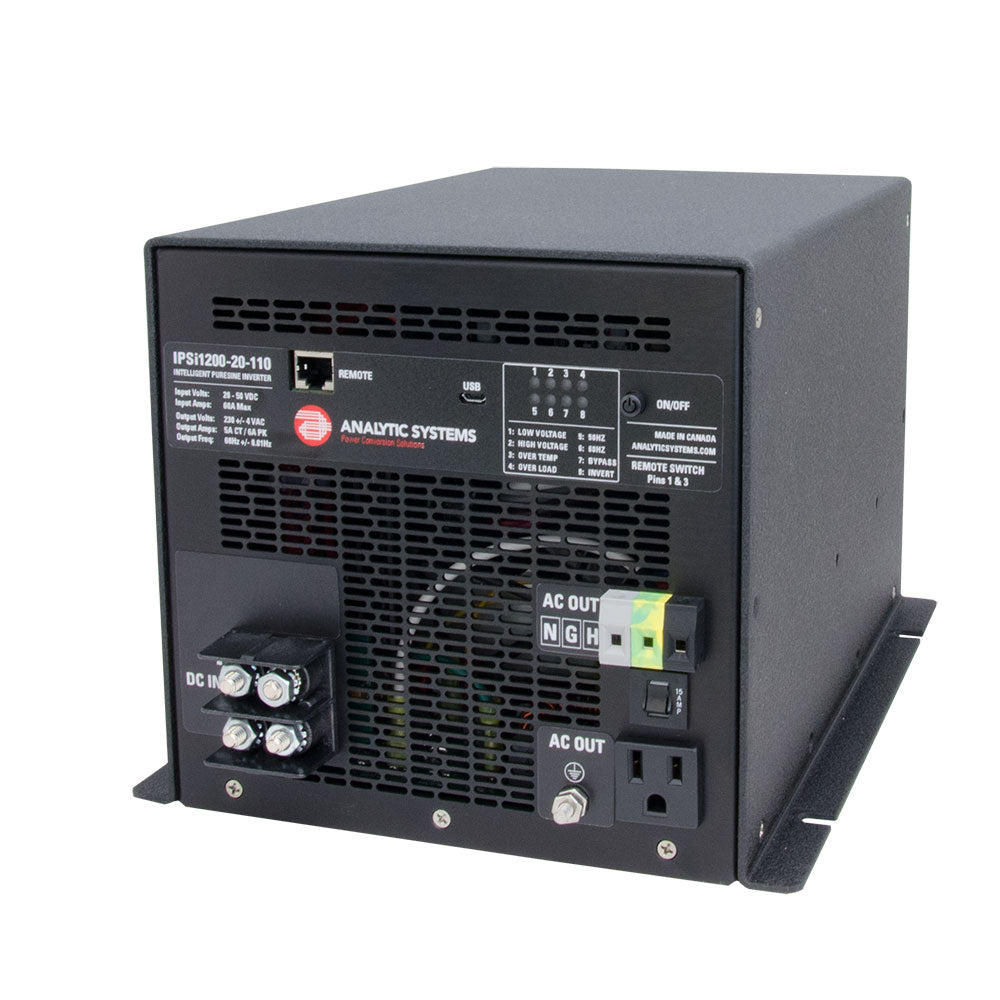

Analytic Systems IPSI1200-20-110 1200W Pure Sine Wave Inverter with Programmable Features

AC Intelligent Pure Sine Wave Inverter 1200W, 20-40V In, 110V Out

Digital Signal Processor controlled high power MosFet technology creates a low voltage Sine-Wave that is fed into a compact toroidal step-up transformer to create a very clean low EMI AC output.

Using the free to download Power Wizard software, the usercan select output frequency, output voltage, output frequency andlow voltage shutdown parameters from any laptop through thestandard micro-usb interface.

Safety features include current limiting, short circuit protection,inrush protection (during connection to the DC source),overtemperature de-rating and shutdown and low input voltagewarning and shutdown.

An Off-Line UPS options allows external AC to be routed through the inverter for high power UPS function if the external AC fails.

Features:

• Programmable Low Voltage Shutdown
• Overload Protected
• Short Circuit Protected
• DSP Controlled
• Programmable Frequency
• Over Temperature Protected
• Hardwire AC Output Connection
• Programmable Output Voltage
• Three year parts and labour warranty

The Analytic Systems IPSI1200-20-110 is a high-performance pure sine wave inverter designed to deliver reliable AC power for sensitive electronic equipment. Equipped with advanced Digital Signal Processor controlled high power MosFet technology, this inverter produces a low voltage sine wave that is fed into a compact toroidal step-up transformer, ensuring a clean and stable power output with minimal electromagnetic interference. Its design makes it suitable for a wide range of applications where clean power is critical, such as medical devices, audio equipment, and communication systems. The inverter offers flexible control options via the free Power Wizard software, allowing users to customize output frequency, voltage, and low voltage shutdown parameters directly from their laptop through a standard micro-USB interface. Safety features include current limiting, short circuit protection, inrush protection during connection, overtemperature de-rating and shutdown, and low input voltage warning and shutdown, providing comprehensive protection for both the inverter and connected devices. An optional Off-Line UPS mode enables external AC power to be routed through the inverter for high power UPS functionality, maintaining operation during power outages. This inverter also features programmable low voltage shutdown, overload and short circuit protection, over temperature protection, and a hardwire AC output connection for secure installation. Backed by a three-year parts and labor warranty, the Analytic Systems IPSI1200-20-110 offers a dependable power solution for demanding environments requiring consistent, clean energy supply.

Features:

• Programmable Low Voltage Shutdown for customizable safety thresholds

• Overload Protected to prevent damage during excessive load conditions

• Short Circuit Protected ensuring safe operation in fault conditions

• DSP Controlled for precise power regulation

• Programmable Frequency for adaptable power output

• Over Temperature Protected with automatic de-rating and shutdown

• Hardwire AC Output Connection for secure installation

• Programmable Output Voltage for tailored power delivery

• Three-year parts and labour warranty for peace of mind
