SKU:77031

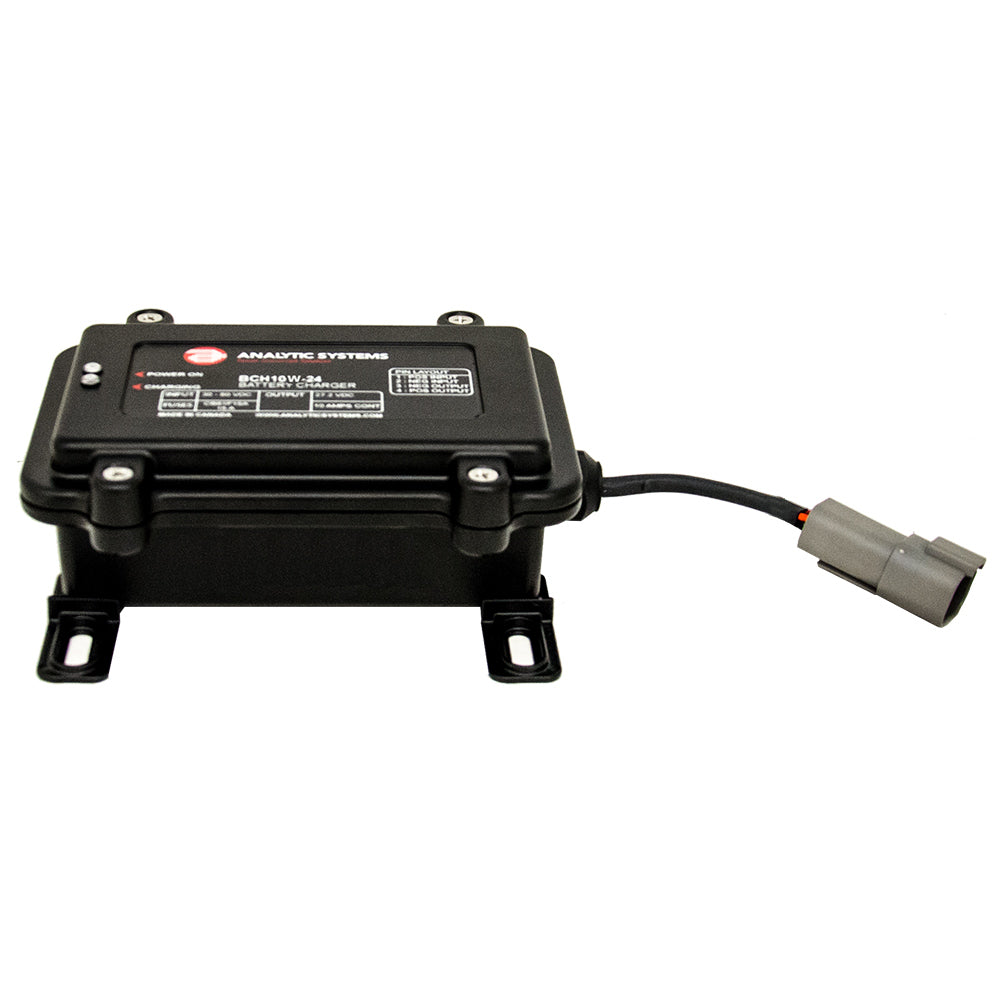

Waterproof IP66 DC Battery Charger 10A, 24V Out, 30-80V In, Ruggedized
The BCH10 Step Down series of Battery Chargers supply up to 10 amps of charging current at 12, 24, 36 or 48 volts from any higher voltage between 20 and 80 volts DC in an IP66 rated watertight and EMC shielded enclosure for use in automotive, heavy equipment, marine, industrial, rail or alternative energy environments. The output voltage is configured to allow permanent connection to the battery.
The standard BCH10W model offers a Deutsch connector on a pigtailinput/output cable, and the military grade BCH10MW features separatebayonet style MIL connectors for input and output.
The all surface mount high frequency design offers higher reliability,higher efficiency (more than 91%), more power (up to 544 watts at 48VDC Out) and minimum size.
The BCH10MW is rated for operation from -40 to +55 degrees C andhas been tested and confirmed to meet MIL-STD-461F for radiated andconducted emissions. It is designed to meet MIL-STD-810G for shock andvibration.
The unit has reverse input protection, reverse battery connection protection, output over-voltage protection and features spark free connection to the battery. Smart Ideal Diode output circuitry prevents any reverse current flowing from the battery back into the converter.
Features:
The Analytic Systems BCH10W-24 is a high-performance waterproof DC battery charger designed for demanding environments such as automotive, marine, industrial, rail, and alternative energy applications. This ruggedized unit supplies up to 10 amps of charging current with a 24-volt output, compatible with a wide input voltage range from 30 to 80 volts DC. Encased in an IP66-rated watertight and EMC-shielded enclosure, the charger ensures reliable operation even in harsh outdoor conditions. Its compact design facilitates easy mounting and integration into existing systems, making it suitable for various mobile and stationary power setups. The all-surface mount high-frequency design delivers over 91% efficiency and more than 544 watts of power at 48VDC output, providing robust and reliable charging performance. The charger is configured for permanent battery connection and includes features such as reverse input protection, reverse battery connection protection, output over-voltage protection, and spark-free connection for safety. Additionally, the smart ideal diode circuitry prevents reverse current flow from the battery back into the converter, safeguarding your power system. The BCH10W-24 model features a Deutsch connector on a pigtail cable, while the military-grade BCH10MW version offers separate bayonet-style MIL connectors for input and output, suitable for demanding military and industrial applications. The unit is rated to operate across a wide temperature range from -40 to +55 degrees Celsius and has been tested to meet MIL-STD-461F and MIL-STD-810G standards for electromagnetic compatibility, shock, and vibration resistance. Its design includes input and output EMC filters, LED indicators for power and charging status, and optional custom output voltages and connector configurations for tailored solutions. With a two-year warranty covering parts and labor, the BCH10W-24 offers a reliable, durable, and versatile power source for challenging environments requiring secure and efficient battery charging.
Features:
