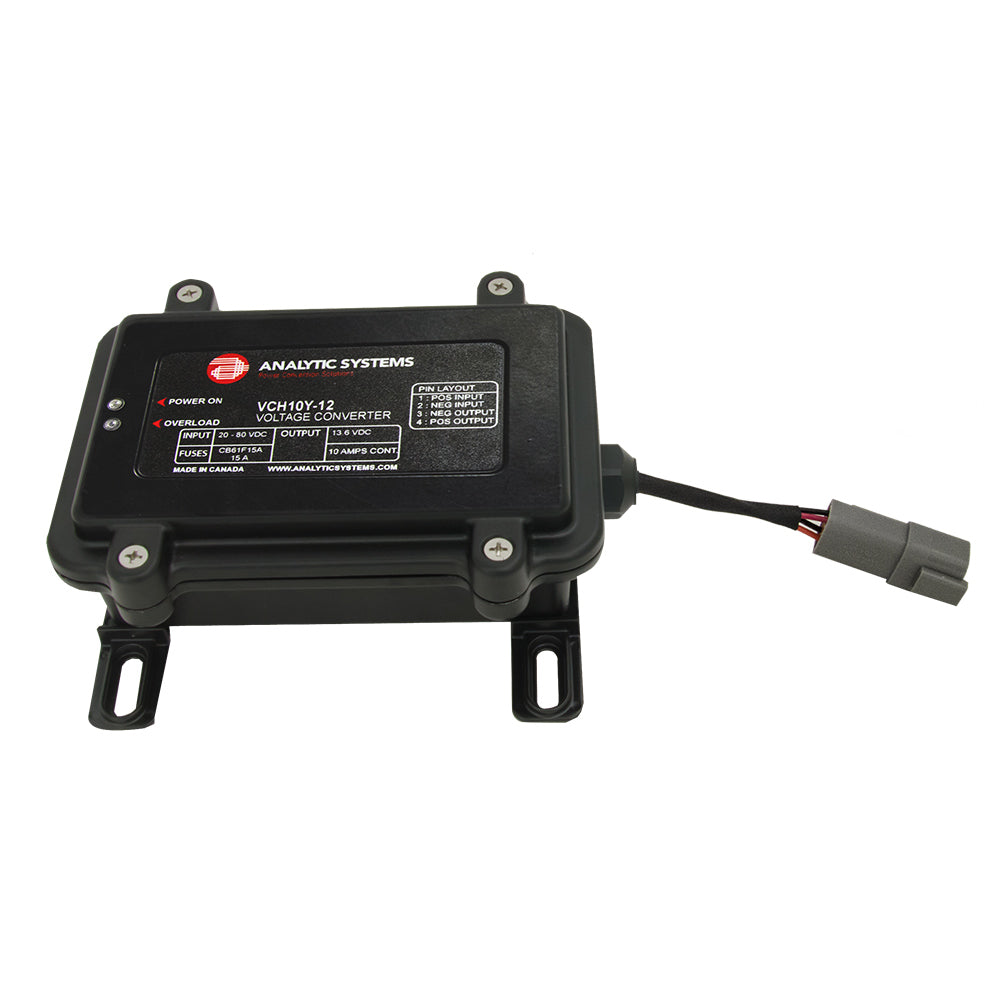

Analytic Systems Waterproof IP66 DC Converter VCH10W-12, 10A, 12V Output, 20-80V Input

Waterproof IP66 DC Converter 10A, 12V Out 20-80V In, Ruggedized

The VCH10 Step Down series of Voltage Converters supply up to 10 amps of output current at 12, 24, 36 or 48 volts from any higher voltage between 20 and 80 volts DC in an IP66 rated watertight and EMC shielded enclosure for use in rugged environments.

The standard VCH10W model offers a Deutsch connector on a pigtailinput/output cable, and the military grade VCH10MW features separatebayonet style MIL connectors for input and output.

The all surface mount high frequency design offers higher reliability,higher efficiency (more than 92%), more power (up to 544 watts at 48VDC Out) and minimum size.

The VCH10MW is rated for operation from -40 to +55 degrees C andhas been tested and confirmed to meet MIL-STD-461F for radiated andconducted emissions. It is designed to meet MIL-STD-810G for shock andvibration.

The unit has reverse input protection, output current limiting and output over-voltage protection.

Features:

• Watertight O-ring sealed and EMC gasketed enclosure
• MIL connectors
• Output ON and Overload LED indicators
• Compact size and easy mounting
• Up to 80V input
• Heavy duty ruggedization with wide temperature range
• Paralleling diodes
• Custom output voltages available
• Two year warranty (parts and labor)

The Analytic Systems VCH10W-12 is a rugged, waterproof DC converter designed for demanding environments where reliable power conversion is essential. Featuring an IP66 rated enclosure, this converter provides a stable 12V output at up to 10 amps from an input voltage range of 20 to 80 volts DC. Its robust construction ensures protection against water, dust, and EMC interference, making it suitable for outdoor and industrial applications. The all-surface mount high-frequency design delivers high efficiency, exceeding 92%, and a power output of up to 120 watts, ensuring minimal energy loss and reliable operation. The compact size and easy mounting options facilitate seamless integration into existing systems, whether in transportation, military, or industrial setups.

Equipped with a Deutsch connector on a pigtail cable, the VCH10W-12 offers straightforward installation and maintenance. It includes features such as reverse input protection, output current limiting, and over-voltage protection to safeguard connected devices. The product has been tested to meet MIL-STD-810G for shock and vibration and MIL-STD-461F for radiated and conducted emissions, ensuring durability under harsh conditions. The unit is rated for operation in temperatures ranging from -40 to +55 degrees Celsius, making it suitable for extreme environments. Optional configurations include custom output voltages and military-grade MIL connectors for enhanced ruggedization. Backed by a two-year warranty covering parts and labor, the VCH10W-12 is a dependable power solution for demanding applications requiring high performance and reliability.

Features:

• Watertight O-ring sealed and EMC gasketed enclosure

• MIL connectors for secure and durable connections

• Output ON and Overload LED indicators for status monitoring

• Compact size with straightforward mounting options

• Supports input voltages up to 80V DC

• Heavy-duty rugged design for wide temperature operation

• Includes paralleling diodes for scalability

• Custom output voltages available upon request

• Two-year warranty covering parts and labor
