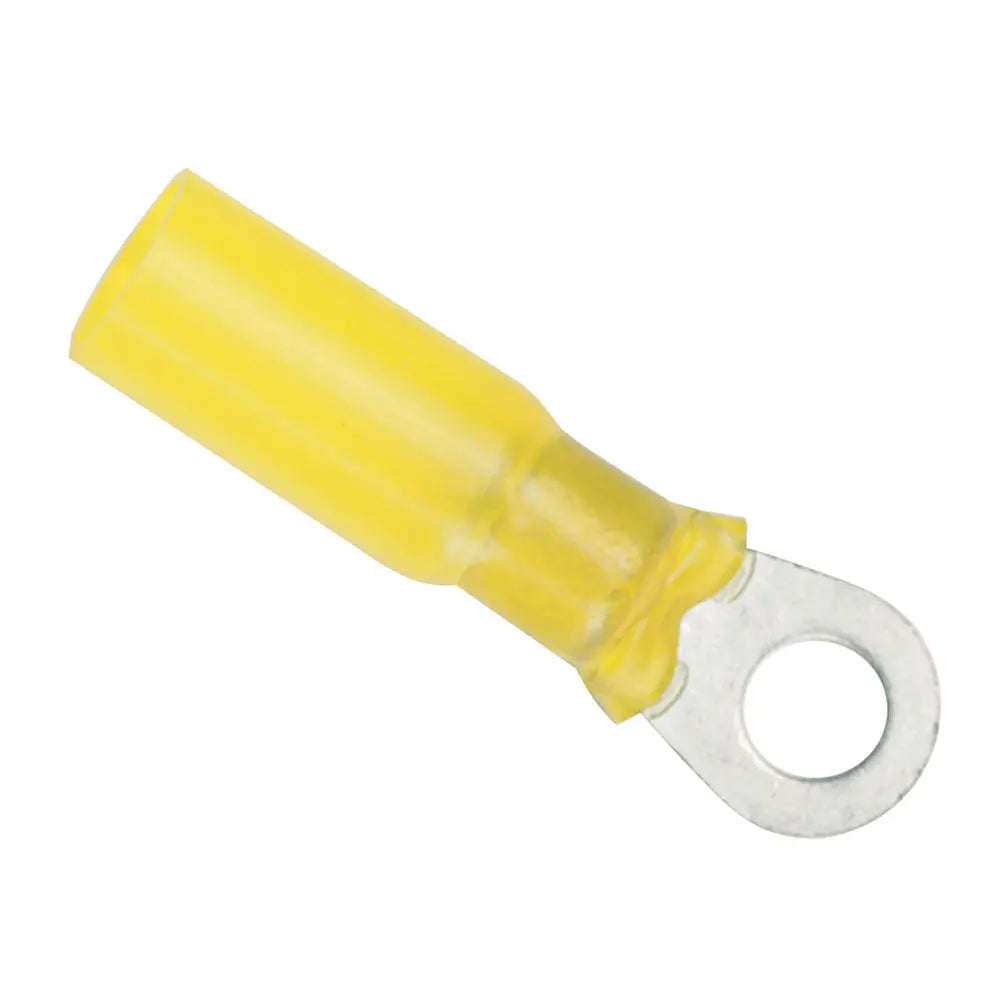

Ancor 12-10 Gauge 1/4-Inch Heat Shrink Ring Terminal - 100-Pack

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC

• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief

• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage

• UL Listed and CSA Recognized

• Highest shrink ratio - shrinks to 1/3 original size

• Shrinks at 257 F/125 C

• Operating temperature range 40 C to 110 C

• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing

• Shrinks to form a water tight seal and the ultimate vibration and strain relief

• Tinned for corrosion resistance

• Pure copper for maximum current flow

• Brazed seam for maximum strength

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor 12-10 gauge heat shrink ring terminals are designed for reliable electrical connections in demanding environments. Constructed with cross-linked polyolefin tubing, these terminals are significantly stronger than traditional PVC and resist burning or melting under high temperatures. The heat-activated adhesive lining ensures a watertight seal that withstands exposure to saltwater, oils, acids, and sunlight, providing excellent strain relief for long-lasting performance. The nylon insulator, favored by marine and electrical professionals, offers superior resistance to sunlight, water, oil, chemicals, vibration, and mechanical damage, making these terminals ideal for marine, automotive, and industrial applications. UL listed and CSA recognized, these connectors meet rigorous safety standards for quality and reliability.

Features:

• Cross-linked polyolefin tubing delivers increased strength and durability over PVC

• Heat-activated adhesive lining creates an impervious seal resistant to saltwater, oil, acids, and sunlight

• Nylon insulator provides marine-grade resistance to environmental damage and mechanical wear

• UL listed and CSA recognized for safety and quality assurance

• High shrink ratio shrinks to one-third of original size for secure fitting

• Shrinks at 257°F (125°C) to form a tight, waterproof seal

• Operating temperature range from 40°C to 110°C (104°F to 230°F)

• Heat shrink connectors feature built-in adhesive for optimal sealing and strain relief

• Tinned copper construction offers excellent corrosion resistance and maximum current flow

• Brazed seam enhances connector strength and durability
