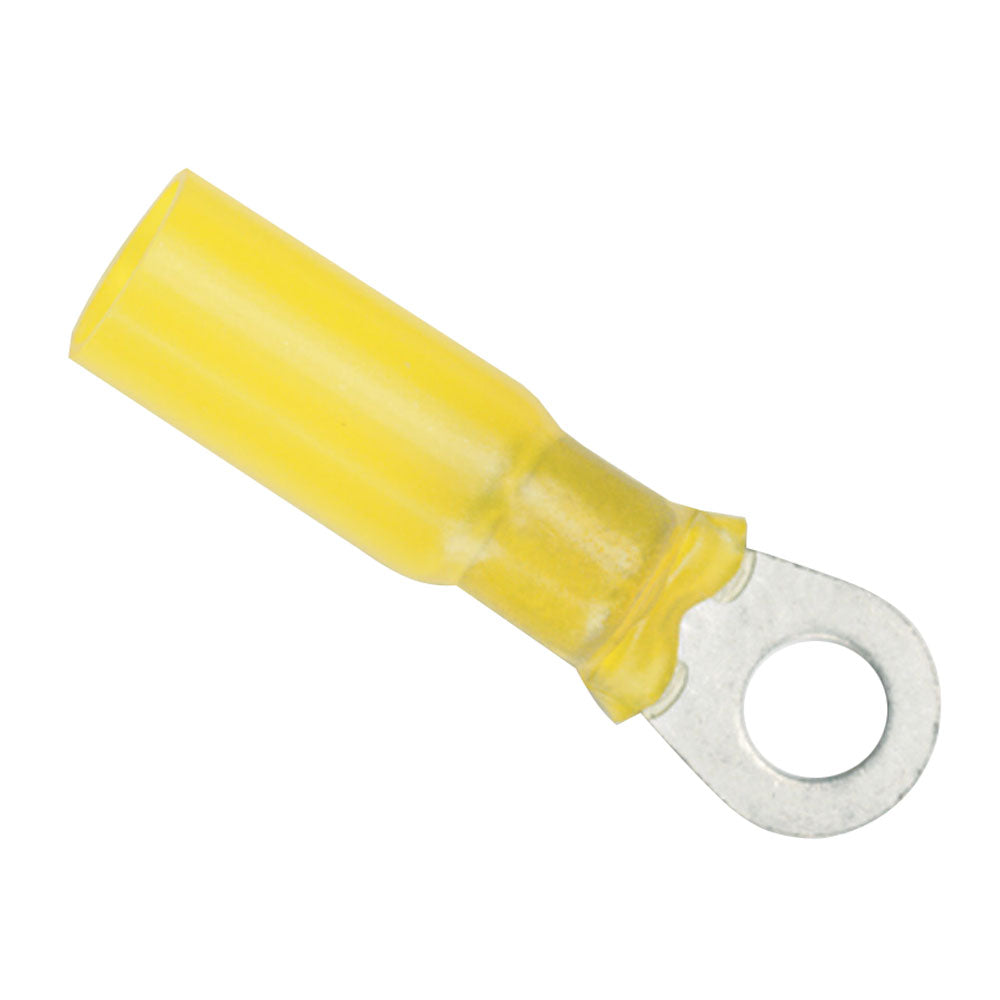

Ancor 12-10 Gauge 1/4-Inch Heat Shrink Ring Terminal - 25 Pack

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC

• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief

• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage

• UL Listed and CSA Recognized

• Highest shrink ratio - shrinks to 1/3 original size

• Shrinks at 257 F/125 C

• Operating temperature range 40 C to 110 C

• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing

• Shrinks to form a water tight seal and the ultimate vibration and strain relief

• Tinned for corrosion resistance

• Pure copper for maximum current flow

• Brazed seam for maximum strength

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor 12-10 Gauge 1/4-inch heat shrink ring terminal set offers reliable and durable connections for electrical wiring applications. Crafted with cross-linked polyolefin tubing, these terminals are significantly stronger than traditional PVC options and resist burning when exposed to high heat. The heat-activated adhesive lining ensures a watertight seal that guards against saltwater, oil, acids, and sunlight, while also providing strain relief to maintain secure connections in demanding environments. The nylon insulator, favored by marine professionals, offers superior resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage, making these terminals ideal for marine and industrial use. UL Listed and CSA Recognized, these terminals meet rigorous safety and quality standards. The high shrink ratio allows the tubing to shrink to one-third of its original size at 257°F (125°C), creating a tight, waterproof seal that also offers excellent vibration and strain relief. Made from pure copper and tinned for corrosion resistance, these terminals ensure maximum current flow and durability. The brazed seam enhances overall strength, making them suitable for demanding electrical connections. Designed for a screw size of 1/4 inch, each pack contains 25 ring terminals, making it a cost-effective choice for repair and installation projects. These terminals are versatile and reliable, ideal for automotive, marine, and industrial electrical wiring where secure, moisture-resistant connections are essential.

Features:

• Cross-linked polyolefin tubing for increased strength and heat resistance

• Heat-activated adhesive lining for waterproof sealing and strain relief

• Nylon insulator with Marine Grade resistance to sunlight, water, oil, and chemicals

• UL Listed and CSA Recognized for safety and quality assurance

• High shrink ratio shrinks to one-third of original size at 257°F (125°C)

• Operates within temperature range of 40°C to 110°C

• Built-in adhesive provides a watertight seal and vibration resistance

• Tinned copper construction for corrosion resistance and maximum current flow

• Brazed seam for enhanced strength and durability
