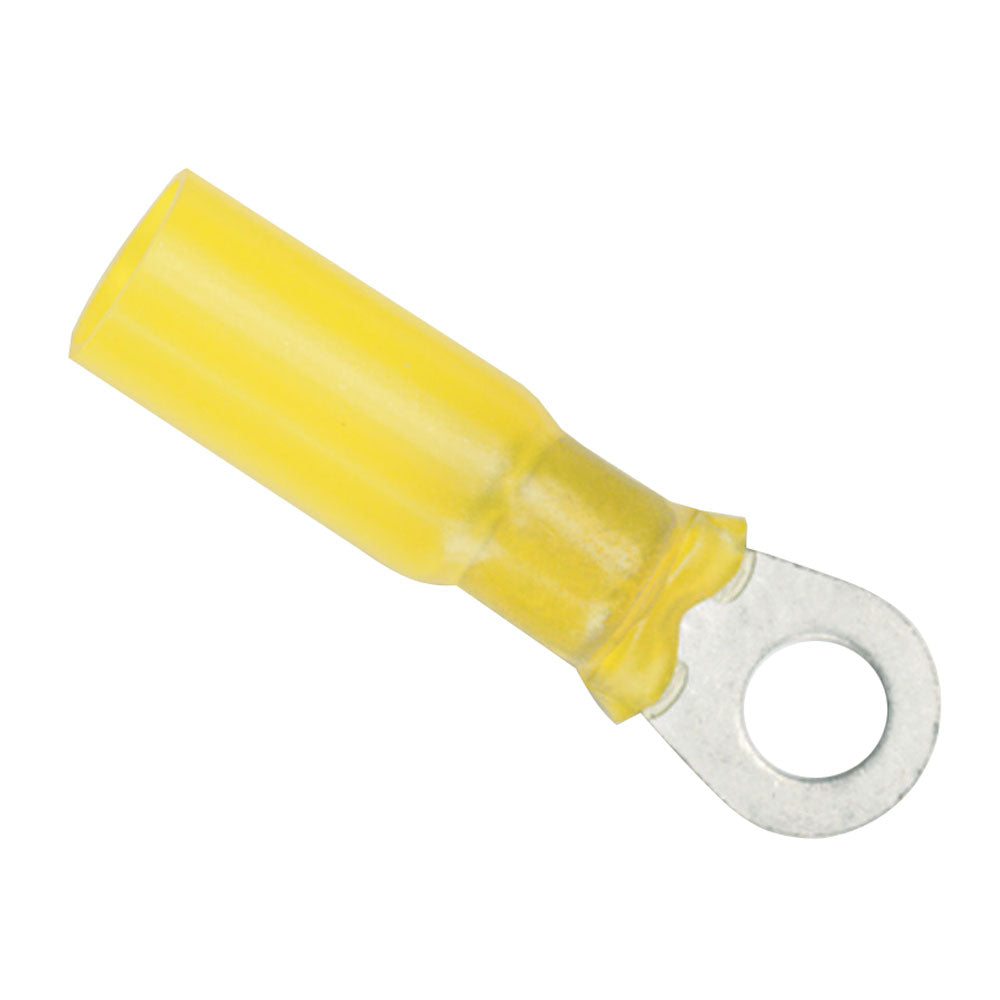

Ancor 12-10 Gauge #10 Heat Shrink Ring Terminal - 3 Pack for Marine and Electrical Applications

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC

• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief

• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage

• UL Listed and CSA Recognized

• Highest shrink ratio - shrinks to 1/3 original size

• Shrinks at 257 F/125 C

• Operating temperature range 40 C to 110 C

• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing

• Shrinks to form a water tight seal and the ultimate vibration and strain relief

• Tinned for corrosion resistance

• Pure copper for maximum current flow

• Brazed seam for maximum strength

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor Part Number 312303 provides a reliable solution for secure electrical connections in marine and industrial environments. Designed for wire gauges ranging from 12 to 10, these #10 heat shrink ring terminals ensure a tight and waterproof connection. Constructed with cross-linked polyolefin tubing, these terminals are significantly stronger than traditional PVC options and resist burning under high heat conditions. The heat-activated adhesive lining within the tubing creates an impervious seal against salt water, oils, acids, and sunlight, while also offering strain relief to prevent connection failures over time. The nylon insulator, favored by professionals, provides marine-grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage, ensuring durability in harsh environments. UL listing and CSA recognition verify the product’s safety and quality standards. The high shrink ratio allows the tubing to shrink to one-third of its original size at 257°F (125°C), accommodating various wire sizes with ease. Operating effectively within a temperature range of 40°C to 110°C, these connectors deliver consistent performance even under demanding conditions. The tinned copper construction enhances corrosion resistance and maximizes current flow, while the brazed seam adds strength and durability to the terminal. These heat shrink ring terminals are designed to form a water-tight seal, providing superior vibration and strain relief for long-lasting connections. Whether used in marine, automotive, or electrical applications, the Ancor heat shrink ring terminals deliver dependable performance and corrosion resistance for secure wiring systems. This pack includes three terminals, making it a cost-effective choice for multiple connections in your project. As with all electrical components, proper handling and installation are necessary to ensure safety and optimal performance. Please note that this product may contain chemicals such as di(2-ethylhexyl)phthalate (DEHP), which is recognized by California as a reproductive hazard. For more information, visit P65Warnings.ca.gov.

Features:

• Cross-linked polyolefin tubing offers superior strength and heat resistance compared to PVC

• Heat-activated adhesive lining provides an impervious seal against water, salt, oil, acids, and sunlight

• Nylon insulator offers marine-grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage

• UL listed and CSA recognized for safety and quality assurance

• High shrink ratio of 3:1 for secure fit and insulation

• Shrinks at 257°F (125°C) to form a water-tight seal and provide strain relief

• Operating temperature range from 40°C to 110°C ensures reliable performance

• Tinned copper construction enhances corrosion resistance and current flow

• Brazed seam for maximum strength and durability
