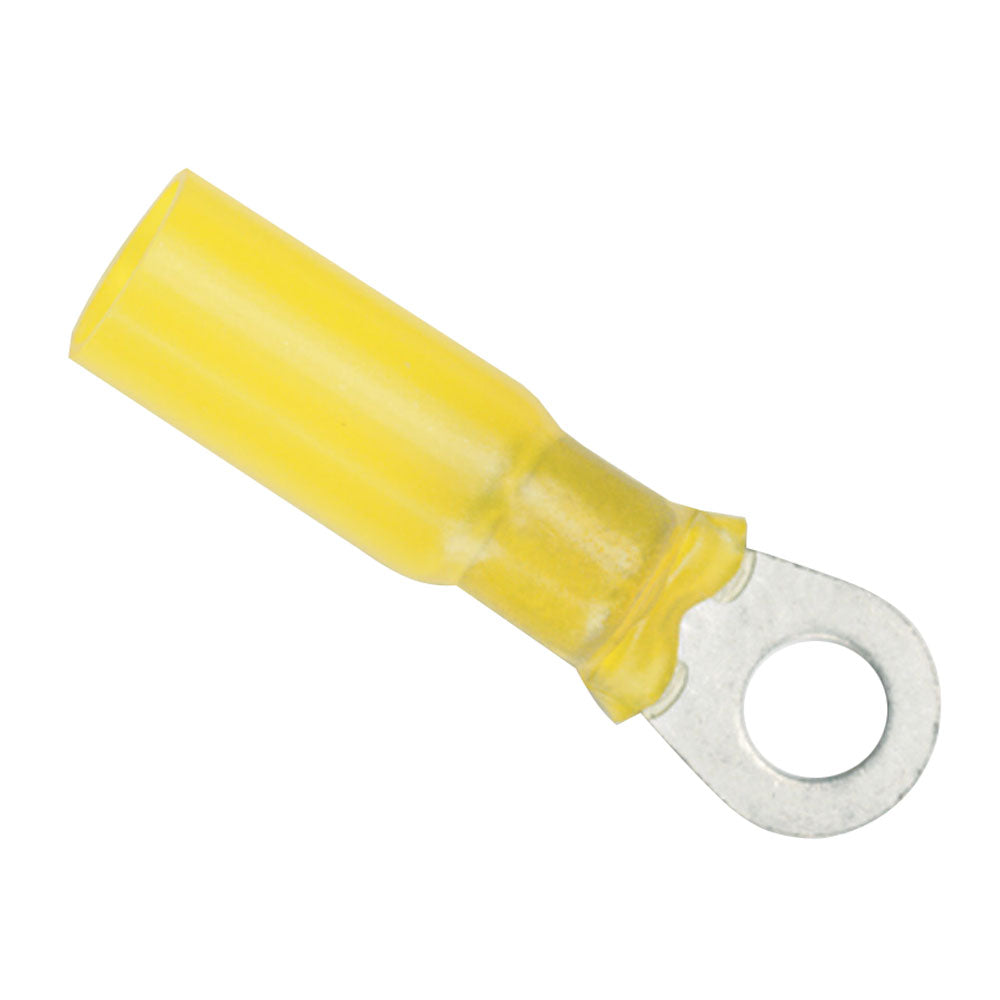

Ancor 12-10 Gauge 5/16 Inch Heat Shrink Ring Terminal - 25 Pack for Marine and Electrical Applications

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC

• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief

• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage

• UL Listed and CSA Recognized

• Highest shrink ratio - shrinks to 1/3 original size

• Shrinks at 257 F/125 C

• Operating temperature range 40 C to 110 C

• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing

• Shrinks to form a water tight seal and the ultimate vibration and strain relief

• Tinned for corrosion resistance

• Pure copper for maximum current flow

• Brazed seam for maximum strength

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor 12-10 gauge 5/16 inch heat shrink ring terminal is designed for reliable electrical connections in demanding environments. Constructed with cross-linked polyolefin tubing, this terminal offers a significant upgrade over traditional PVC insulation, providing enhanced strength and resistance to heat, chemicals, and physical stress. The heat-activated adhesive lining ensures a water-tight seal that protects against salt water, oils, acids, and UV exposure, making it ideal for marine and outdoor use. The nylon insulator, preferred by industry professionals, offers superior resistance to sunlight, water, oil, and vibration, reducing the risk of damage and ensuring long-lasting performance. This terminal features a high shrink ratio, shrinking to approximately one-third of its original size at 257°F (125°C), which guarantees a secure fit and strain relief. Tinned for corrosion resistance and manufactured with a brazed seam for maximum strength, this product ensures consistent electrical conductivity and durability. With pure copper construction, it provides maximum current flow, supporting high-power applications. UL listed and CSA recognized, the Ancor heat shrink ring terminal is a trusted choice for marine wiring, automotive, and industrial projects, combining safety, reliability, and ease of installation.

Features:

• Cross linked polyolefin tubing is stronger than PVC and will not burn like PVC

• Heat activated adhesive lining provides an impervious seal to salt water, oil, acids, and sunlight while offering strain relief

• Nylon insulator offers marine-grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage

• UL listed and CSA recognized for safety and compliance

• Shrinks to approximately one-third of original size for a secure connection

• Shrinks at 257°F (125°C) for efficient installation

• Operating temperature range from 40°C to 110°C (104°F to 230°F)

• Built-in heat activated adhesive creates a water-tight seal and vibration resistance

• Tinned copper for enhanced corrosion resistance

• Pure copper construction for maximum current flow

• Brazed seam for maximum strength and durability
