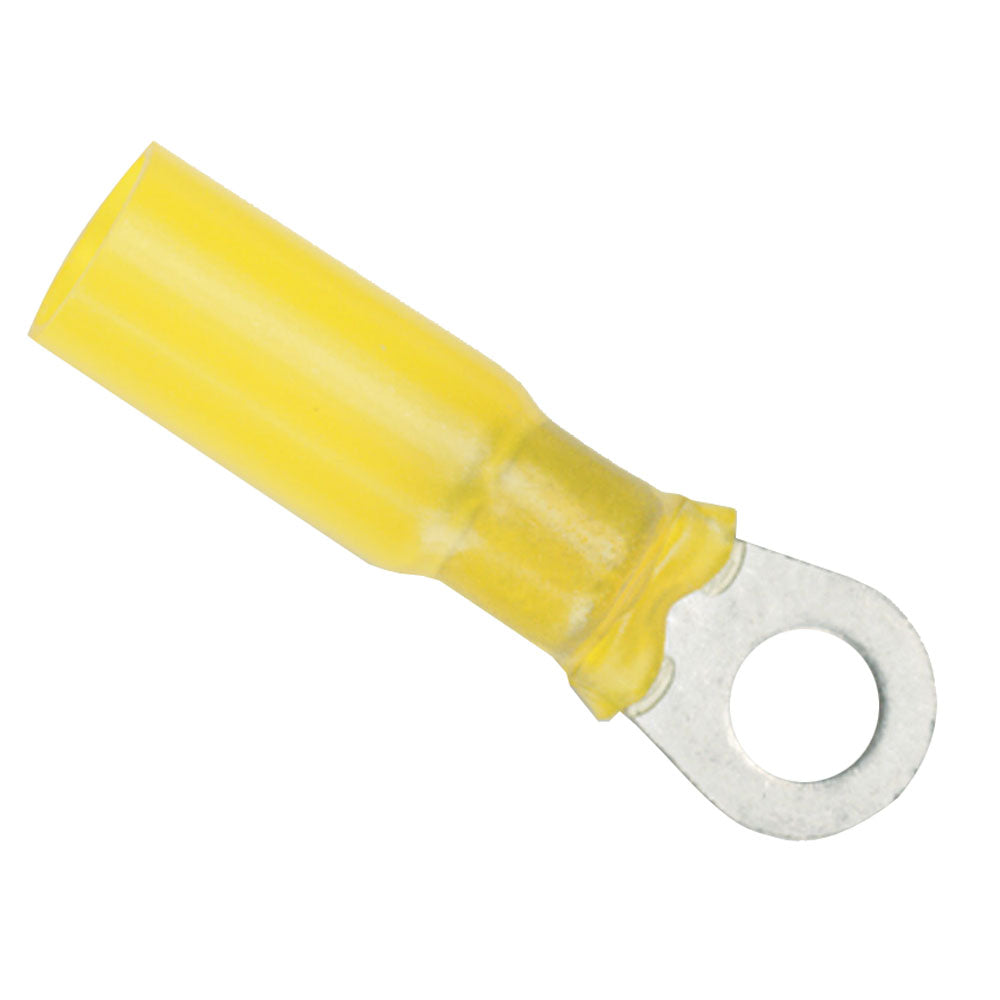

Ancor 12-10 Gauge #8 Heat Shrink Ring Terminal - 100-Pack for Marine and Electrical Applications

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.

• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.

• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.

• UL Listed and CSA Recognized

• Highest shrink ratio - shrinks to 1/3 original size.

• Shrinks at 257 deg. F/125 deg. C.

• Operating temperature range 40 deg. C to 110 deg. C.

• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing

• Shrinks to form a water tight seal and the ultimate vibration and strain relief.

• Tinned for corrosion resistance.

• Pure copper for maximum current flow.

• Brazed seam for maximum strength.

• Wire Range: 12-10

• mm: 3-5

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor 12-10 Gauge #8 Heat Shrink Ring Terminal is designed for reliable electrical connections in demanding environments. Made with high-quality materials, these terminals feature a cross-linked polyolefin tubing that is significantly stronger than PVC and resistant to burning or melting under high temperatures. The heat-activated adhesive lining ensures a watertight seal, providing protection against saltwater, oil, acids, and sunlight while offering strain relief to prevent connection failures. Ideal for marine, automotive, and industrial wiring, these terminals are equipped with a nylon insulator that offers superior resistance to sunlight, water, oil, chemicals, vibrations, and potential cut-through damage, ensuring durability in harsh conditions. UL listed and CSA recognized, these terminals meet rigorous safety and quality standards. The terminals shrink to one-third of their original size when exposed to 257°F (125°C), enabling easy and secure installation. They are designed to operate within a temperature range of 40°C to 110°C, making them suitable for a variety of environments. The tinned copper construction enhances corrosion resistance and maximizes current flow, while the brazed seam provides added strength and durability. These ring terminals accommodate wire sizes from 12 to 10 gauge, with a screw size of #8, making them versatile for many wiring projects. Ancor's heat shrink connectors are an excellent choice for achieving professional-grade, secure electrical connections that withstand vibration, exposure, and strain, ensuring long-term performance in marine and other demanding applications.

Features:

• Cross-linked polyolefin tubing is stronger and more durable than PVC and resistant to burning.

• Heat-activated adhesive lining provides an impervious seal against salt water, oil, acids, and sunlight, as well as strain relief.

• Nylon insulator offers marine-grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage.

• UL Listed and CSA Recognized for safety and quality compliance.

• Shrinks to one-third of its original size at 257°F (125°C) for a secure fit.

• Operates within a temperature range of 40°C to 110°C, suitable for harsh environments.

• Tinned copper construction enhances corrosion resistance and maximizes current flow.

• Brazed seam provides maximum strength and durability.

• Compatible with wire sizes 12-10 gauge, with a #8 screw size for connection.
