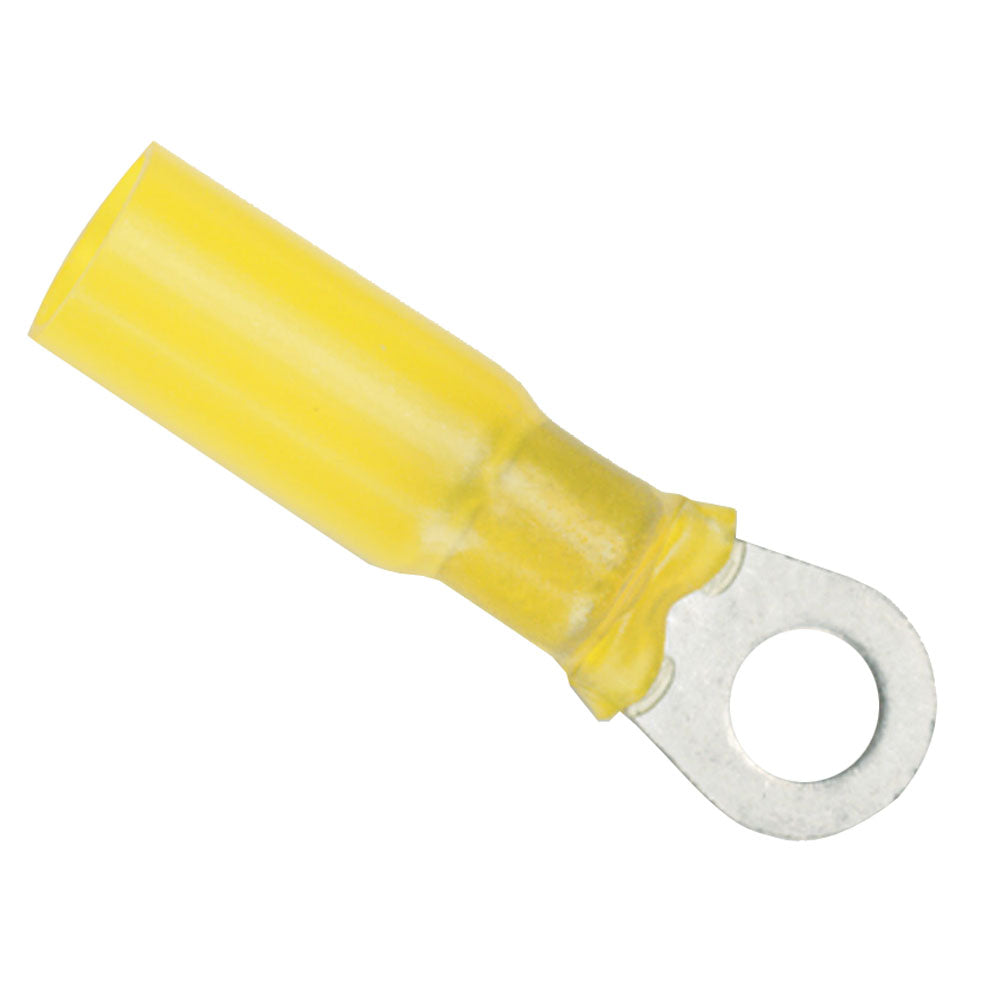

Ancor 12-10 Gauge #8 Heat Shrink Ring Terminal - 3-Pack for Marine and Electrical Applications

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.

• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.

• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.

• UL Listed and CSA Recognized

• Highest shrink ratio - shrinks to 1/3 original size.

• Shrinks at 257 deg. F/125 deg. C.

• Operating temperature range 40 deg. C to 110 deg. C.

• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing

• Shrinks to form a water tight seal and the ultimate vibration and strain relief.

• Tinned for corrosion resistance.

• Pure copper for maximum current flow.

• Brazed seam for maximum strength.

• Wire Range: 12-10

• mm: 3-5

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor 12-10 Gauge #8 Heat Shrink Ring Terminal is designed for secure and reliable electrical connections in marine, automotive, and industrial environments. Crafted with high-quality materials, this product features cross linked polyolefin tubing, which offers superior strength and durability compared to traditional PVC. The tubing resists burning, ensuring safety during high-temperature conditions, and is reinforced with a heat-activated adhesive lining that provides an impervious seal against salt water, oil, acids, and sunlight. This adhesive not only prevents corrosion but also offers strain relief, protecting your connections from vibration and movement. The nylon insulator, preferred by industry professionals, enhances resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage, making it ideal for harsh environments.

Features:

• Cross linked polyolefin tubing offers high strength and resistance to heat and chemicals

• Heat activated adhesive lining creates a waterproof, strain-relieved seal

• Nylon insulator provides marine-grade resistance to sunlight, water, oil, and chemicals

• UL Listed and CSA Recognized for safety and compliance

• Shrinks to one-third of its original size at 257°F (125°C) for a tight fit

• Tinned copper construction ensures maximum corrosion resistance and optimal current flow

• Brazed seam enhances overall strength and durability

• Suitable for wire sizes 12-10 gauge, with a crimp diameter of 3-5 mm
