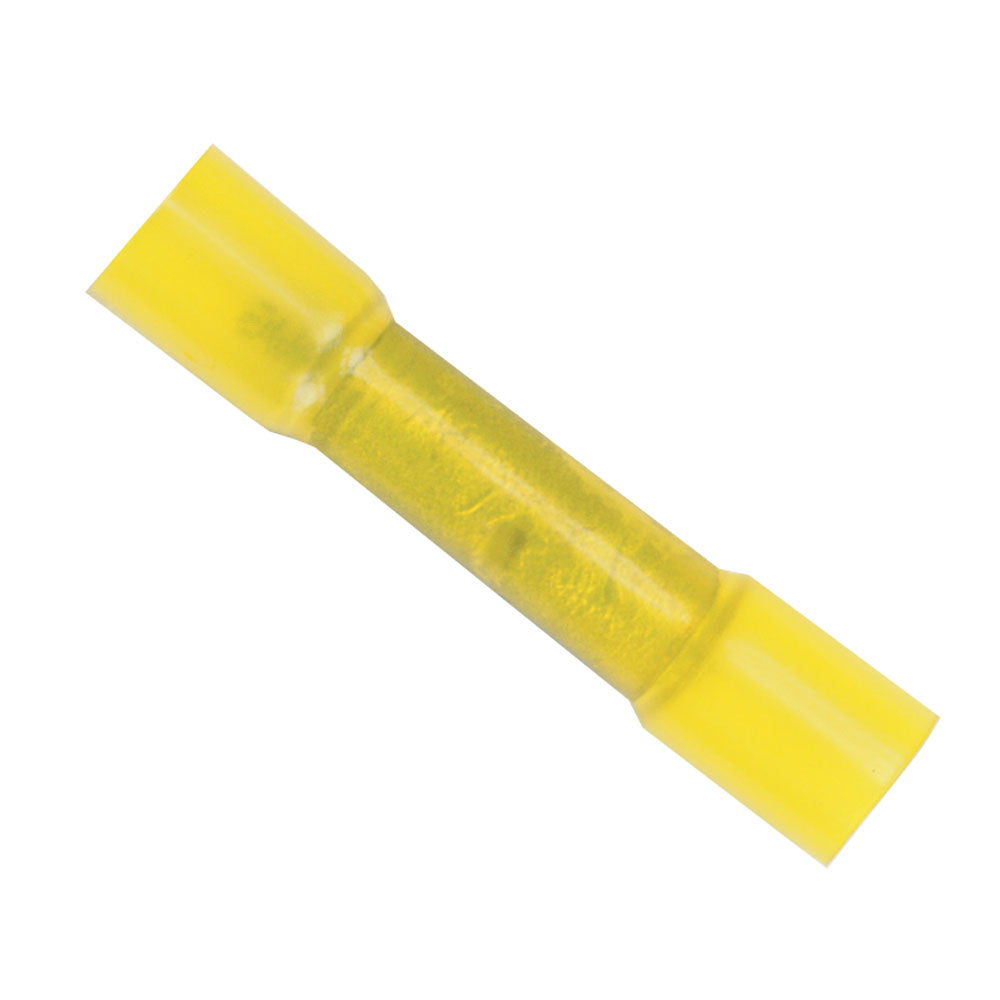

Ancor 12-10 Heatshrink Butt Connectors - 25-Pack for Marine and Electrical Applications

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.

• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.

• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.

• UL Listed and CSA Recognized

• Highest shrink ratio - shrinks to 1/3 original size.

• Shrinks at 257 deg. F/125 deg. C.

• Operating temperature range 40 deg. C to 110 deg. C.

• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing

• Shrinks to form a water tight seal and the ultimate vibration and strain relief.

• Tinned for corrosion resistance.

• Pure copper for maximum current flow.

• Brazed seam for maximum strength.

• Wire range: 12-10

• mm: 3-5

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor 12-10 Heatshrink Butt Connectors provide a reliable and durable solution for wire splicing in marine, automotive, and electrical projects. Designed with cross-linked polyolefin tubing, these connectors are significantly stronger than traditional PVC options and resist burning, ensuring safety and longevity in demanding environments. The heat-activated adhesive lining creates an impervious seal that protects against saltwater, oil, acids, and sunlight, while also offering strain relief to prevent wire damage over time. The nylon insulator, favored by industry professionals, offers superior resistance to sunlight, water, oil, chemicals, vibration, and mechanical cut-through, making these connectors ideal for harsh conditions. UL Listed and CSA Recognized, they meet rigorous safety and quality standards. With a high shrink ratio of one-third of their original size, these connectors shrink uniformly at 257°F (125°C), ensuring a tight, water-proof seal that enhances vibration and strain relief. The tinned copper construction provides excellent corrosion resistance and maximum current flow, while the brazed seam adds structural strength. Suitable for wire sizes 12-10 gauge, these connectors are versatile and dependable, making them suitable for marine wiring, automotive repairs, and other electrical installations requiring secure, sealed connections. The product's operating temperature range from 40°C to 110°C allows for use in a variety of environments. This 25-pack offers ample connectors for multiple projects, ensuring long-lasting and maintenance-free electrical connections in challenging conditions.

Features:

• Cross-linked polyolefin tubing for increased strength and fire resistance compared to PVC

• Heat-activated adhesive lining provides a waterproof, saltwater, oil, and chemical resistant seal

• Nylon insulator offers marine-grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage

• UL Listed and CSA Recognized for safety and quality assurance

• Shrinks to one-third of original size for a secure fit and strain relief

• Operates effectively within a temperature range of 40°C to 110°C (104°F to 230°F)

• Built-in heat-activated adhesive for water-tight sealing and vibration resistance

• Tinned copper construction ensures maximum current flow and corrosion resistance

• Brazed seam for enhanced strength and durability

• Suitable for wire sizes 12-10 gauge, with a shrink diameter of 3-5 mm
