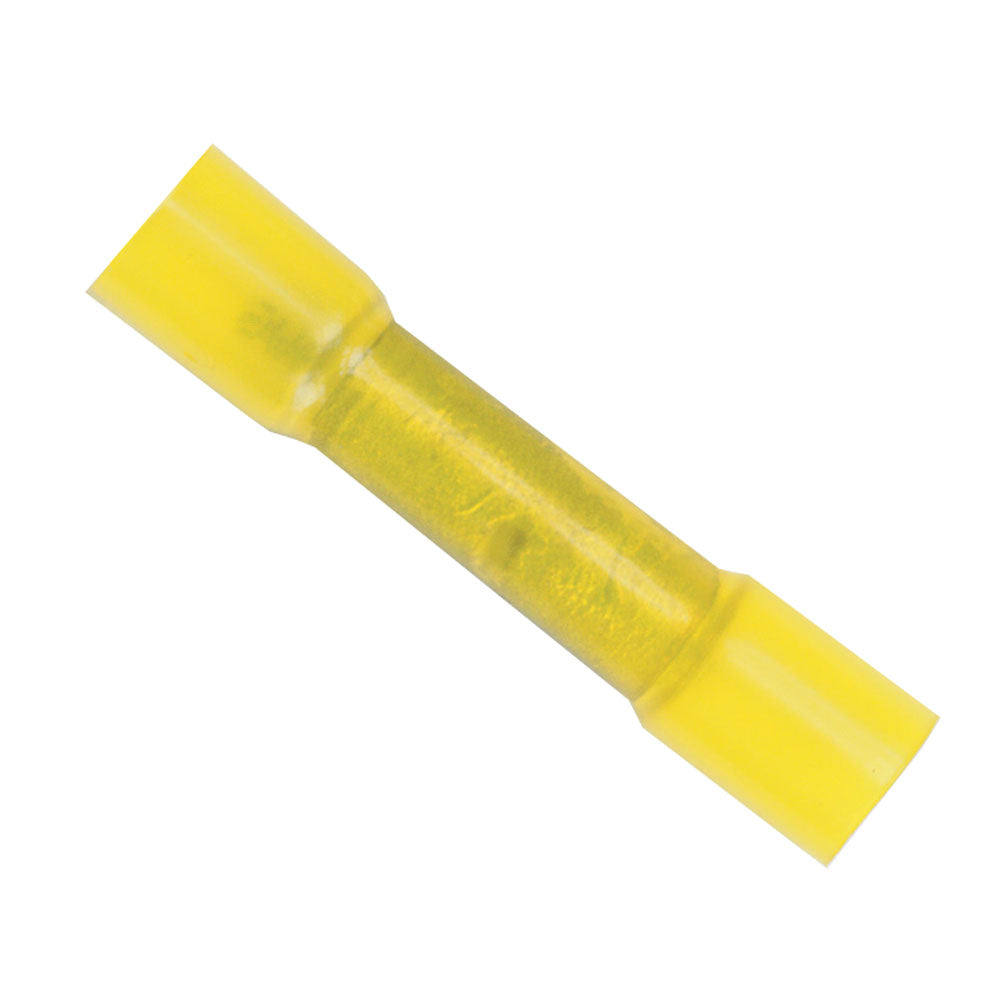

Ancor 12-10 Heatshrink Butt Connectors - 3-Pack for Marine and Automotive Wiring

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.

• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.

• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.

• UL Listed and CSA Recognized

• Highest shrink ratio - shrinks to 1/3 original size.

• Shrinks at 257 deg. F/125 deg. C.

• Operating temperature range 40 deg. C to 110 deg. C.

• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing

• Shrinks to form a water tight seal and the ultimate vibration and strain relief.

• Tinned for corrosion resistance.

• Pure copper for maximum current flow.

• Brazed seam for maximum strength.

• Wire range: 12-10

• mm: 3-5

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor 12-10 Heatshrink Butt Connectors are designed for reliable electrical connections in marine, automotive, and other demanding environments. Each connector features a cross-linked polyolefin tubing that offers superior strength compared to PVC, ensuring durability without the risk of burning during installation. The heat-activated adhesive lining provides an impervious seal against salt water, oil, acids, and sunlight, while also delivering strain relief to maintain a secure connection over time. The nylon insulator used in these connectors is preferred by industry professionals for its exceptional resistance to sunlight, water, oil, chemicals, vibration, and potential cut-through damage, making it ideal for harsh conditions.

These connectors are UL Listed and CSA Recognized, ensuring compliance with safety standards. They boast a high shrink ratio, shrinking to approximately one-third of their original size when heated to 257°F (125°C), with an operating temperature range from 40°C to 110°C. The heat-shrink process creates a waterproof seal that provides excellent vibration and strain relief, protecting electrical connections from environmental stressors. Tinned for corrosion resistance and made from pure copper, these connectors facilitate maximum current flow. The brazed seam enhances overall strength, ensuring a durable connection for demanding applications. Suitable for wire ranges from 12 to 10 gauge, these connectors are a reliable choice for secure, long-lasting electrical terminations in marine and automotive systems.

Features:

• Cross-linked polyolefin tubing for superior strength and heat resistance

• Heat-activated adhesive lining provides a waterproof seal and strain relief

• Nylon insulator for marine-grade resistance to sunlight, water, and chemicals

• UL Listed and CSA Recognized for safety and quality assurance

• Shrinks to one-third of original size for a secure fit

• Operates effectively within temperature range of 40°C to 110°C

• Corrosion-resistant tinned copper construction for maximum current flow

• Brazed seam for enhanced durability and strength

• Suitable for wire gauges 12-10

• Pre-packaged 3-piece set for versatile use
