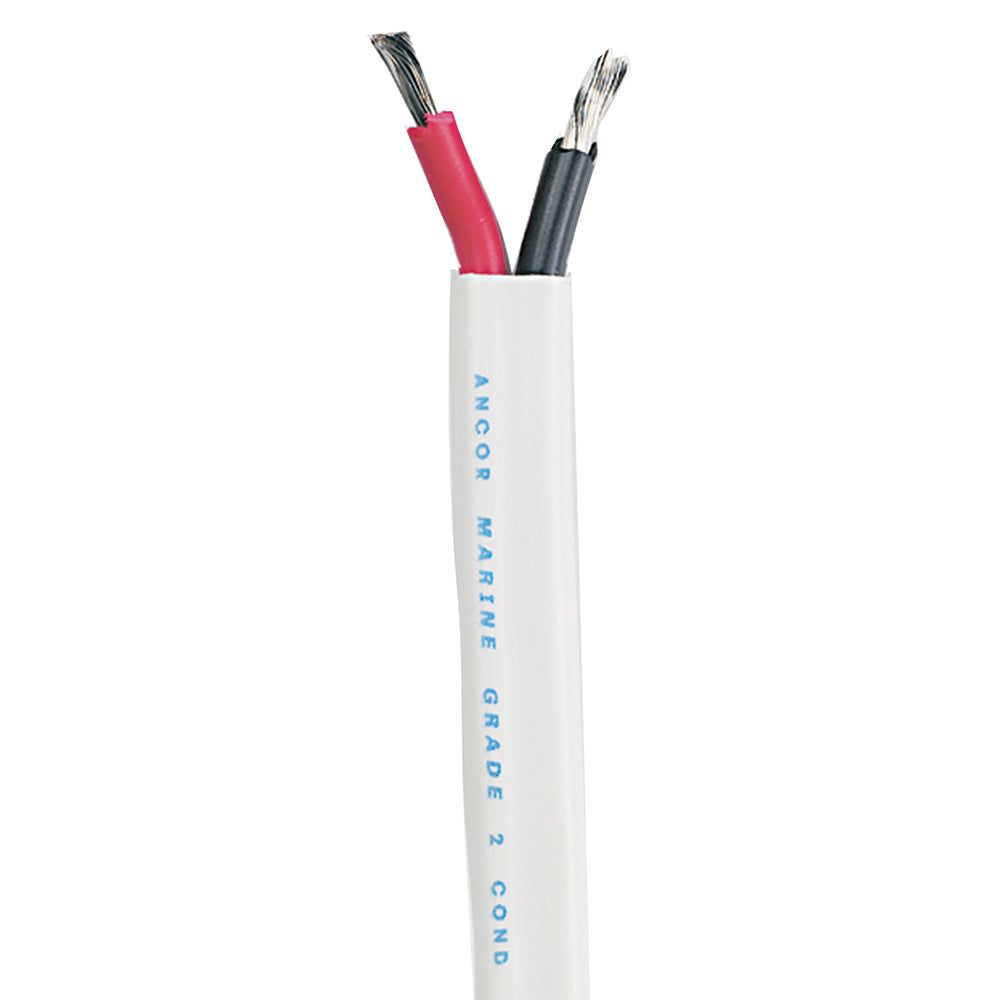

Ancor 14/2 AWG Duplex Marine Grade Cable - Red and Black, Sold by the Foot

14/2 AWG Duplex Cable - Red/Black - Sold By The Foot

Ancor is the original Marine Grade wire. This means that all of our wire and cable is built to withstand the harsh marine environment. Proprietary jacketing material is extremely UV and corrosion resistant. Individually tinned wire strands ensure optimal conductivity.

Features:

• Ultra flexible
• Highly flexible color coded wire insulation
• Stranded, tinned copper conductors

Compliances:

• UL Standard - 1426
• U.S.C.G - Title 46
• ABYC

Technical Specifications:

• Conductor - Type III
• Insulation -40 C to 105 C flexible
• Voltage Rating - 600-V
• Resistant to - salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation
• No. of Conductors - 2
• Type of Cable - Duplex

*Sold by the Foot

The Ancor 14/2 AWG Duplex Cable is specially designed for marine applications, offering superior durability and flexibility. Constructed with marine-grade materials, this cable features proprietary UV and corrosion-resistant jacketing, ensuring reliable performance in harsh marine environments. The individually tinned copper strands provide optimal conductivity, making it ideal for wiring marine electronics, lighting, and other onboard systems. Its ultra-flexible design simplifies installation, even in tight spaces, while the color-coded insulation enhances safety and ease of identification during setup and maintenance. Certified to UL Standard 1426, U.S.C.G - Title 46, and ABYC standards, this cable meets rigorous safety and quality benchmarks for marine use. The cable's Type III conductor and flexible insulation temperature range of -40°C to 105°C allow it to withstand extreme conditions, from saltwater exposure to battery acid, oil, gasoline, heat, abrasion, and UV radiation. With a voltage rating of 600 volts and two conductors, this duplex cable provides a reliable wiring solution for various marine electrical applications. Sold by the foot, it enables precise lengths tailored to your project needs, ensuring cost efficiency and convenience for boat builders, technicians, and DIY enthusiasts alike.

Features:

• Ultra flexible design for easy installation

• Highly flexible, color-coded wire insulation for safety and identification

• Stranded, tinned copper conductors for optimal conductivity

• Built for marine environments with UV and corrosion-resistant jacketing

• Meets UL Standard 1426, U.S.C.G - Title 46, and ABYC compliance standards

• Temperature range of -40°C to 105°C for durability in extreme conditions

• Voltage rating of 600 volts with two conductors for versatile wiring applications
