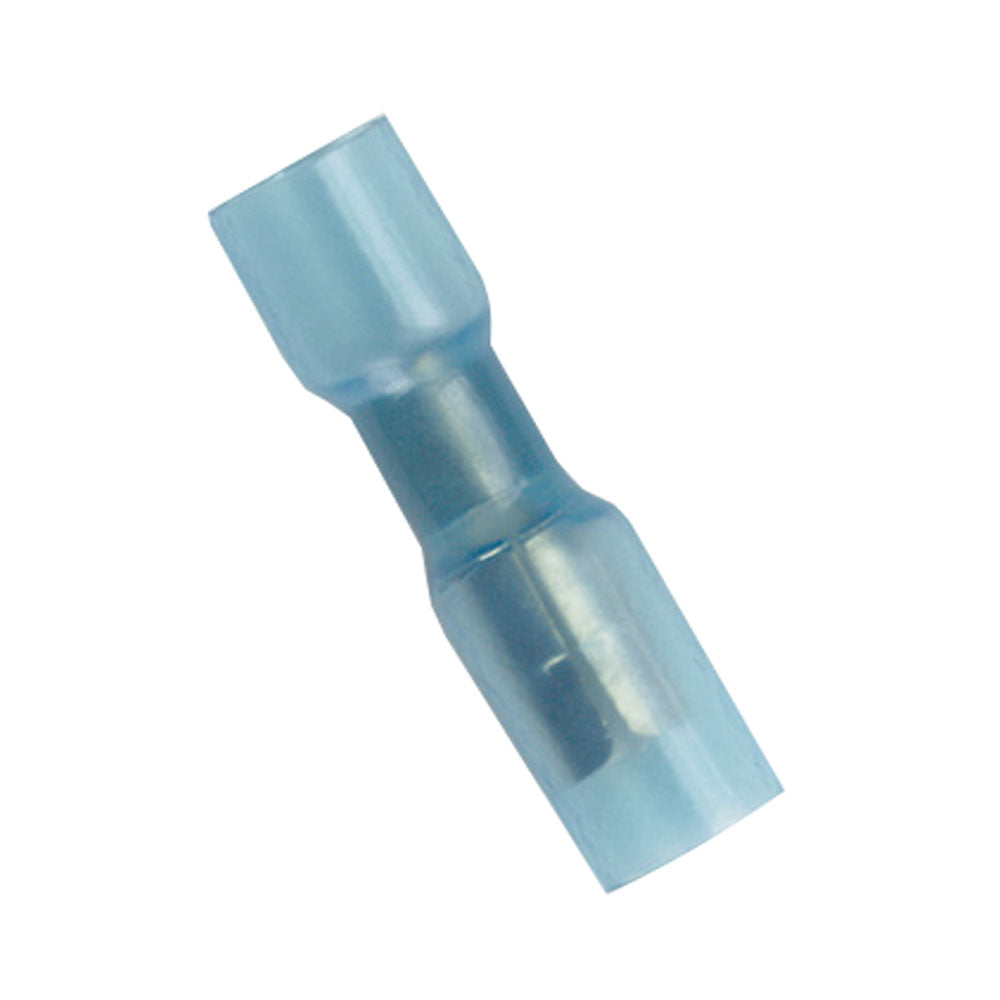

Ancor 16-14 Female Heatshrink Snap Plug - 100-Pack for Marine and Electrical Applications

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.

• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.

• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.

• UL Listed and CSA Recognized

• Highest shrink ratio - shrinks to 1/3 original size.

• Shrinks at 257 deg. F/125 deg. C.

• Operating temperature range 40 deg. C to 110 deg. C.

• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing

• Shrinks to form a water tight seal and the ultimate vibration and strain relief.

• Tinned for corrosion resistance.

• Pure copper for maximum current flow.

• Brazed seam for maximum strength.

• Wire Range: 16-14/.197

• Size: 3-5mm/5mm

• Gender: Female

• Qty/Pkg: 100

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor 16-14 Female Heatshrink Snap Plug (Part Number 319899) offers a reliable connection solution designed for marine and electrical applications. Constructed from high-strength cross-linked polyolefin tubing, this heat shrink connector resists burning and provides superior durability compared to PVC alternatives. The built-in heat-activated adhesive lining ensures a water-tight seal that protects against saltwater, oil, acids, and UV exposure, making it ideal for demanding environments. The nylon insulator, chosen by industry experts, provides exceptional resistance to sunlight, water, oil, chemicals, vibration, and physical damage, ensuring long-lasting performance.

These connectors are UL Listed and CSA Recognized, meeting rigorous safety standards. The heat shrink process offers a high shrink ratio, reducing the connector to one-third of its original size when heated to 257°F (125°C). The operating temperature range spans from 40°C to 110°C, allowing for versatile use across various conditions. Ancor's heat shrink connectors feature a brazed seam for maximum strength and corrosion resistance, with tinned pure copper for optimal electrical conductivity and longevity. The connectors are designed to fit wire ranges from 16 to 14 American wire gauge, with a size suitable for 3-5mm or 5mm diameter wires.

This 100-pack provides ample supply for multiple projects, ensuring consistent and secure electrical connections. Perfect for marine, automotive, and industrial applications, these female heat shrink snap plugs offer strain relief, vibration resistance, and moisture sealing in a compact, easy-to-use design. Trust Ancor's quality and durability to maintain safe and reliable electrical connections in harsh conditions.

Features:

• Cross-linked polyolefin tubing is stronger than PVC and resistant to burning.

• Heat-activated adhesive lining provides a water-tight seal and strain relief.

• Nylon insulator offers resistance to sunlight, water, oil, chemicals, and vibration.

• UL Listed and CSA Recognized for safety and quality assurance.

• Shrink ratio reduces to one-third of original size for a compact fit.

• Shrinks at 257°F (125°C) for secure installation.

• Operates within a temperature range of 40°C to 110°C for versatile use.

• Built-in adhesive ensures a water-tight seal and vibration resistance.

• Tinned copper construction provides maximum corrosion resistance and electrical conductivity.

• Brazed seam enhances connector strength and durability.

• Suitable for wire sizes 16-14 American wire gauge or 3-5mm diameter.
