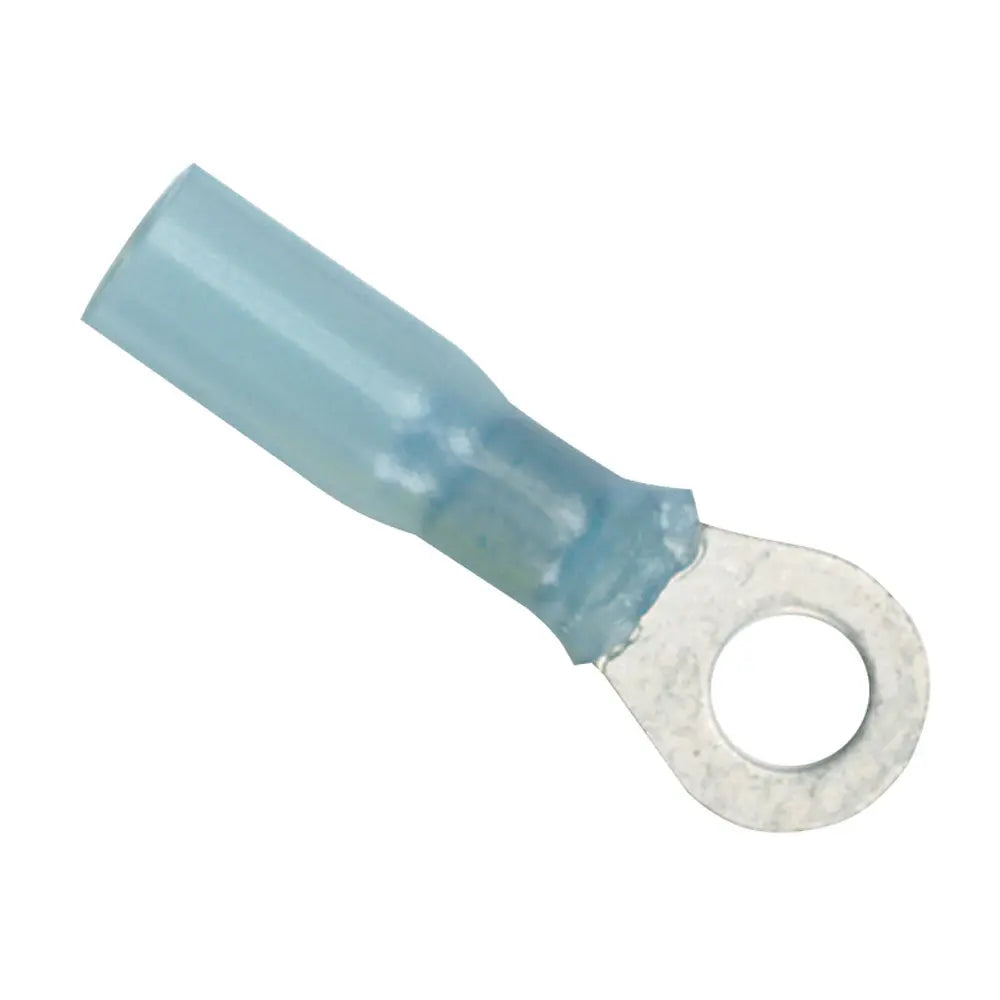

Ancor 16-14 Gauge 1/4-Inch Heat Shrink Ring Terminal - 25 Pack

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC

• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief

• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage

• UL Listed and CSA Recognized

• Highest shrink ratio - shrinks to 1/3 original size

• Shrinks at 257 F/125 C

• Operating temperature range 40 C to 110 C

• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing

• Shrinks to form a water tight seal and the ultimate vibration and strain relief

• Tinned for corrosion resistance

• Pure copper for maximum current flow

• Brazed seam for maximum strength

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor 16-14 gauge 1/4-inch heat shrink ring terminal is designed for secure and reliable electrical connections in demanding environments. Manufactured with cross-linked polyolefin tubing, this terminal offers superior strength compared to PVC and resists burning or melting under high temperatures. The heat-activated adhesive lining ensures an impervious seal against moisture, saltwater, oil, acids, and UV exposure, making it ideal for marine and outdoor applications. The nylon insulator provides excellent resistance to sunlight, water, chemicals, vibration, and mechanical wear, ensuring long-lasting performance in harsh conditions. UL listed and CSA recognized, these terminals are built to meet rigorous safety standards. The high shrink ratio allows the tubing to shrink to one-third of its original size at 257°F (125°C), forming a tight, waterproof seal that enhances strain relief and vibration resistance. Constructed with tinned pure copper, the terminals provide maximum current flow and corrosion resistance, while the brazed seam adds strength and durability to withstand mechanical stress. Designed for easy installation, these terminals deliver reliable electrical connections in automotive, marine, and industrial wiring projects, ensuring safety and longevity. Whether upgrading existing wiring or installing new systems, the Ancor heat shrink ring terminals are a dependable choice for professionals and DIY enthusiasts alike.

Features:

• Cross-linked polyolefin tubing provides superior strength and heat resistance compared to PVC

• Heat-activated adhesive lining creates a water-tight, corrosion-resistant seal and strain relief

• Nylon insulator offers marine-grade resistance to sunlight, water, oil, chemicals, and vibration

• UL listed and CSA recognized for safety and quality assurance

• Shrink ratio of 3:1 allows the tubing to shrink to one-third of its original size at 257°F (125°C)

• Operates effectively within a temperature range of 40°C to 110°C (104°F to 230°F)

• Built-in adhesive enhances sealing and vibration resistance

• Tinned for improved corrosion resistance and durability

• Made with pure copper for maximum electrical conductivity

• Brazed seam construction for added strength and mechanical integrity
