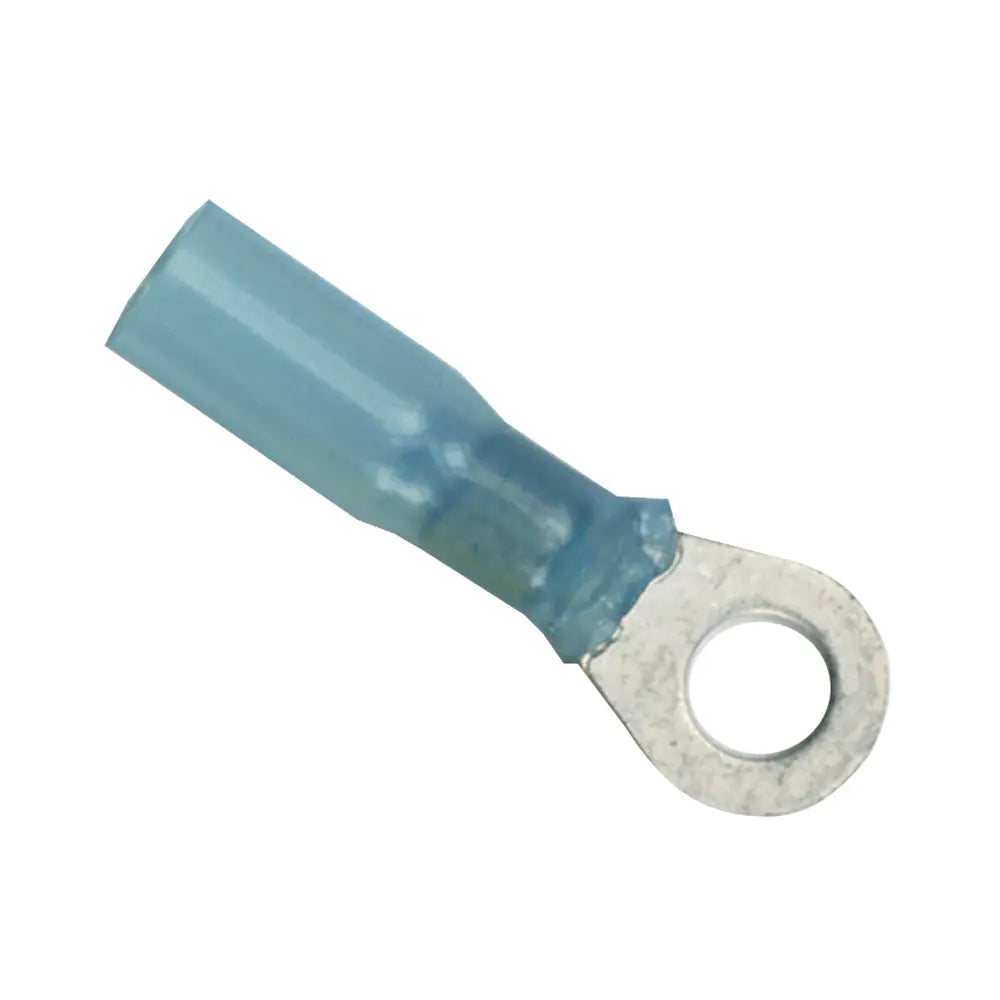

Ancor 16-14 Gauge 5/16" Heat Shrink Ring Terminal Set (3 Pack)

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC

• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief

• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage

• UL Listed and CSA Recognized

• Highest shrink ratio - shrinks to 1/3 original size

• Shrinks at 257 F/125 C

• Operating temperature range 40 C to 110 C

• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing

• Shrinks to form a water tight seal and the ultimate vibration and strain relief

• Tinned for corrosion resistance

• Pure copper for maximum current flow

• Brazed seam for maximum strength

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor 16-14 Gauge 5/16" Heat Shrink Ring Terminal Set offers a reliable and professional-grade solution for secure electrical connections in demanding environments. Crafted from pure copper, these terminals ensure maximum current flow while providing exceptional corrosion resistance thanks to their tinned finish. Designed with a brazed seam, they deliver enhanced strength and durability suitable for marine, automotive, and industrial applications. Each terminal features a heat-activated adhesive lining that creates a waterproof seal, effectively resisting salt water, oil, acids, and sunlight, while also providing strain relief to prevent wire damage over time. The cross-linked polyolefin tubing used in these terminals is significantly stronger than traditional PVC options and does not burn like PVC when exposed to heat, making it ideal for high-stress environments. These terminals are UL Listed and CSA Recognized, ensuring they meet stringent safety and quality standards. The high shrink ratio allows the tubing to shrink to one-third of its original size at 257°F (125°C), forming a tight, waterproof seal that offers superior vibration and strain relief. The nylon insulator is preferred by professionals for its resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage, making these ring terminals a dependable choice for marine-grade wiring projects. Operating within a temperature range from 40°C to 110°C, these terminals are versatile and suitable for various applications that demand durability and reliable electrical connections. Each pack contains three ring terminals that accommodate wires within the 16-14 gauge range and feature a 5/16-inch screw size for easy installation and compatibility. Whether used for marine, automotive, or industrial wiring, the Ancor heat shrink ring terminals provide a secure, sealed, and corrosion-resistant connection that stands up to the toughest conditions.

Features:

• Cross linked polyolefin tubing that is stronger than PVC and resistant to burning

• Heat activated adhesive lining providing an impervious seal against water, oil, and chemicals

• Nylon insulator for marine-grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage

• UL Listed and CSA Recognized for safety and quality assurance

• Highest shrink ratio, shrinking to one-third of original size at 257°F (125°C)

• Temperature operating range from 40°C to 110°C

• Heat shrink tubing with built-in adhesive for water-tight sealing and strain relief

• Tinned for corrosion resistance and made of pure copper for maximum current flow

• Brazed seam for added strength and durability

• Pack of three ring terminals compatible with 16-14 gauge wires and 5/16" screw size
