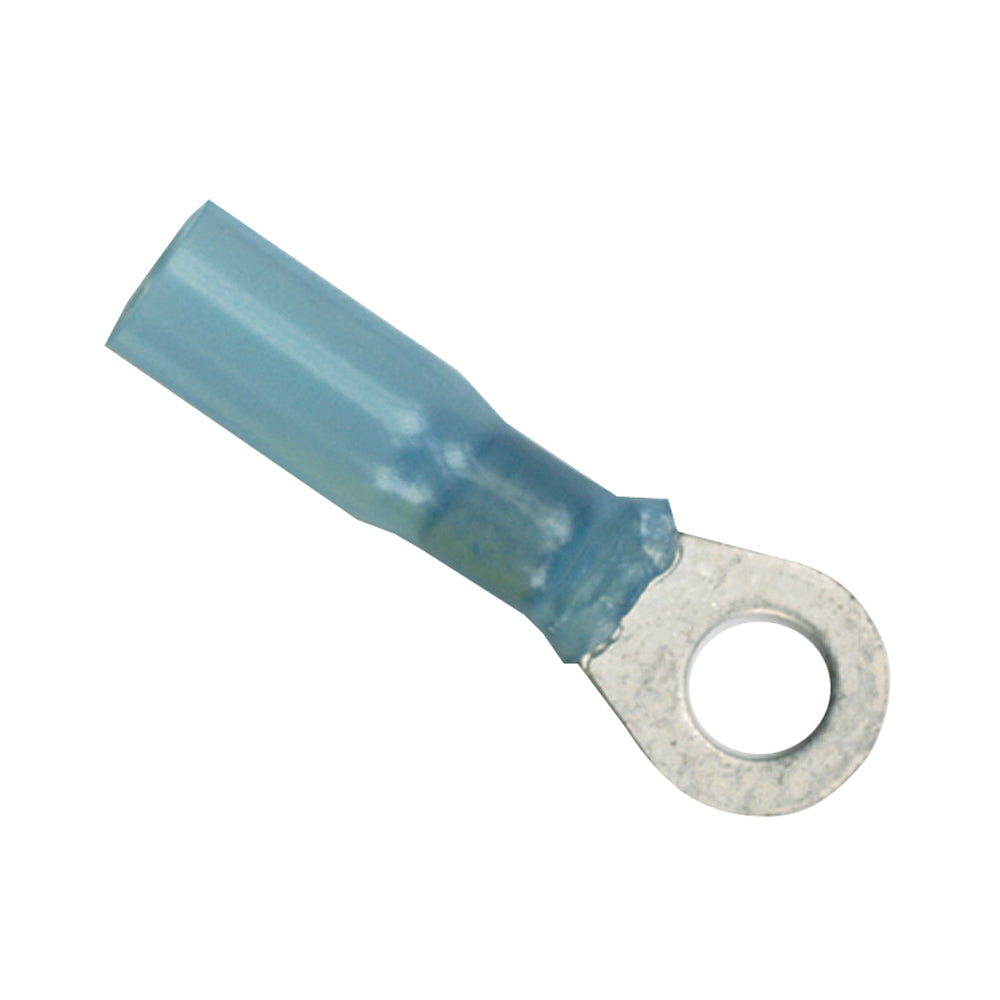

Ancor 16-14 Gauge 5/16 inch Heat Shrink Ring Terminal - 100 Pack for Marine and Automotive Wiring

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC

• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief

• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage

• UL Listed and CSA Recognized

• Highest shrink ratio - shrinks to 1/3 original size

• Shrinks at 257 F/125 C

• Operating temperature range 40 C to 110 C

• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing

• Shrinks to form a water tight seal and the ultimate vibration and strain relief

• Tinned for corrosion resistance

• Pure copper for maximum current flow

• Brazed seam for maximum strength

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor 16-14 Gauge 5/16 inch Heat Shrink Ring Terminal is designed for secure and reliable electrical connections in demanding environments. Constructed with cross-linked polyolefin tubing, this terminal offers superior strength compared to PVC and withstands high temperatures without burning or degrading. The heat-activated adhesive lining creates an impervious seal against salt water, oil, acids, and sunlight, ensuring long-lasting protection against corrosion and environmental damage. Its nylon insulator, preferred by industry professionals, provides marine-grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage, making it ideal for marine, automotive, and industrial applications. UL listed and CSA recognized, this terminal guarantees safety and quality standards are met. With a high shrink ratio of up to one-third of its original size, it shrinks at 257°F (125°C), forming a water-tight seal that enhances vibration resistance and strain relief. Tinned for added corrosion resistance and made from pure copper, it ensures maximum current flow and electrical conductivity. The brazed seam offers maximum strength and durability, providing a dependable connection in challenging environments. This 100-pack of terminals is suitable for wire ranges from 16 to 14 gauge and fits a 5/16 inch screw size, making it versatile for various wiring projects. Whether for marine, automotive, or industrial use, the Ancor heat shrink ring terminals deliver high performance, reliability, and ease of installation, ensuring your electrical connections are protected and secure over time. Please note, this product may contain chemicals such as DEHP, which are recognized to cause health concerns, and appropriate safety precautions should be observed.

Features:

• Cross-linked polyolefin tubing provides superior strength and heat resistance compared to PVC

• Heat-activated adhesive lining ensures a waterproof seal against salt water, oil, acids, and sunlight

• Nylon insulator offers marine-grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage

• UL Listed and CSA Recognized for safety and quality assurance

• High shrink ratio shrinks to one-third of original size for a tight, water-proof seal

• Shrinks at 257°F (125°C) for quick and reliable installation

• Operating temperature range from 40°C to 110°C ensures durability in extreme conditions

• Built-in heat-activated adhesive provides strain relief and vibration resistance

• Tinned copper construction offers excellent corrosion resistance and maximum current flow

• Brazed seam enhances the strength and durability of the terminal
