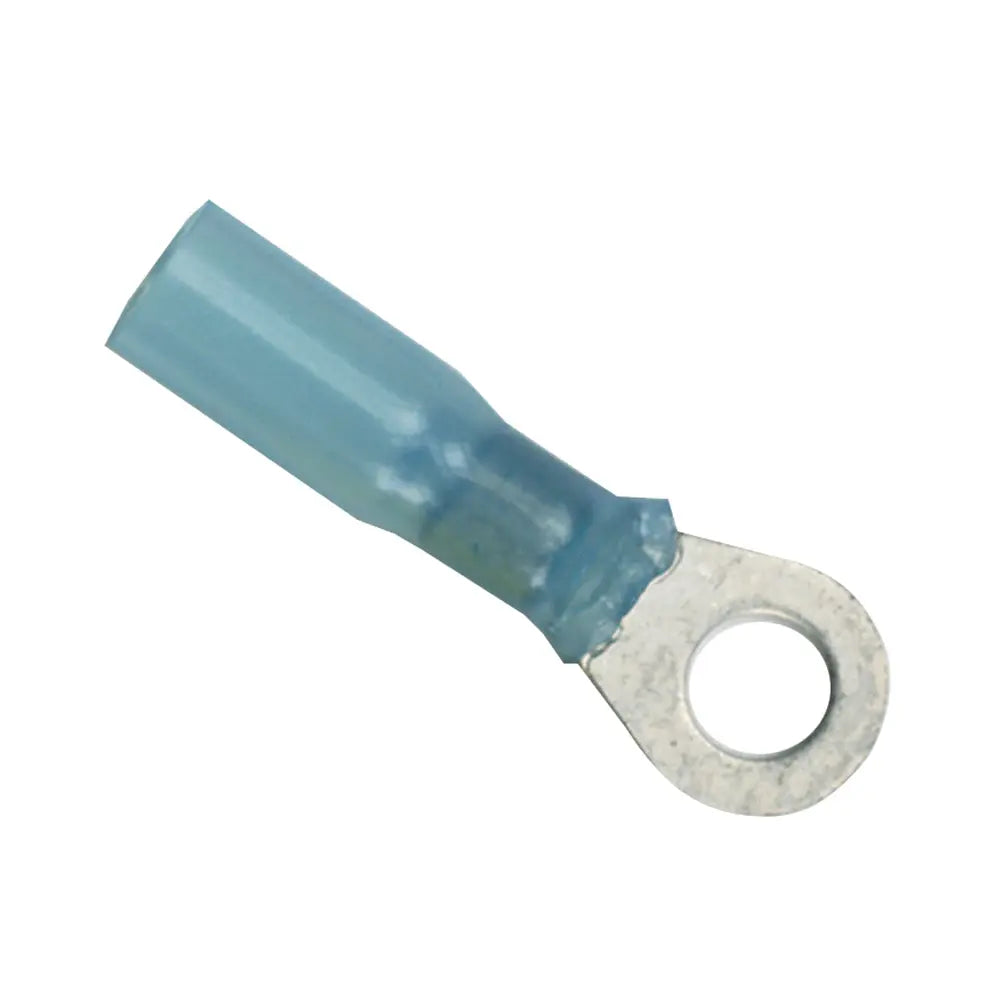

Ancor 16-14 Gauge 5/16 inch Heat Shrink Ring Terminal - 25 Pack for Marine and Electrical Applications

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC

• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief

• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage

• UL Listed and CSA Recognized

• Highest shrink ratio - shrinks to 1/3 original size

• Shrinks at 257 F/125 C

• Operating temperature range 40 C to 110 C

• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing

• Shrinks to form a water tight seal and the ultimate vibration and strain relief

• Tinned for corrosion resistance

• Pure copper for maximum current flow

• Brazed seam for maximum strength

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor 16-14 Gauge 5/16 inch heat shrink ring terminal is designed for secure and reliable electrical connections in demanding environments. Constructed with cross-linked polyolefin tubing, this terminal is significantly stronger and more durable than traditional PVC options, ensuring long-lasting performance. The heat-activated adhesive lining creates a watertight seal that resists saltwater, oil, acids, and UV exposure, making it ideal for marine and outdoor applications. The nylon insulator offers superior resistance to sunlight, water, oil, chemicals, vibration, and mechanical damage, providing added protection for critical electrical connections.
These terminals feature a high shrink ratio, shrinking to one-third of their original size at 257°F (125°C), which ensures a tight fit and strain relief. The tinned copper construction enhances corrosion resistance and maximizes current flow, while the brazed seam provides maximum strength and durability. Designed for easy installation, the terminals accommodate wire ranges from 16 to 14 gauge and fit a 5/16-inch screw size. Certified by UL and CSA, they meet rigorous safety standards for electrical components.
Whether used in marine, automotive, or industrial settings, the Ancor heat shrink ring terminals deliver dependable electrical connections that withstand harsh conditions. Their compact design and high-performance materials make them an excellent choice for professional installers and DIY enthusiasts alike. The 25-pack offers ample supply for multiple projects, ensuring you have reliable connectors on hand for ongoing maintenance and new installations.

Features:

• Cross-linked polyolefin tubing for increased strength and durability over PVC

• Heat-activated adhesive lining provides a waterproof seal and strain relief

• Nylon insulator offers marine-grade resistance to sunlight, water, oil, chemicals, and vibration

• UL Listed and CSA Recognized for safety and quality assurance

• Shrinks to one-third of original size at 257°F (125°C) for a secure fit

• Made from tinned copper for corrosion resistance and maximum current flow

• Brazed seam enhances connector strength and reliability

• Suitable for wire sizes 16-14 gauge with 5/16-inch screw compatibility
