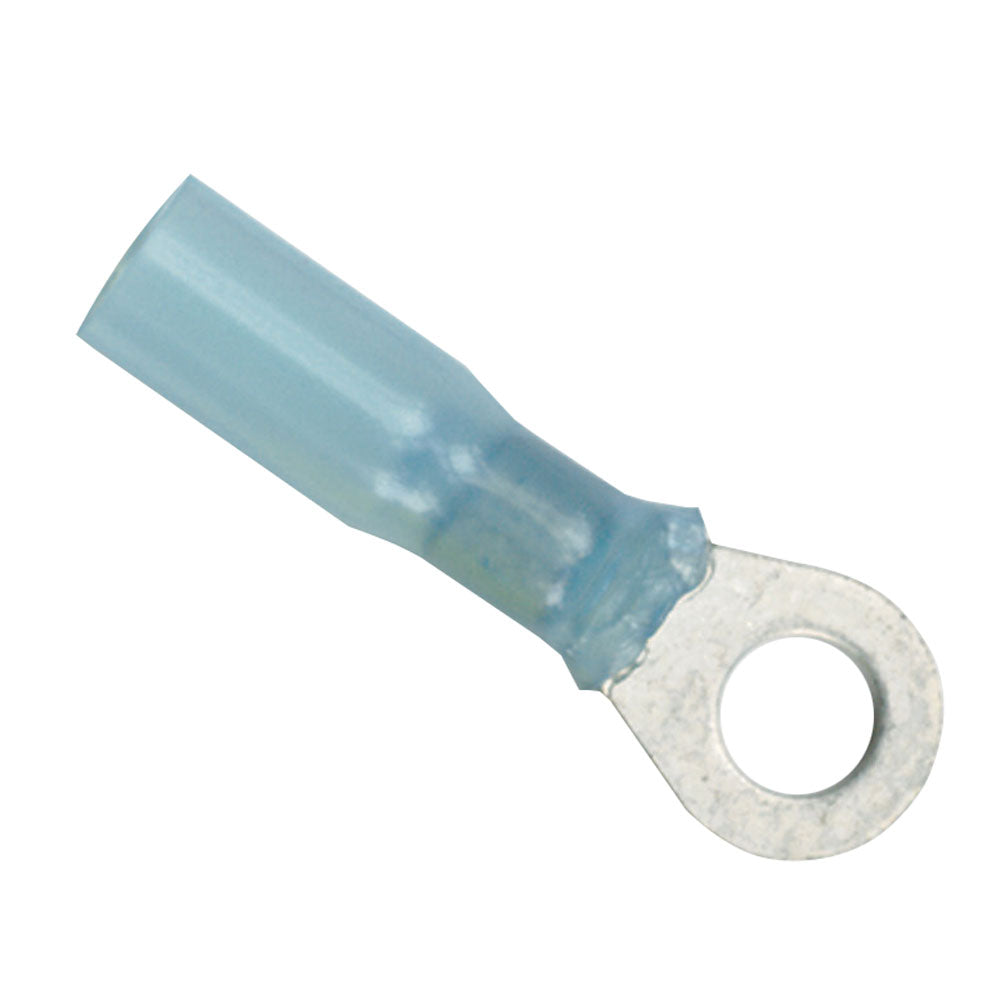

Ancor 16-14 Gauge #8 Heat Shrink Ring Terminal - 25 Pack

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.

• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.

• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.

• UL Listed and CSA Recognized

• Highest shrink ratio - shrinks to 1/3 original size.

• Shrinks at 257 deg. F/125 deg. C.

• Operating temperature range 40 deg. C to 110 deg. C.

• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing

• Shrinks to form a water tight seal and the ultimate vibration and strain relief.

• Tinned for corrosion resistance.

• Pure copper for maximum current flow.

• Brazed seam for maximum strength.

• Wire Range: 16-14

• mm: 1-2

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor 16-14 Gauge #8 Heat Shrink Ring Terminal offers a reliable solution for secure electrical connections in demanding environments. Crafted from pure copper, these terminals ensure maximum current flow, while a brazed seam enhances durability and strength. The nylon insulator, favored by industry professionals, provides marine-grade resistance to sunlight, water, oil, chemicals, vibration, and abrasion, making these terminals ideal for marine, automotive, and industrial applications. The heat-activated adhesive lining creates an impervious seal against salt water, acids, and sunlight, delivering excellent strain relief and protection against corrosion. With a high shrink ratio, these terminals shrink to one-third of their original size when heated to 257°F (125°C), forming a watertight seal that resists harsh environmental factors. The product is UL Listed and CSA Recognized, ensuring compliance with safety standards. Designed to fit wire sizes 16-14 gauge with a #8 screw size, these terminals are versatile and easy to install. The dual-layer cross-linked polyolefin tubing is stronger than PVC and does not burn, providing additional safety during installation. Operating within a temperature range of 40°C to 110°C, these terminals are suitable for a variety of high-demand applications. The tinned finish further enhances corrosion resistance, ensuring longevity and reliable performance over time.

Features:

• Cross linked polyolefin tubing is stronger than PVC and fire resistant

• Heat activated adhesive lining provides an impervious seal against salt water, oils, acids, and sunlight

• Nylon insulator offers marine-grade resistance to sunlight, water, oil, chemicals, vibration, and damage

• UL Listed and CSA Recognized for safety and compliance

• High shrink ratio shrinks to one-third of original size for a tight, waterproof fit

• Shrinks at 257°F (125°C) for quick installation

• Operating temperature range from 40°C to 110°C (104°F to 230°F)

• Heat shrink connectors include built-in adhesive for water tight sealing and strain relief

• Tinned for enhanced corrosion resistance

• Made from pure copper for maximum current flow and durability

• Brazed seam construction for maximum strength

• Designed for wire sizes 16-14 gauge with #8 screw compatibility
