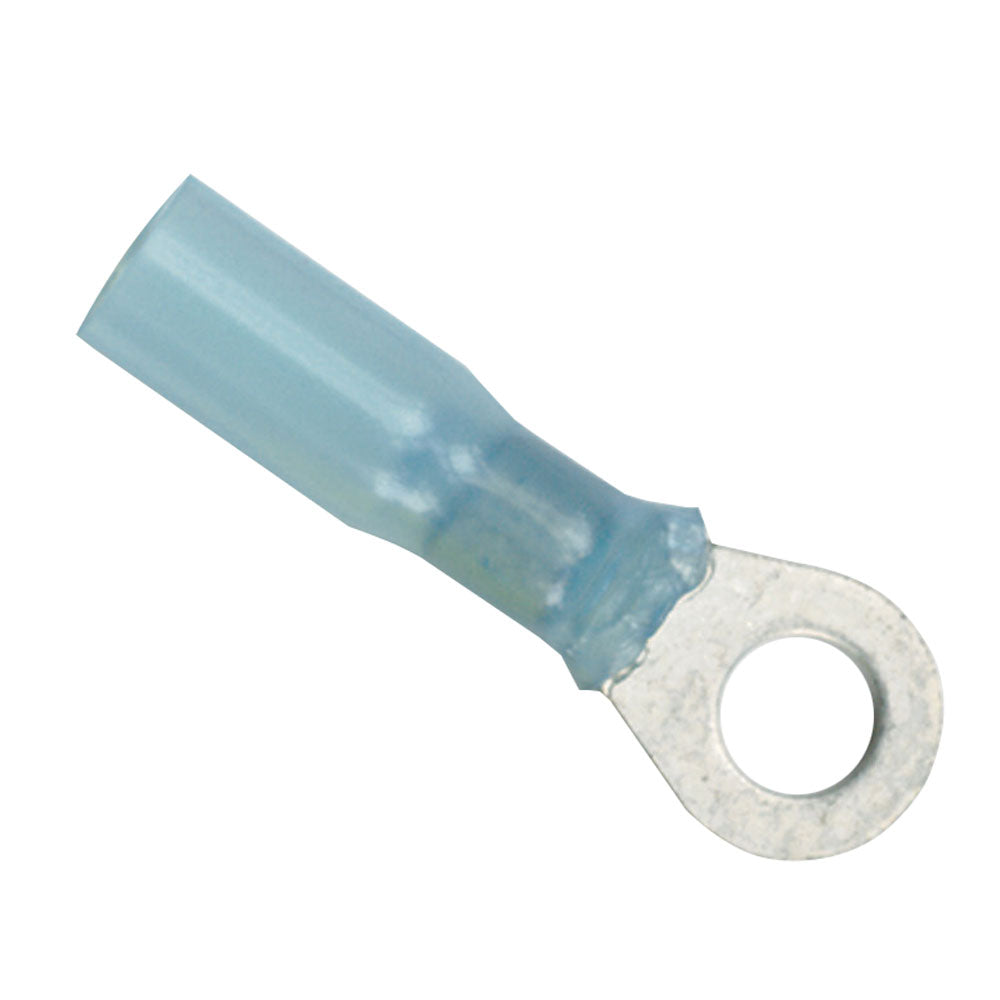

Ancor 16-14 Gauge #8 Heat Shrink Ring Terminals - 3-Pack for Marine and Electrical Applications

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.

• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.

• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.

• UL Listed and CSA Recognized

• Highest shrink ratio - shrinks to 1/3 original size.

• Shrinks at 257 deg. F/125 deg. C.

• Operating temperature range 40 deg. C to 110 deg. C.

• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing

• Shrinks to form a water tight seal and the ultimate vibration and strain relief.

• Tinned for corrosion resistance.

• Pure copper for maximum current flow.

• Brazed seam for maximum strength.

• Wire Range: 16-14

• mm: 1-2


WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor 16-14 Gauge #8 Heat Shrink Ring Terminals are designed for secure and reliable electrical connections in demanding environments. Constructed with high-quality materials, these terminals feature cross-linked polyolefin tubing that offers superior strength compared to PVC, ensuring durability and resistance to heat and environmental stress. The heat-activated adhesive lining provides an excellent, impervious seal against saltwater, oil, acids, and sunlight, making these connectors ideal for marine applications. The nylon insulator adds extra protection against sunlight, water, oil, chemicals, vibration, and cut-through damage, which is essential for long-lasting electrical connections in harsh conditions. UL listed and CSA recognized, these terminals meet rigorous safety standards for professional and DIY use. They shrink to one-third of their original size at 257°F (125°C), providing a tight, waterproof seal and strain relief that prevents wire fatigue and corrosion. The pure copper construction ensures maximum current flow, while the brazed seam enhances overall strength and reliability. These connectors are designed to accommodate wire ranges from 16 to 14 gauge, with a #8 screw size for secure fastening. Tinned for corrosion resistance, they are suitable for a wide temperature operating range from 40°C to 110°C, making them versatile for various electrical and marine projects. Each pack contains three terminals, offering a cost-effective solution for multiple connections. Whether for marine, automotive, or general electrical work, the Ancor heat shrink ring terminals provide a dependable, professional connection with superior sealing, strain relief, and corrosion resistance.

Features:

• Cross linked polyolefin tubing is stronger than PVC and resistant to burning

• Heat activated adhesive lining creates an impervious seal resistant to salt water, oil, acids, and sunlight

• Nylon insulator provides marine grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage

• UL listed and CSA recognized for safety and quality assurance

• Shrinks to one-third of the original size at 257°F (125°C) for a tight, waterproof seal

• Operating temperature range from 40°C to 110°C (104°F to 230°F)

• Built-in heat-activated adhesive for strain relief and vibration resistance

• Tinned copper for corrosion resistance and maximum current flow

• Brazed seam for increased strength and durability

• Compatible with 16-14 gauge wire range and #8 screw size
