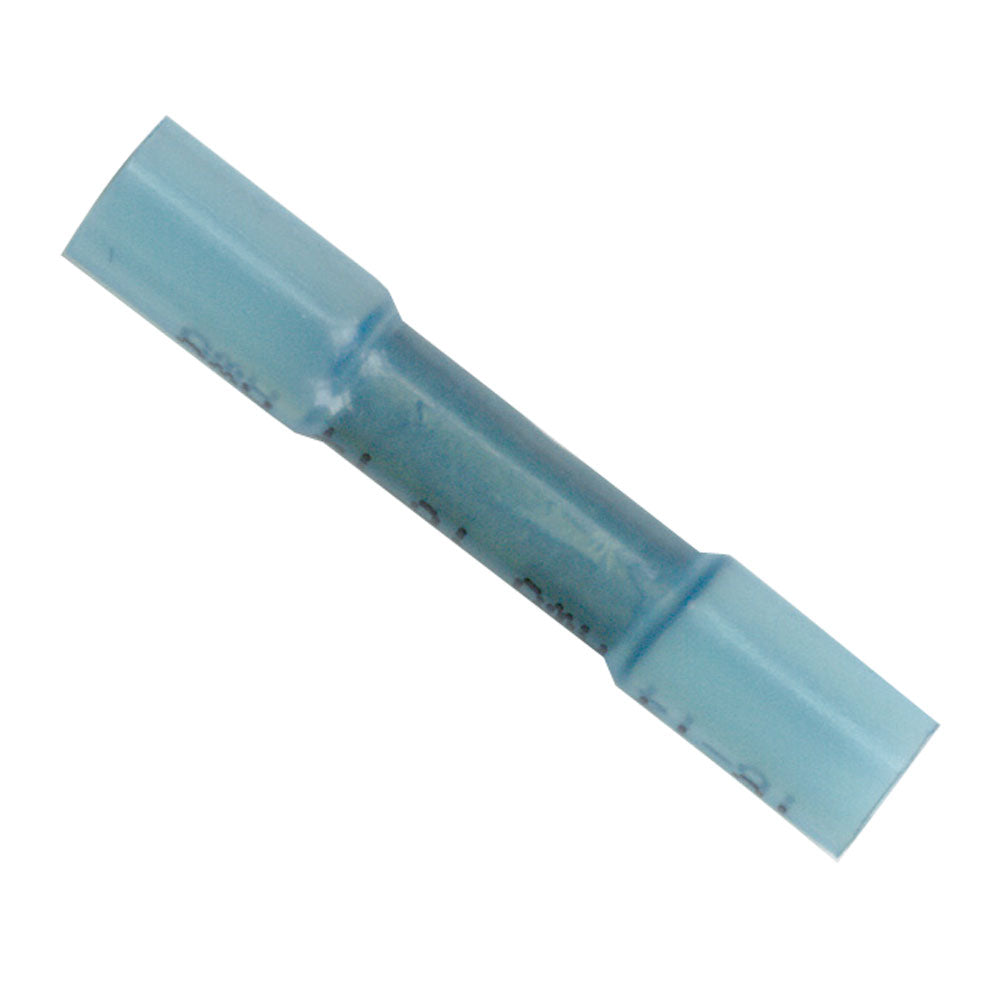

Ancor 16-14 Heatshrink Butt Connectors - 100-Pack for Reliable Marine and Automotive Wiring

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.

• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.

• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.

• UL Listed and CSA Recognized

• Highest shrink ratio - shrinks to 1/3 original size.

• Shrinks at 257 deg. F/125 deg. C.

• Operating temperature range 40 deg. C to 110 deg. C.

• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing

• Shrinks to form a water tight seal and the ultimate vibration and strain relief.

• Tinned for corrosion resistance.

• Pure copper for maximum current flow.

• Brazed seam for maximum strength.

• Wire range: 16-14

• mm: 1-2

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor 16-14 Heatshrink Butt Connectors are engineered to provide secure, corrosion-resistant connections for marine, automotive, and industrial wiring projects. Each connector features cross-linked polyolefin tubing, which is significantly stronger than traditional PVC and resistant to burning, making it ideal for demanding environments. The heat-activated adhesive lining ensures a watertight seal that prevents saltwater, oil, acids, and sunlight from compromising your connections. This adhesive also offers strain relief, protecting against mechanical stress and vibration.
Nylon insulators used in these connectors are preferred by professionals for their superior resistance to sunlight, water, oil, chemicals, and physical damage such as vibration and cut-through. They are UL Listed and CSA Recognized, ensuring safety and compliance standards are met. The connectors boast a high shrink ratio, shrinking to approximately one-third of their original size when heated to 257 degrees Fahrenheit (125 degrees Celsius), providing a tight and secure fit. They operate efficiently within a temperature range of 40°C to 110°C, suitable for a variety of environments.
Constructed from pure copper and tinned for enhanced corrosion resistance, these connectors deliver maximum current flow and durability. The brazed seam design increases overall strength, ensuring long-lasting and reliable connections. Designed to accommodate wire ranges from 16 to 14 gauge, these connectors are versatile for many wiring tasks. The product includes 100 connectors, making it a cost-effective choice for large-scale or ongoing projects. Whether used in marine applications or automotive wiring, the Ancor heat shrink connectors deliver professional-grade performance, ensuring secure, sealed, and strain-relieved electrical connections that stand the test of time.

Features:

• Cross-linked polyolefin tubing offers superior strength over PVC and resists burning.

• Heat-activated adhesive lining creates a waterproof seal to saltwater, oil, acids, and sunlight, while providing strain relief.

• Nylon insulator provides marine-grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage.

• UL Listed and CSA Recognized for safety and quality assurance.

• Shrinks to approximately one-third of original size for a tight fit at 257°F (125°C).

• Operates within a temperature range of 40°C to 110°C, suitable for various environments.

• Constructed from tinned pure copper for maximum current flow and corrosion resistance.

• Brazed seam enhances overall connector strength and durability.

• Designed for wire sizes 16-14 gauge, accommodating a wide range of wiring needs.

• Includes 100 connectors, ideal for large projects and professional applications.
