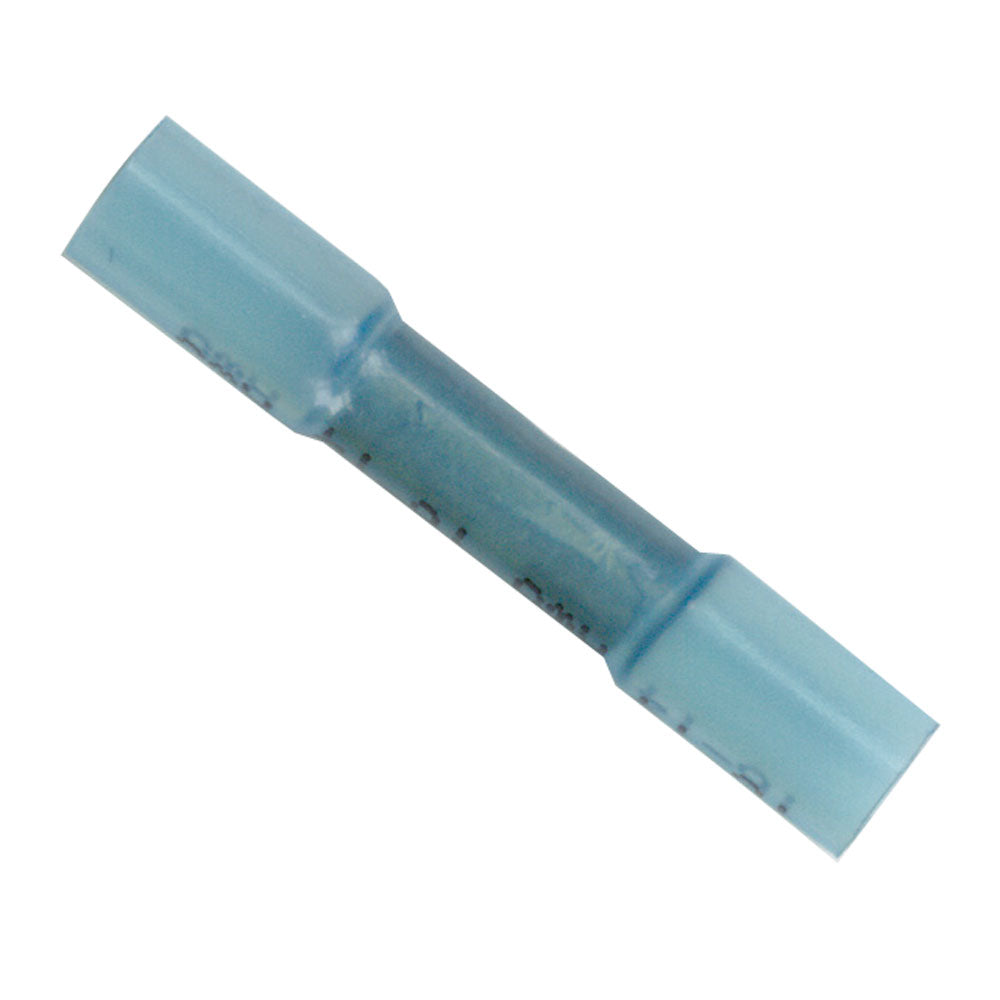

Ancor 16-14 Heatshrink Butt Connectors - 25-Pack for Marine and Electrical Applications

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.

• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.

• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.

• UL Listed and CSA Recognized

• Highest shrink ratio - shrinks to 1/3 original size.

• Shrinks at 257 deg. F/125 deg. C.

• Operating temperature range 40 deg. C to 110 deg. C.

• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing

• Shrinks to form a water tight seal and the ultimate vibration and strain relief.

• Tinned for corrosion resistance.

• Pure copper for maximum current flow.

• Brazed seam for maximum strength.

• Wire range: 16-14

• mm: 1-2

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor 16-14 Heatshrink Butt Connectors are a reliable choice for creating secure, waterproof electrical connections in marine, automotive, and industrial settings. Each connector features cross-linked polyolefin tubing that surpasses PVC in strength and durability, ensuring long-lasting performance even in harsh environments. The heat-activated adhesive lining provides an impervious seal against salt water, oil, acids, and sunlight while also offering strain relief to protect your connections from mechanical stress. Designed with nylon insulation, these connectors are resistant to UV rays, water, oil, chemicals, vibration, and potential cut-through damage, making them ideal for demanding applications. These connectors are UL listed and CSA recognized, ensuring they meet rigorous safety standards. They shrink to one-third of their original size when heated to 257°F (125°C), providing a tight, waterproof seal and strain relief that prevents corrosion and ensures solid conductivity. The high shrink ratio enables a snug fit around wires ranging from 16 to 14 gauge, with a maximum wire diameter of approximately 1/16 to 5/64 inch. Constructed from pure copper and tinned for corrosion resistance, these connectors deliver maximum current flow and durability under various operating conditions. The brazed seam adds to their overall strength, ensuring reliable performance over time. Operating within a temperature range of 40°C to 110°C (104°F to 230°F), they are suitable for a wide range of electrical environments. The connectors are designed for quick and easy installation, shrinking uniformly to form a water-tight, vibration-resistant connection. The product is shipped in a 25-pack, making it convenient for large projects or ongoing repairs. Please note, these connectors contain chemicals such as di(2-ethylhexyl)phthalate (DEHP), which may pose health risks, and proper handling is advised. Trust Ancor's quality for your marine and electrical wiring needs, ensuring safe, secure, and corrosion-resistant connections in challenging environments.

Features:

• Cross-linked polyolefin tubing offers superior strength and durability over PVC

• Heat-activated adhesive lining provides an impervious seal against water, oil, acids, and sunlight

• Nylon insulator offers marine-grade resistance to UV, water, oil, chemicals, vibration, and cut-through damage

• UL listed and CSA recognized for safety and quality assurance

• Shrink ratio of 1/3 ensures a tight, water-resistant connection

• Shrinks at 257°F (125°C) for reliable sealing and strain relief

• Operating temperature range from 40°C to 110°C (104°F to 230°F)

• Built-in heat-activated adhesive for easy installation and secure connections

• Corrosion-resistant tinned copper for optimal current flow

• Brazed seam construction enhances connector strength

• Suitable for wire gauges 16-14, with wire diameter approximately 1/16 to 5/64 inch
