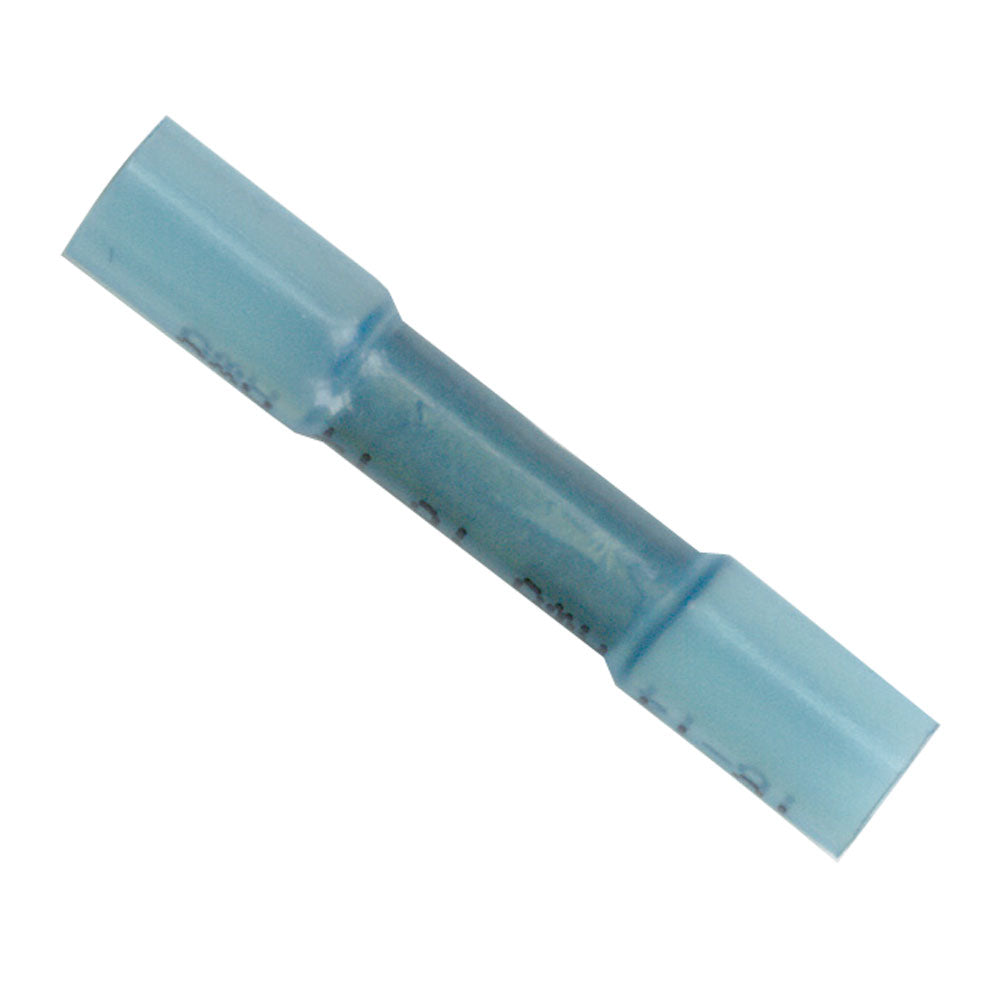

Ancor 16-14 Heatshrink Butt Connectors - 3 Pack for Marine and Automotive Wiring

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.

• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.

• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.

• UL Listed and CSA Recognized

• Highest shrink ratio - shrinks to 1/3 original size.

• Shrinks at 257 deg. F/125 deg. C.

• Operating temperature range 40 deg. C to 110 deg. C.

• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing

• Shrinks to form a water tight seal and the ultimate vibration and strain relief.

• Tinned for corrosion resistance.

• Pure copper for maximum current flow.

• Brazed seam for maximum strength.

• Wire range: 16-14

• mm: 1-2

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor 16-14 Heatshrink Butt Connectors provide a reliable and professional solution for splicing wires in marine, automotive, and other electrical applications. These connectors feature a cross-linked polyolefin tubing that is significantly stronger than standard PVC, offering enhanced durability and resistance to harsh environments. The heat-activated adhesive lining creates a waterproof seal, protecting connections from saltwater, oil, acids, and UV damage while providing strain relief to ensure long-lasting performance. The nylon insulator, favored by experts, delivers superior resistance to sunlight, water, oil, chemicals, vibration, and mechanical stress, making these connectors ideal for demanding conditions. UL listed and CSA recognized, they meet rigorous safety and quality standards. With a high shrink ratio, these connectors shrink to one-third of their original size when heated to 257°F (125°C), ensuring a snug fit that forms a watertight seal and prevents corrosion. Constructed from pure copper, these connectors maximize current flow and are tinned for added corrosion resistance. The brazed seam enhances overall strength and reliability, providing a secure connection for wires ranging from gauge sizes 16 to 14. The connectors are designed with a 1-2 mm diameter sleeve, suitable for various wiring projects. Whether used in marine, automotive, or general electrical work, the Ancor heat shrink connectors deliver exceptional performance, durability, and safety for your wiring needs.

Features:

• Cross-linked polyolefin tubing stronger than PVC and resistant to burning

• Heat-activated adhesive lining creates a waterproof and strain-relief seal

• Nylon insulator offers marine-grade resistance to sunlight, water, oil, and chemicals

• UL Listed and CSA Recognized for safety and quality assurance

• Shrinks to one-third of original size at 257°F (125°C) for a tight, secure fit

• Operates within a temperature range of 40°C to 110°C (104°F to 230°F)

• Built-in adhesive for water-tight sealing and vibration protection

• Tinned for corrosion resistance and made from pure copper for optimal current flow

• Brazed seam for maximum strength and durability

• Suitable for wire gauges 16-14, with a sleeve diameter of 1-2 mm
