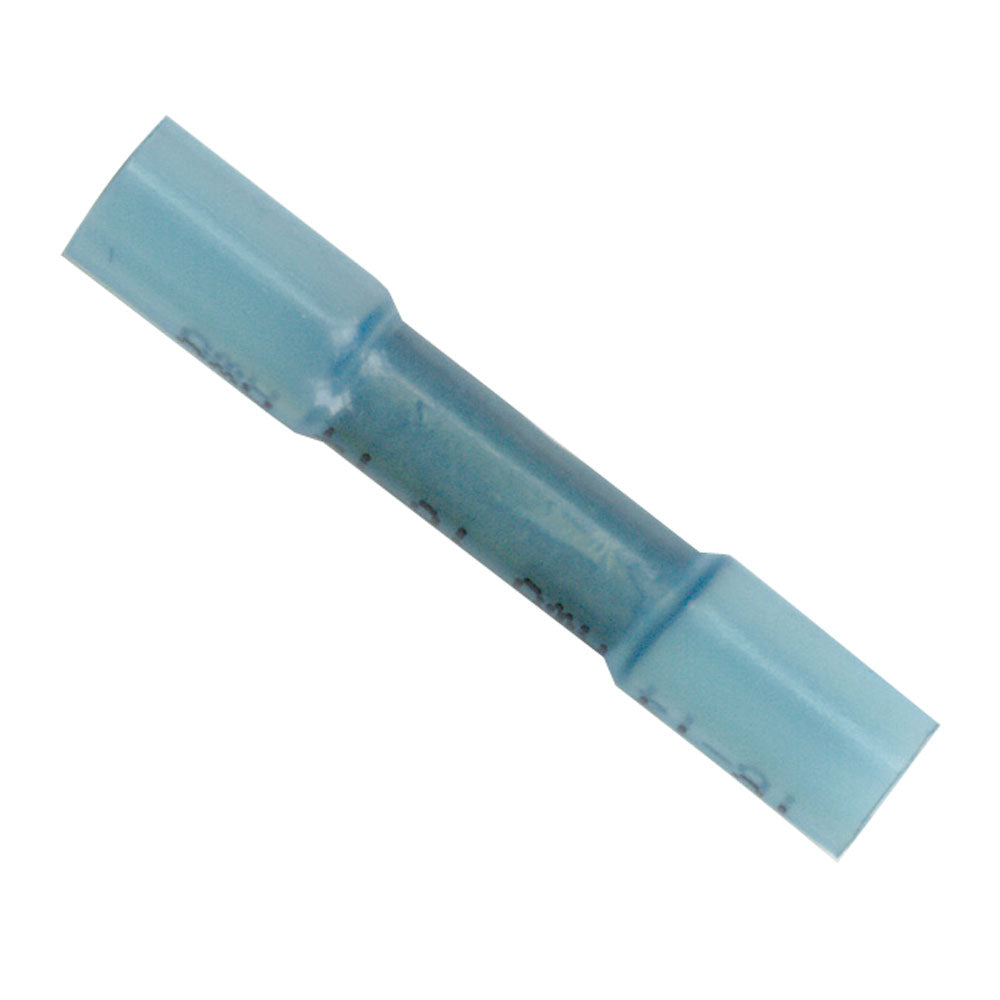

Ancor 16-14 Heatshrink Butt Connectors - 500-Pack for Marine and Automotive Wiring

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.

• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.

• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.

• UL Listed and CSA Recognized

• Highest shrink ratio - shrinks to 1/3 original size.

• Shrinks at 257 deg. F/125 deg. C.

• Operating temperature range 40 deg. C to 110 deg. C.

• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing

• Shrinks to form a water tight seal and the ultimate vibration and strain relief.

• Tinned for corrosion resistance.

• Pure copper for maximum current flow.

• Brazed seam for maximum strength.

• Wire range: 16-14

• mm: 1-2

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor 16-14 Heatshrink Butt Connectors come in a convenient 500-pack, providing reliable connections for marine, automotive, and other electrical applications. These connectors feature cross-linked polyolefin tubing, which is significantly stronger than traditional PVC and resists burning, ensuring durability in demanding environments. The heat-activated adhesive lining provides an impervious seal against salt water, oil, acids, and sunlight, while also offering strain relief to maintain a secure connection over time.

The nylon insulator used in these connectors is preferred by industry professionals for its marine-grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage. UL Listed and CSA Recognized, these connectors meet stringent safety standards. The high shrink ratio—shrinking to one-third of their original size—ensures a tight, water-proof seal when heated to 257°F (125°C). They are designed to operate within a temperature range of 40°C to 110°C, making them versatile for various environments.

Built with tinned pure copper, these connectors provide maximum current flow and excellent corrosion resistance. The brazed seam enhances the overall strength and durability of each connector, ensuring long-term reliability. Suitable for wire sizes from 16 to 14 gauge, these heatshrink butt connectors are ideal for creating secure, vibration-resistant electrical connections in harsh conditions. They are especially suited for marine and outdoor projects where durability and environmental resistance are critical.

Safety is also a priority; these connectors include a warning about potential chemical exposure, specifically to di(2-ethylhexyl)phthalate (DEHP), which is known to cause health risks in California. Proper handling and usage are recommended to ensure safe application of this product.

Features:

• Cross-linked polyolefin tubing is stronger than PVC and resistant to burning.

• Heat-activated adhesive lining provides a waterproof seal and strain relief.

• Nylon insulator offers marine-grade resistance to sunlight, water, oil, and chemicals.

• UL Listed and CSA Recognized for safety and quality assurance.

• Shrinks to one-third of original size, ensuring a tight fit.

• Operates at temperatures from 40°C to 110°C (104°F to 230°F).

• Tinned copper construction for maximum current flow and corrosion resistance.

• Brazed seam for increased strength and durability.

• Suitable for wire sizes 16-14 gauge, with a length of approximately 0.5 inches.
