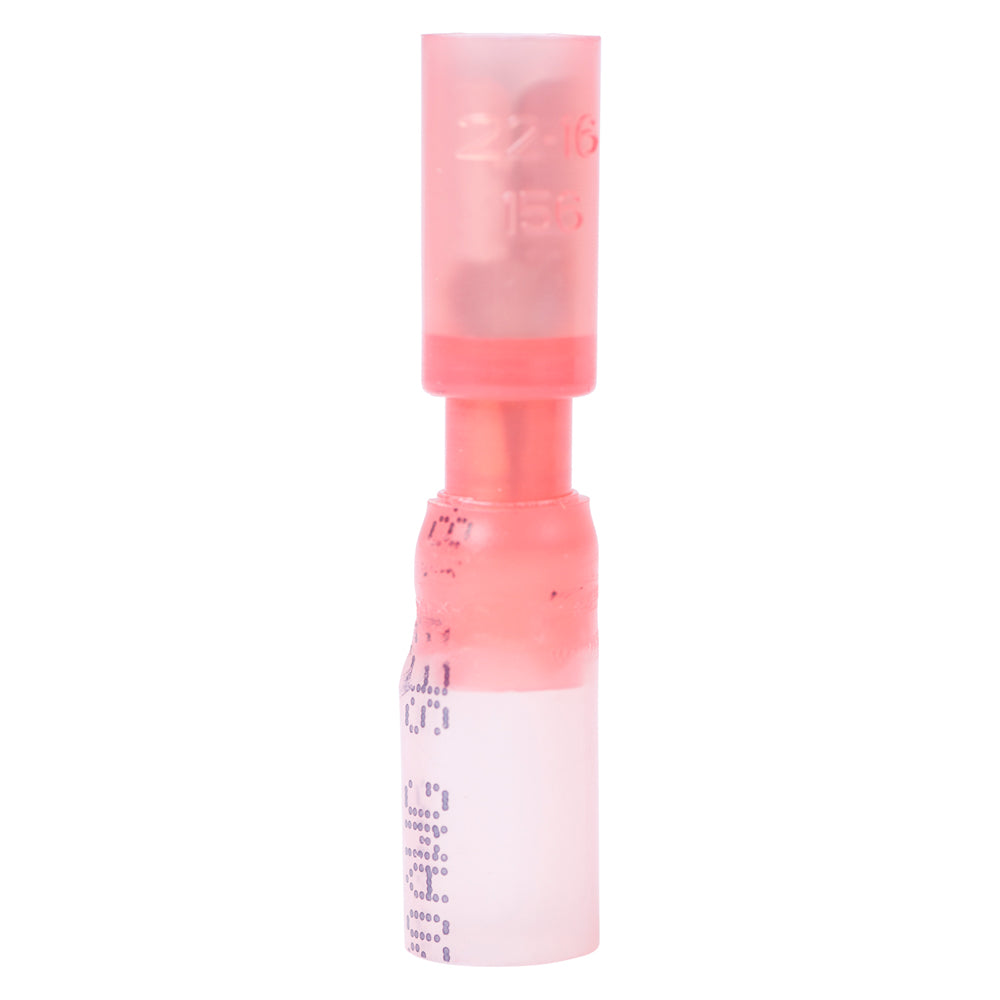

Ancor 22-18 Female Heatshrink Snap Plug - 100-Pack for Marine and Electrical Applications

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.

• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.

• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.

• UL Listed and CSA Recognized

• Highest shrink ratio - shrinks to 1/3 original size.

• Shrinks at 257 deg. F/125 deg. C.

• Operating temperature range 40 deg. C to 110 deg. C.

• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing

• Shrinks to form a water tight seal and the ultimate vibration and strain relief.

• Tinned for corrosion resistance.

• Pure copper for maximum current flow.

• Brazed seam for maximum strength.

• Wire Range: 22-18/.157

• Size: 0.3-0.8mm/4mm

• Gender: Female

• Qty/Pkg: 100

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor 22-18 Female Heatshrink Snap Plug offers a reliable solution for secure, waterproof electrical connections in marine, automotive, and industrial environments. Crafted from cross-linked polyolefin, this tubing is significantly stronger than standard PVC, providing durability and resistance to heat, chemicals, and sunlight. The heat-activated adhesive lining ensures an impervious seal against saltwater, oils, acids, and UV exposure, while offering strain relief to prevent connection failures over time. These features make the connectors ideal for demanding applications where longevity and safety are paramount.
The nylon insulator used in these connectors is favored by professionals for its superior resistance to environmental stressors, including water, oil, and vibration. UL Listed and CSA Recognized, these connectors meet rigorous safety standards, making them suitable for critical electrical systems. With a high shrink ratio that reduces to one-third of their original size when heated to 257°F/125°C, they guarantee a tight, waterproof fit that withstands extreme operating conditions. The operating temperature range from 40°C to 110°C ensures reliable performance across a wide spectrum of environments.
Each connector is tinned for corrosion resistance and made from pure copper to maximize current flow. The brazed seam enhances strength, ensuring a durable and long-lasting connection. Designed for wire sizes 22-18 AWG, with a diameter of approximately 0.157 inches, these female snap plugs are perfect for creating secure, vibration-resistant connections that are easy to install. Available in a pack of 100, they are an essential component for professionals and hobbyists seeking dependable electrical terminations in harsh conditions.

Features:

• Cross-linked polyolefin tubing provides superior strength and heat resistance compared to PVC.

• Heat-activated adhesive lining creates a water-tight seal against saltwater, oils, acids, and UV rays.

• Nylon insulator offers marine-grade resistance to sunlight, water, oil, chemicals, and vibration.

• UL Listed and CSA Recognized to ensure compliance with safety standards.

• High shrink ratio shrinks to one-third of original size for a secure fit.

• Shrinks at 257°F/125°C and operates effectively between 40°C and 110°C.

• Tinned copper construction provides corrosion resistance and maximum current flow.

• Brazed seam enhances connector strength and durability.

• Designed for wire ranges 22-18 AWG with a diameter of approximately 0.157 inches.

• Female gender snap plug, suitable for a variety of electrical applications.
