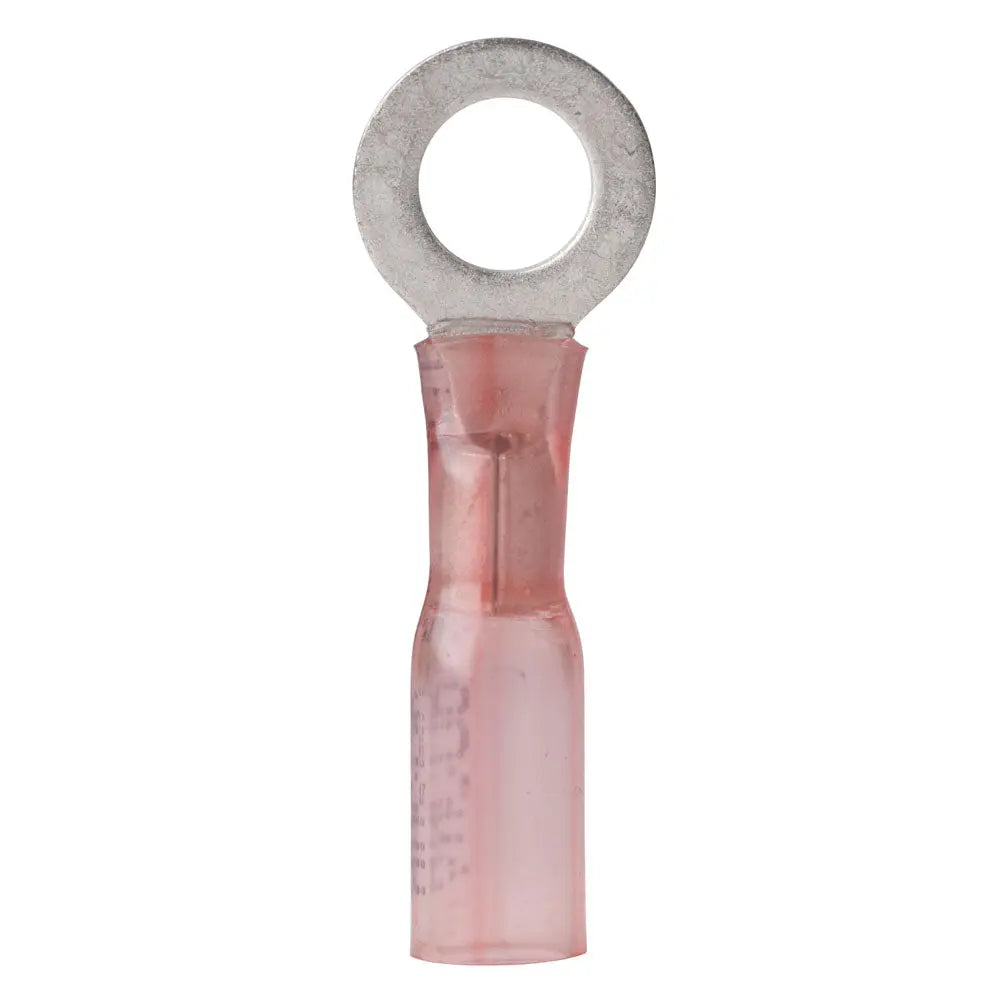

Ancor 22-18 Gauge 1/4-Inch Heat Shrink Ring Terminal 25-Pack

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC

• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief

• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage

• UL Listed and CSA Recognized

• Highest shrink ratio - shrinks to 1/3 original size

• Shrinks at 257 F/125 C

• Operating temperature range 40 C to 110 C

• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing

• Shrinks to form a water tight seal and the ultimate vibration and strain relief

• Tinned for corrosion resistance

• Pure copper for maximum current flow

• Brazed seam for maximum strength

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor 22-18 Gauge 1/4-Inch Heat Shrink Ring Terminal is designed for secure and reliable electrical connections in marine and harsh environments. Constructed with cross-linked polyolefin tubing, this terminal offers superior strength compared to PVC and resists burning, ensuring durability during demanding applications. The heat-activated adhesive lining provides an impervious seal against salt water, oil, acids, and sunlight, while also offering strain relief to protect your wiring connections.
Built with a nylon insulator, these terminals are favored by industry professionals for their marine-grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage. The tinned copper construction ensures maximum corrosion resistance and optimal current flow, making these terminals suitable for critical electrical systems. Featuring a brazed seam, the terminals deliver maximum strength and reliability, even under extreme conditions. The high shrink ratio allows the tubing to shrink to one-third of its original size when heated to 257°F (125°C), forming a tight, waterproof seal that enhances vibration and strain relief.
Operating within a temperature range of 40°C to 110°C, the Ancor heat shrink connectors are UL Listed and CSA Recognized, confirming their safety and quality standards. The product is supplied in a 25-pack, making it ideal for large installations or maintenance projects. Whether used in marine, automotive, or industrial applications, these terminals provide a professional-grade connection that stands up to environmental challenges and electrical demands.Note that this product contains chemicals such as di(2-ethylhexyl)phthalate (DEHP), which may cause health concerns. For detailed safety information, please visit P65Warnings.ca.gov.

Features:

• Cross linked polyolefin tubing is stronger than PVC and resists burning

• Heat activated adhesive lining provides an impervious seal against water, oil, acids, and sunlight

• Nylon insulator offers marine-grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage

• UL Listed and CSA Recognized for safety and quality standards

• Highest shrink ratio: shrinks to 1/3 original size for a tight fit

• Shrinks at 257°F (125°C) for reliable sealing

• Operating temperature range from 40°C to 110°C

• Heat activated adhesive forms a waterproof, vibration, and strain-resistant seal

• Tinned copper construction for corrosion resistance and maximum current flow

• Brazed seam ensures maximum strength and durability
