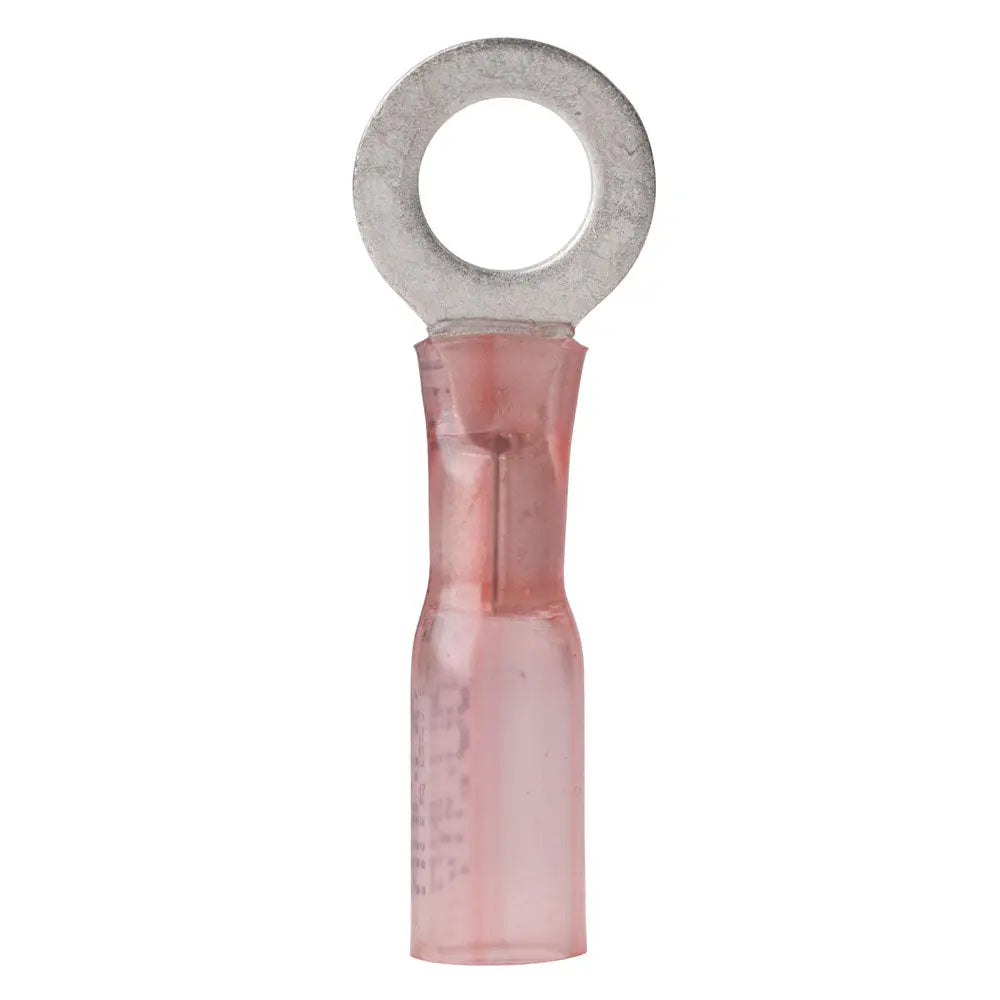

Ancor 22-18 Gauge #10 Heat Shrink Ring Terminal - 100-Pack for Marine and Automotive Wiring

• Cross Linked polyolefin tubing is much stronger than PVC tubing and
  will not burn like PVC

• Heat activated adhesive lining provides impervious seal to salt water,
  oil, acids, and sunlight as well as providing strain relief

• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage

• UL Listed and CSA Recognized

• Highest shrink ratio - shrinks to 1/3 original size

• Shrinks at 257 F/125 C

• Operating temperature range 40 C to 110 C

• ANCOR heat shrink connectors offer heat activated adhesive built into
  the sleeve of the heat shrink tubing

• Shrinks to form a water tight seal and the ultimate vibration and strain relief

• Tinned for corrosion resistance

• Pure copper for maximum current flow

• Brazed seam for maximum strength

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor Part Number 310399 offers a reliable solution for secure electrical connections in marine, automotive, and industrial applications. Designed to accommodate wire ranges from 22 to 18 gauge, these ring terminals feature a #10 screw size for versatile fitting options. The 100-pack provides ample supply for large projects or ongoing maintenance needs. Constructed with high-quality materials, these terminals incorporate cross-linked polyolefin tubing that is significantly stronger than traditional PVC and resists burning or melting under high heat conditions. The heat-activated adhesive lining creates an impervious seal against moisture, saltwater, oils, acids, and UV sunlight, ensuring long-lasting performance even in harsh environments. The nylon insulator, preferred by industry professionals, offers superior resistance to sunlight, water, oil, chemicals, vibration, and mechanical damage. UL Listed and CSA Recognized, these terminals meet rigorous safety and quality standards. The high shrink ratio allows the tubing to shrink to one-third of its original size at 257°F (125°C), providing a tight, waterproof seal and effective strain relief. Operating effectively within a temperature range of 40°C to 110°C, they are suitable for use in demanding conditions. Ancor heat shrink connectors feature built-in heat-activated adhesive for secure, corrosion-resistant connections that resist vibration and strain. Tinned for enhanced corrosion resistance and made from pure copper for maximum current flow, these terminals ensure reliable electrical performance. The brazed seam enhances overall strength and durability, making them ideal for critical wiring applications where dependability is essential.

Features:

• Wire Range: 22-18 gauge for versatile wiring connections

• Screw Size: #10 for compatibility with common terminal fittings

• Materials: Cross-linked polyolefin tubing with heat-activated adhesive for moisture sealing

• Insulation: Nylon insulator provides resistance to sunlight, water, oils, chemicals, and vibration

• Standards: UL Listed and CSA Recognized for safety and quality assurance

• Shrink Ratio: Shrinks to one-third of original size for a tight seal

• Temperature Range: Operates effectively between 40°C and 110°C

• Corrosion Resistance: Tinned copper construction for durability in harsh environments

• Seam Strength: Brazed seam enhances overall connector strength
