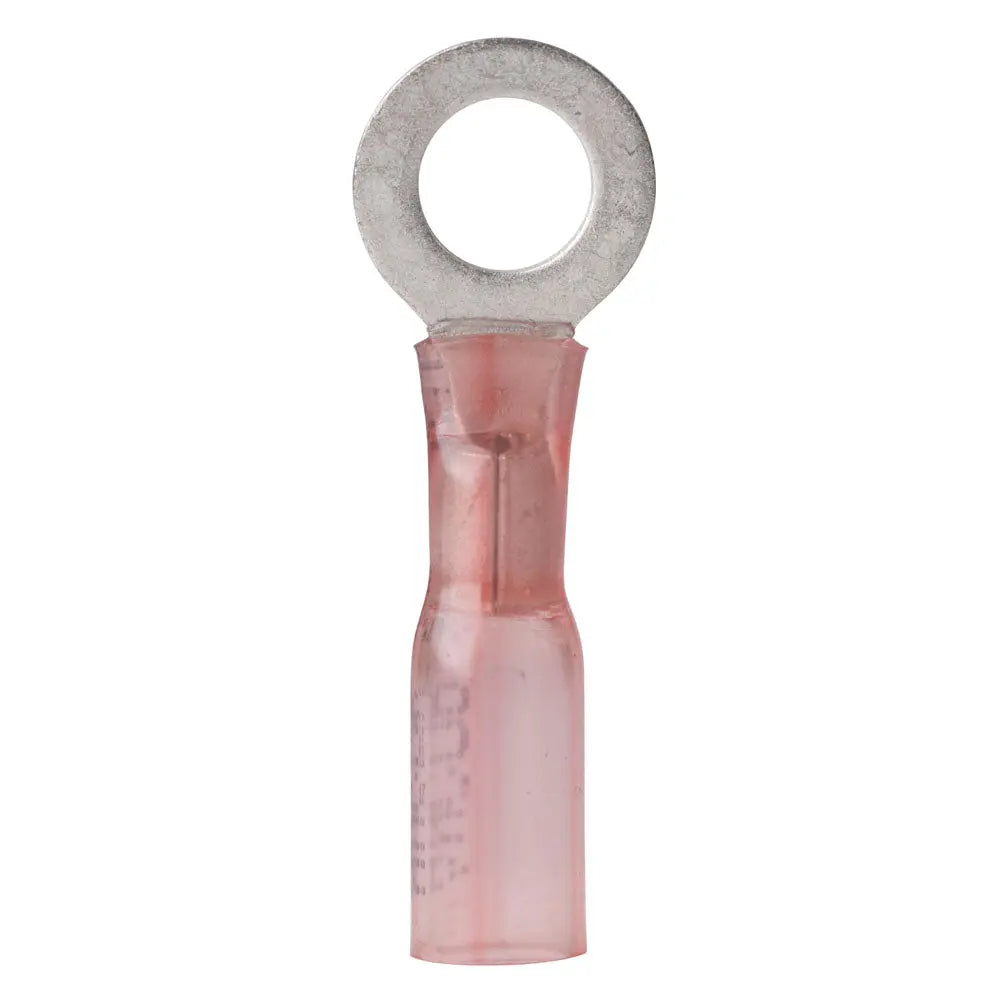

Ancor 22-18 Gauge #10 Heat Shrink Ring Terminal (3-Pack) for Marine and Industrial Wiring

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC

• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief

• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage

• UL Listed and CSA Recognized

• Highest shrink ratio - shrinks to 1/3 original size

• Shrinks at 257 F/125 C

• Operating temperature range 40 C to 110 C

• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing

• Shrinks to form a water tight seal and the ultimate vibration and strain relief

• Tinned for corrosion resistance

• Pure copper for maximum current flow

• Brazed seam for maximum strength

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor Part Number 310303 offers a reliable solution for wiring connections requiring #10 screw size terminals. Designed for wire ranges from 22 to 18 gauge, this 3-pack of heat shrink ring terminals provides a secure and waterproof connection suitable for marine, automotive, and industrial applications. Constructed with cross-linked polyolefin tubing, these terminals are significantly stronger than traditional PVC and resist burns, ensuring durability in harsh environments. The heat-activated adhesive lining forms an impervious seal against saltwater, oils, acids, and sunlight, while also providing strain relief to prevent connection failure over time. The nylon insulator, favored by industry professionals, offers excellent resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage, making these terminals ideal for demanding conditions. UL Listed and CSA Recognized, the Ancor heat shrink connectors feature the highest shrink ratio, reducing to one-third of their original size when heated at 257°F (125°C). Their operating temperature range from 40°C to 110°C ensures reliable performance across various environments. These connectors are tinned for corrosion resistance, made from pure copper for maximum current flow, and feature a brazed seam for added strength. The built-in heat-activated adhesive ensures a water-tight seal and optimal vibration and strain relief, providing a long-lasting connection. Whether for marine wiring, automotive projects, or industrial setups, these terminals deliver professional-grade reliability and ease of installation.

Features:

• Cross-linked polyolefin tubing for increased strength and burn resistance

• Heat-activated adhesive lining creates an impervious seal against water, oils, acids, and sunlight

• Nylon insulator offers superior resistance to sunlight, water, chemicals, vibration, and damage

• UL Listed and CSA Recognized for safety and compliance

• Shrinks to one-third of original size at 257°F (125°C) for a secure fit

• Built-in adhesive provides water-tight seal and strain relief

• Tinned copper construction for corrosion resistance and maximum current flow

• Brazed seam for enhanced mechanical strength
