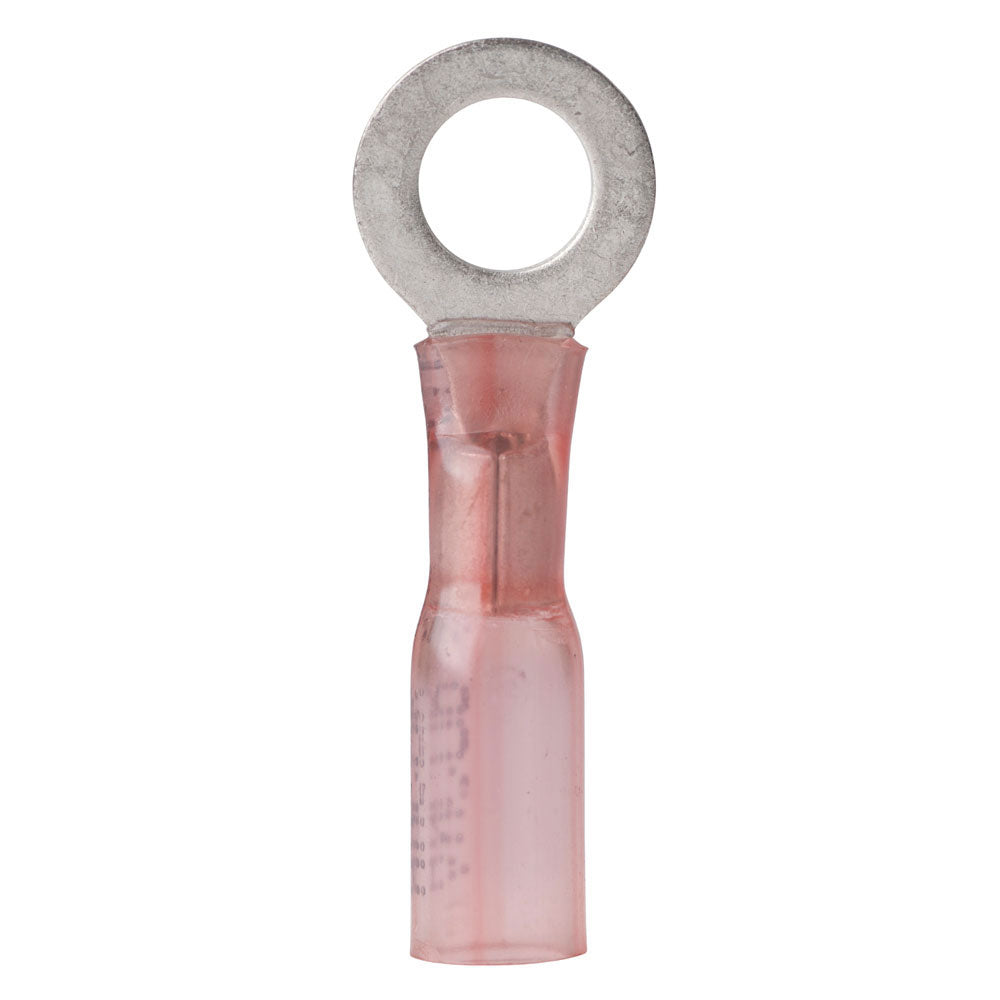

Ancor 22-18 Gauge #8 Heat Shrink Ring Terminal - 100-Pack for Marine and Electrical Applications

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.

• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.

• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.

• UL Listed and CSA Recognized

• Highest shrink ratio - shrinks to 1/3 original size.

• Shrinks at 257 deg. F/125 deg. C.

• Operating temperature range 40 deg. C to 110 deg. C.

• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
  =
• Shrinks to form a water tight seal and the ultimate vibration and strain relief.

• Tinned for corrosion resistance.

• Pure copper for maximum current flow.

• Brazed seam for maximum strength.

• Wire Range: 22-18

• mm: 0.3-0.8

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor Part Number 310299 offers a reliable solution for electrical connections requiring a secure and corrosion-resistant terminal. Designed for 22-18 gauge wire, these #8 heat shrink ring terminals are ideal for marine, automotive, and industrial wiring projects where durability and safety are paramount. The package includes 100 high-quality terminals, ensuring ample supply for various applications. Constructed with advanced materials, these terminals feature cross-linked polyolefin tubing that boasts superior strength compared to traditional PVC. This tubing resists burning and deformation under high temperatures, providing long-lasting performance in demanding environments. The heat-activated adhesive lining creates a waterproof seal that effectively protects against saltwater, oils, acids, and prolonged sun exposure. This seal not only prevents corrosion but also enhances strain relief, reducing the risk of connection failure. The nylon insulator, preferred by industry experts, offers excellent resistance to sunlight, water, oil, chemicals, vibration, and damage from cuts, making these terminals suitable for harsh conditions. UL listed and CSA recognized, the terminals meet rigorous safety and quality standards. The high shrink ratio, shrinking to one-third of their original size at 257°F (125°C), ensures a tight, reliable fit. Operating efficiently within a temperature range of 40°C to 110°C, these terminals are versatile for various environments. The tinned copper construction maximizes current flow and provides corrosion resistance, while the brazed seam enhances mechanical strength. These terminals are designed with a #8 screw size and are compatible with wire ranges of 22-18 gauge, from 0.3 to 0.8 mm. Whether for marine wiring, automotive repairs, or industrial installations, the Ancor heat shrink ring terminals deliver secure, waterproof, and vibration-resistant connections for demanding applications.

Features:

• Cross-linked polyolefin tubing offers superior strength and heat resistance compared to PVC.

• Heat-activated adhesive lining provides an impervious seal against saltwater, oils, acids, and sunlight, while also offering strain relief.

• Nylon insulator delivers marine-grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage.

• UL Listed and CSA Recognized for safety and quality compliance.

• High shrink ratio shrinks to one-third of original size at 257°F (125°C).

• Operates within a temperature range of 40°C to 110°C, suitable for various environments.

• Constructed with tinned pure copper for maximum current flow and corrosion resistance.

• Brazed seam enhances mechanical strength and durability.

• Designed for wire sizes 22-18 gauge with a #8 screw size, accommodating wire ranges of 0.3-0.8 mm.
