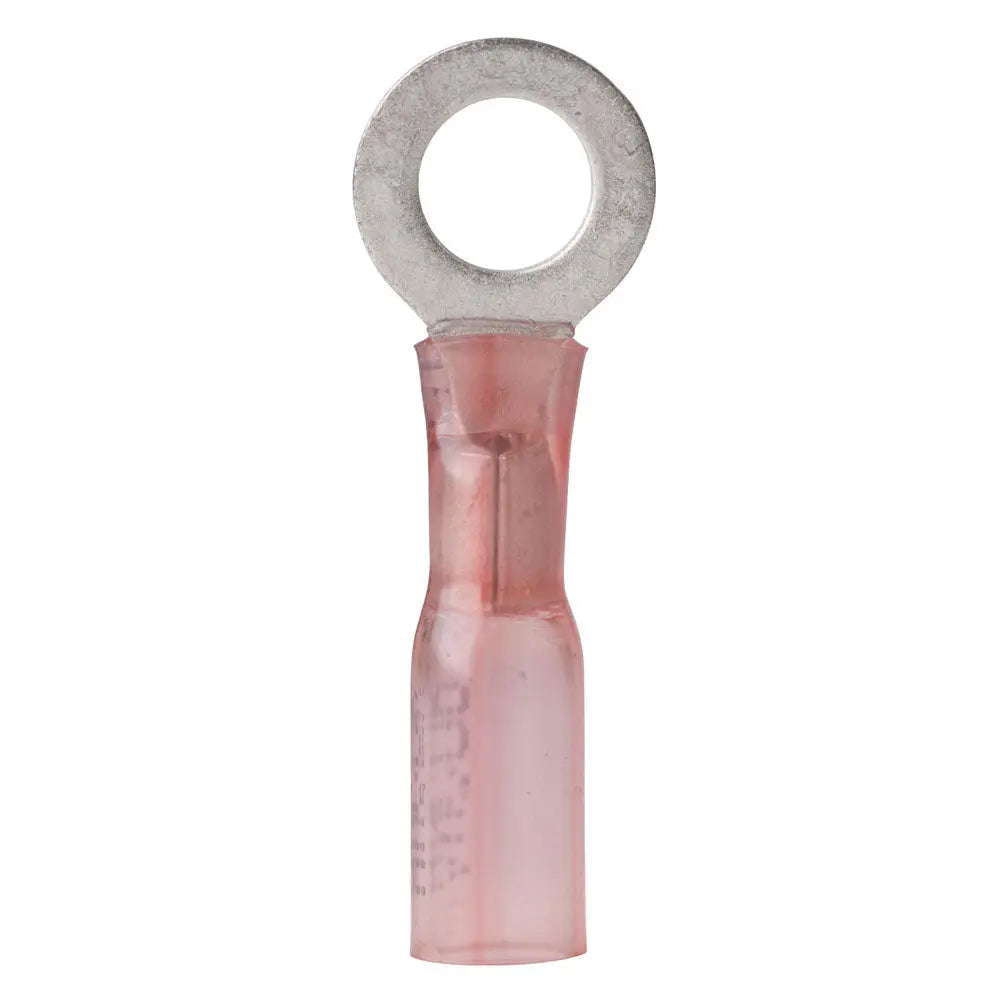

Ancor 22-18 Gauge #8 Heat Shrink Ring Terminal - 3-Pack for Marine and Automotive Applications

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.

• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.

• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.

• UL Listed and CSA Recognized

• Highest shrink ratio - shrinks to 1/3 original size.

• Shrinks at 257 deg. F/125 deg. C.

• Operating temperature range 40 deg. C to 110 deg. C.

• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing

• Shrinks to form a water tight seal and the ultimate vibration and strain relief.

• Tinned for corrosion resistance.

• Pure copper for maximum current flow.

• Brazed seam for maximum strength.

• Wire Range: 22-18

• mm: 0.3-0.8

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor 22-18 Gauge #8 Heat Shrink Ring Terminal (Part Number 310203) is designed for reliable electrical connections in marine, automotive, and industrial environments. This 3-pack features high-quality components built to withstand harsh conditions and provide long-lasting performance. The terminals are made with tinned pure copper, ensuring maximum current flow and corrosion resistance, while a brazed seam enhances overall strength and durability. Ideal for crimping onto wires within the 22-18 gauge range, these terminals are suitable for a variety of wiring projects where secure, corrosion-resistant connections are essential.
Constructed with cross-linked polyolefin tubing, these terminals are significantly stronger than PVC alternatives and are resistant to burning. The heat-activated adhesive lining provides an impervious seal against salt water, oil, acids, and sunlight, preventing corrosion and ensuring a waterproof connection. The nylon insulator, favored by industry professionals, offers excellent resistance to sunlight, water, oil, chemicals, vibration, and abrasion, making it suitable for demanding environments. These terminals are UL Listed and CSA Recognized, confirming their safety and compliance with industry standards.
With the highest shrink ratio available—shrinking to one-third of their original size—these terminals ensure a tight, water-proof seal and optimal strain relief. They shrink at 257°F (125°C) and operate effectively within a temperature range of 40°C to 110°C. The design includes a brazed seam for maximum strength and a seamless fit, enhancing performance under vibration and strain. Tinned for additional corrosion resistance, these terminals are built for longevity and reliable electrical contact even in challenging conditions. Whether used in marine, automotive, or other rugged applications, the Ancor heat shrink ring terminals deliver secure, sealed connections that stand the test of time.

Features:

• Cross-linked polyolefin tubing is stronger and more heat resistant than PVC, preventing burns and damage.

• Heat-activated adhesive lining creates an impervious, waterproof seal against salt water, oil, acids, and sunlight.

• Nylon insulator provides marine-grade resistance to sunlight, moisture, oil, chemicals, vibration, and cut-through damage.

• UL Listed and CSA Recognized for safety and compliance.

• Shrinks to one-third of original size for a secure fit and strain relief.

• Shrinks at 257°F (125°C) for quick and effective sealing.

• Operates within a temperature range of 40°C to 110°C for versatile use.

• Built-in adhesive ensures water-tight sealing and vibration resistance.

• Tinned copper construction offers maximum corrosion resistance and electrical conductivity.

• Brazed seam design for maximum strength and durability.

• Suitable for wire ranges from 22 to 18 gauge.
