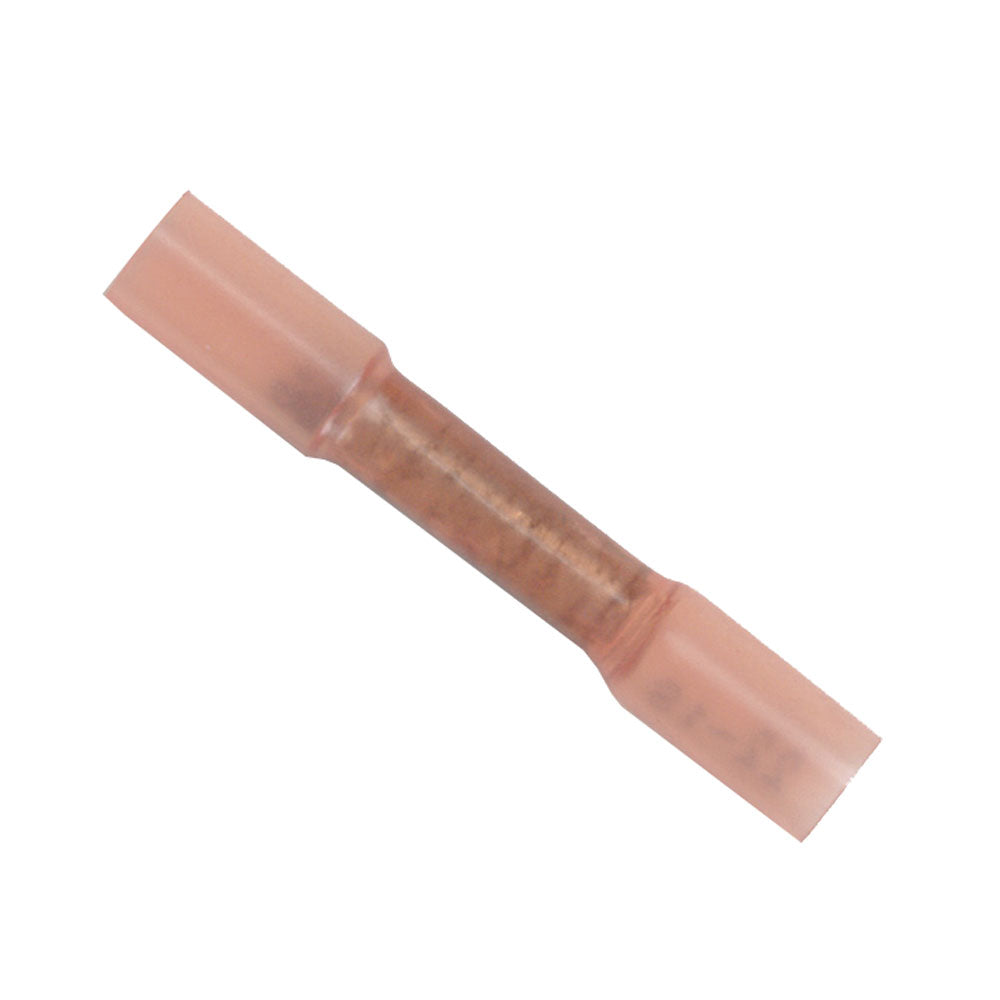

Ancor 22-18 Heatshrink Butt Connectors - 100-Pack for Marine and Automotive Wiring

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.

• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.

• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.

• UL Listed and CSA Recognized

• Highest shrink ratio - shrinks to 1/3 original size.

• Shrinks at 257 deg. F/125 deg. C.

• Operating temperature range 40 deg. C to 110 deg. C.

• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing

• Shrinks to form a water tight seal and the ultimate vibration and strain relief.

• Tinned for corrosion resistance.

• Pure copper for maximum current flow.

• Brazed seam for maximum strength.

• Wire range: 22-18

• mm: 0.3 - 0.8

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Ensure reliable electrical connections with the Ancor 22-18 Heatshrink Butt Connectors, available in a convenient 100-pack. Designed for gauge sizes 22 to 18, these connectors are ideal for marine, automotive, and other professional wiring applications. The cross-linked polyolefin tubing used in these connectors is significantly stronger than standard PVC and resists burning, providing durability and safety in demanding environments. The heat-activated adhesive lining guarantees an impervious seal against salt water, oils, acids, and sunlight, while also offering strain relief to maintain a secure connection over time. These connectors feature a nylon insulator, which is preferred by experts for its marine-grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage, ensuring long-lasting performance even in harsh conditions. UL listed and CSA recognized, they meet rigorous safety standards for electrical components. The highest shrink ratio allows the tubing to shrink to just one-third of its original size when heated to 257°F (125°C), creating a tight, waterproof seal and providing excellent vibration and strain relief. Tinned for corrosion resistance and made from pure copper, these connectors enable maximum current flow and durability. The brazed seam construction enhances strength, making them suitable for demanding applications. The connectors are designed to accommodate wire gauges 22-18, with a shrink diameter range of approximately 0.3 to 0.8 inches. Operating within a temperature range of 40°C to 110°C, they are versatile for various environments. The Ancor heat shrink connectors combine high-quality materials and construction to deliver dependable, long-term electrical connections with a water-tight seal and robust strain relief, making them an essential component for professional wiring projects.

Features:

• Cross-linked polyolefin tubing is stronger than PVC and resistant to burning

• Heat-activated adhesive lining provides an impervious seal against salt water, oil, acids, and sunlight

• Nylon insulator offers marine-grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage

• UL Listed and CSA Recognized for safety and quality

• Shrink ratio of 1/3 original size for a tight, water-proof seal

• Shrinks at 257°F (125°C) for efficient installation

• Operating temperature range from 40°C to 110°C for versatile use

• Built-in adhesive for water resistance and strain relief

• Tinned for corrosion resistance with pure copper for maximum current flow

• Brazed seam construction for maximum strength

• Suitable for wire gauges 22-18 with a diameter range of approximately 0.3 to 0.8 inches
