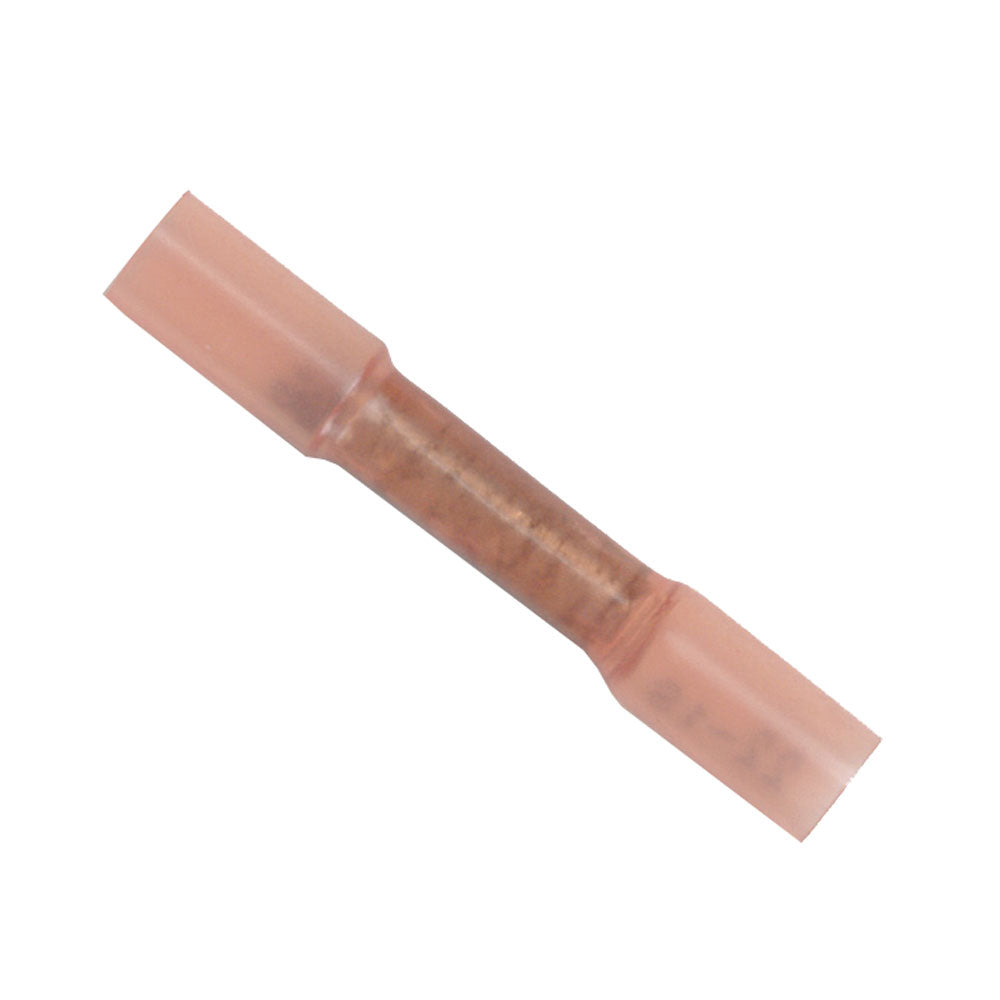

Ancor 22-18 Heatshrink Butt Connectors - 500-Pack for Marine and Automotive Wiring

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.

• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.

• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.

• UL Listed and CSA Recognized

• Highest shrink ratio - shrinks to 1/3 original size.

• Shrinks at 257 deg. F/125 deg. C.

• Operating temperature range 40 deg. C to 110 deg. C.

• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing

• Shrinks to form a water tight seal and the ultimate vibration and strain relief.

• Tinned for corrosion resistance.

• Pure copper for maximum current flow.

• Brazed seam for maximum strength.

• Wire range: 22-18

• mm: 0.3 - 0.8

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor 22-18 Heatshrink Butt Connectors provide a reliable solution for secure electrical connections in marine, automotive, and other demanding environments. This 500-pack features high-quality connectors made from cross-linked polyolefin tubing, which offers superior strength and durability compared to PVC. The tubing's heat-activated adhesive lining ensures a watertight seal that resists saltwater, oil, acids, and UV damage while providing strain relief for long-lasting connections. The nylon insulator, favored by professionals, offers exceptional resistance to sunlight, water, oil, chemicals, vibration, and mechanical wear, making these connectors ideal for harsh conditions. UL listed and CSA recognized, they meet rigorous safety and quality standards. With a high shrink ratio, these connectors shrink to one-third of their original size at 257°F (125°C), forming a tight, secure fit that prevents corrosion and ensures maximum current flow. Constructed from pure copper and brazed seam for maximum strength, they deliver excellent electrical conductivity and mechanical integrity. The connectors accommodate wire sizes from 22 to 18 gauge, providing versatility for various wiring projects. Operating within a temperature range of 40°C to 110°C, they are suitable for most industrial and marine applications. These heat-activated connectors are designed to shrink tightly around conductors, creating a water-tight seal and providing vibration and strain relief essential for reliable electrical systems. The tinned copper construction enhances corrosion resistance, extending the lifespan of the connection in corrosive environments. Whether used in marine or automotive wiring, the Ancor heat shrink connectors deliver professional-grade performance, durability, and safety for all your electrical needs.

Features:

• Cross-linked polyolefin tubing offers superior strength and durability over PVC

• Heat-activated adhesive lining provides an impervious, waterproof seal and strain relief

• Nylon insulator offers marine-grade resistance to sunlight, water, oil, chemicals, and vibration

• UL Listed and CSA Recognized for safety and quality assurance

• Shrinks to one-third of original size at 257°F (125°C) for a secure fit

• Designed to operate within a temperature range of 40°C to 110°C

• Constructed from tinned pure copper for maximum corrosion resistance and electrical conductivity

• Brazed seam enhances connector strength and integrity

• Suitable for wire sizes from 22 to 18 gauge
