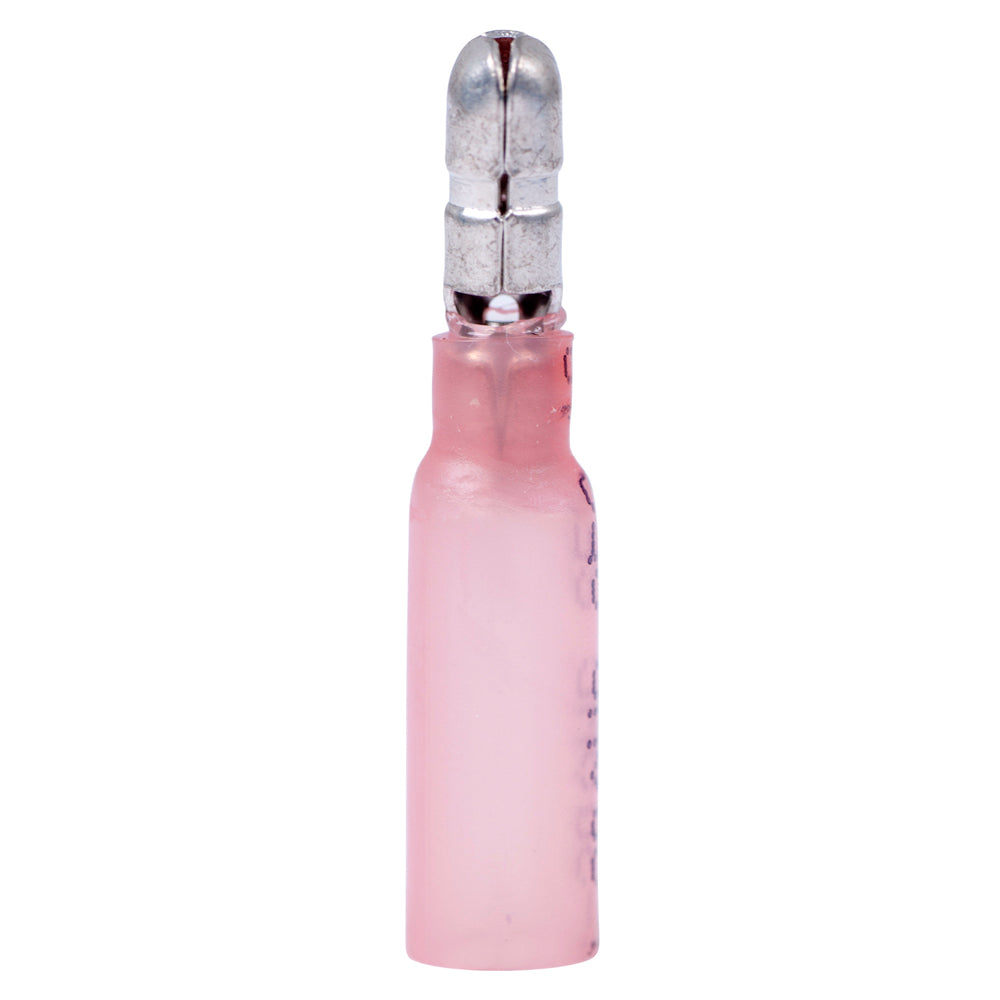

Ancor 22-18 Male Heatshrink Snap Plug - 100-Pack for Marine and Electrical Applications

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.

• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.

• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.

• UL Listed and CSA Recognized

• Highest shrink ratio - shrinks to 1/3 original size.

• Shrinks at 257 deg. F/125 deg. C.

• Operating temperature range 40 deg. C to 110 deg. C.

• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing

• Shrinks to form a water tight seal and the ultimate vibration and strain relief.

• Tinned for corrosion resistance.

• Pure copper for maximum current flow.

• Brazed seam for maximum strength.

• Wire Range: 22-18/.157

• Size: 0.3-0.8mm/4mm

• Gender: Male

• Qty/Pkg: 100

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor 22-18 Male Heatshrink Snap Plug is designed for reliable electrical connections in marine and demanding environments. Constructed with high-quality cross-linked polyolefin tubing, this snap plug offers superior strength compared to PVC, ensuring durability and safety. Its heat-activated adhesive lining creates a waterproof and strain-relief seal that resists salt water, oil, acids, and sunlight, making it ideal for marine-grade wiring and outdoor projects. The nylon insulator provides excellent resistance to UV rays, water, oil, chemicals, vibration, and mechanical damage, ensuring long-lasting performance in harsh conditions. UL Listed and CSA Recognized, these connectors meet rigorous safety standards for electrical components. The high shrink ratio allows the tubing to shrink to one-third of its original size when heated to 257°F (125°C), providing a tight, waterproof seal that prevents corrosion and mechanical failure. Designed to operate within a temperature range of 40°C to 110°C, these connectors are suitable for a wide variety of electrical environments. The pure copper construction ensures maximum current flow, while the brazed seam increases overall strength and reliability. The tinned finish offers additional corrosion resistance, extending the lifespan of the connection. Suitable for wire ranges from 22 to 18 AWG, with a size accommodating 0.157 inches or 4 millimeters, these male heatshrink connectors are sold in a 100-pack for extensive wiring needs. Whether used in marine, automotive, or industrial applications, the Ancor Heatshrink Snap Plugs provide a secure, waterproof, and vibration-resistant connection solution that ensures electrical integrity and safety over time.

Features:

• Cross-linked polyolefin tubing is stronger than PVC and resistant to burning

• Heat-activated adhesive lining provides an impervious seal against salt water, oil, acids, and sunlight, offering strain relief

• Nylon insulator offers Marine Grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage

• UL Listed and CSA Recognized for safety and quality assurance

• Highest shrink ratio: shrinks to one-third of original size for a tight fit

• Shrinks at 257°F (125°C) to form a water-tight seal and provide vibration and strain relief

• Tinned copper construction for corrosion resistance and maximum current flow

• Brazed seam for enhanced strength and durability

• Designed for wire ranges from 22 to 18 AWG, with a size of 0.3 to 0.8mm (4mm)
