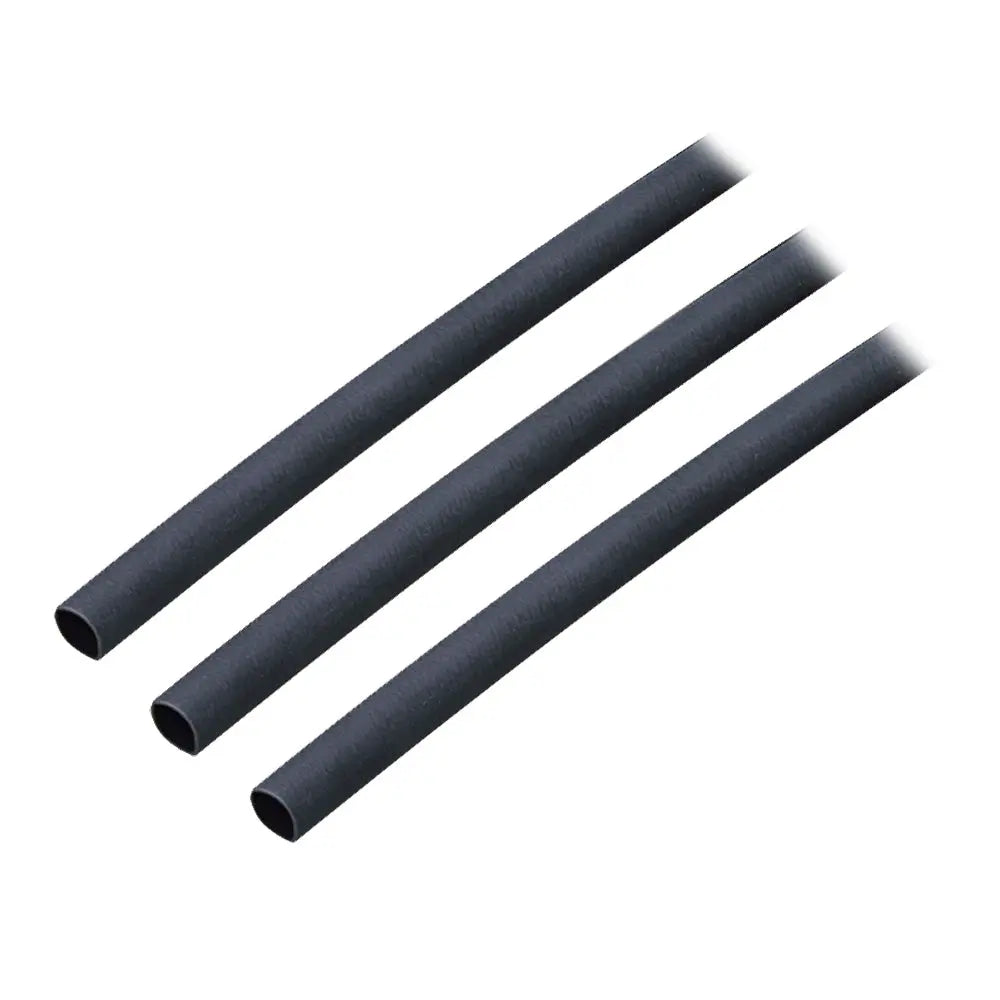

Ancor 302103 Adhesive Lined Heat Shrink Tubing, 3/16 Inch x 3 Inches, 3-Pack, Black

Adhesive Lined Heat Shrink Tubing (ALT) - 3/16" x 3" - 3-Pack - Black

Package of 3 Black 3"(7.6cm) long sections with a 3/16"(4.8mm) diameter that shrinks to 1/16"(1.6mm)

Wire Range: 20-12 AWG

Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and
  will not burn like PVC

• Heat activated adhesive lining provides impervious seal to salt water,
  oil, acids, and sunlight as well as providing strain relief

• Highest shrink ratio - shrinks to 1/3 original size

• Shrinks at 257F / 125C

• Operating temperature range of -40C to 110C

• UL 224

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This package includes three sections of Ancor's high-quality adhesive lined heat shrink tubing, each measuring 3 inches in length with a diameter of 3/16 inch that shrinks down to 1/16 inch. Designed for reliable insulation and strain relief, these tubes are ideal for wiring projects where durability and protection against harsh conditions are essential. The tubing is compatible with wire ranges from 20 to 12 AWG, making it versatile for various electrical applications. The black color provides a professional look and UV resistance suitable for outdoor environments. Crafted from cross-linked polyolefin, this tubing is significantly stronger than PVC and will not burn during installation, ensuring safety and longevity. The heat-activated adhesive lining creates an impervious seal to salt water, oil, acids, and sunlight, enhancing the durability of your connections in demanding conditions. With a high shrink ratio, the tubing shrinks to one-third of its original diameter when heated to 257°F (125°C). It operates within a temperature range of -40°C to 110°C, making it suitable for both indoor and outdoor use. UL 224 certified, these heat shrink tubes meet safety and performance standards, providing peace of mind for electrical wiring, marine, and automotive applications. Ensure your connections are protected against environmental elements with Ancor’s reliable heat shrink tubing, designed for professional-grade insulation and sealing.

Features:

• Cross-linked polyolefin tubing that is stronger than PVC and resistant to burning

• Heat-activated adhesive lining provides an impervious seal against saltwater, oil, acids, and sunlight, offering strain relief

• Highest shrink ratio—shrinks to one-third of its original size for secure fitting

• Shrinks at 257°F (125°C) for quick and efficient installation

• Operates within a temperature range of -40°C to 110°C for versatile applications

• UL 224 certified for safety and quality assurance
