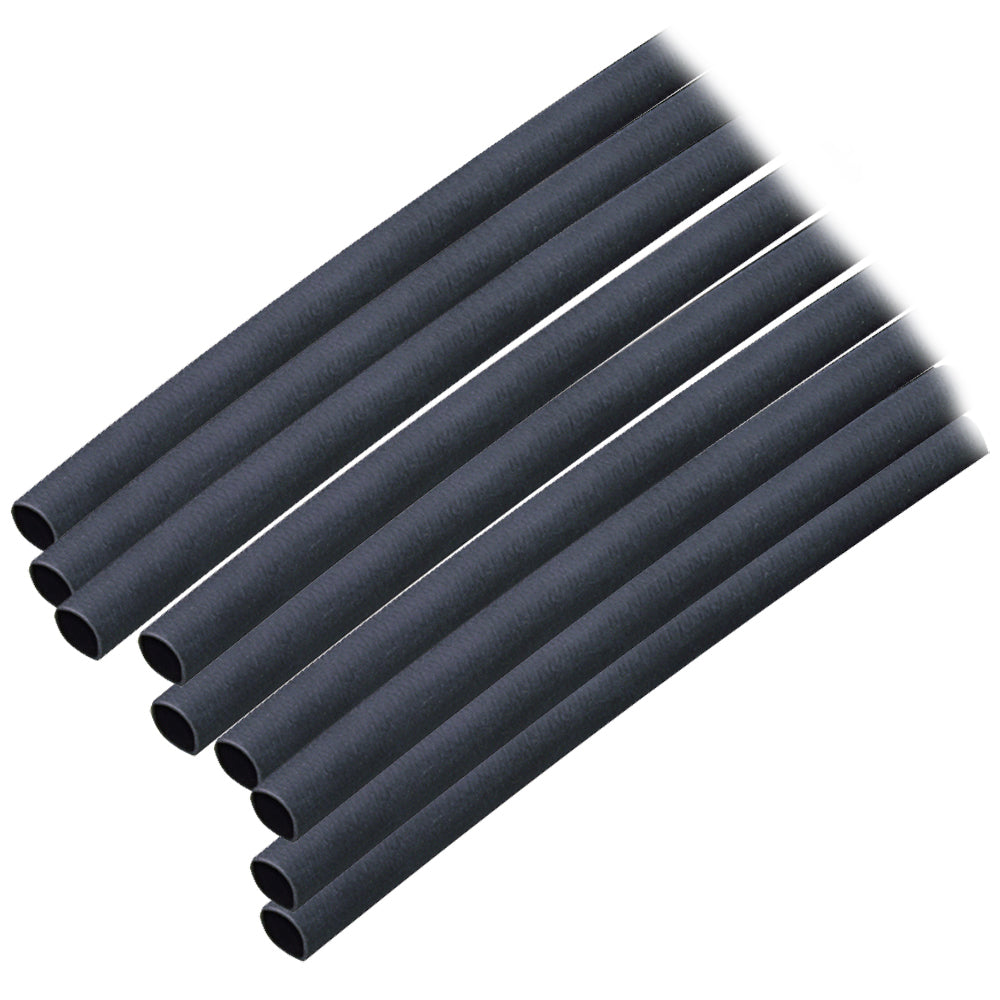

Ancor 302106 Adhesive Lined Heat Shrink Tubing, 3/16 Inch Diameter, 6 Inch Length, Black – Pack of 10

Adhesive Lined Heat Shrink Tubing (ALT) - 3/16" x 6" - 10-Pack - Black

Package of 10 Black 6"(15.2cm) long sections with a 3/16"(4.8mm) diameter that shrinks to 1/16"(1.6mm)

Wire Range: 20-12 AWG

Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and
  will not burn like PVC

• Heat activated adhesive lining provides impervious seal to salt water,
  oil, acids, and sunlight as well as providing strain relief

• Highest shrink ratio - shrinks to 1/3 original size

• Shrinks at 257F / 125C

• Operating temperature range of -40C to 110C

• UL 224

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor 302106 Adhesive Lined Heat Shrink Tubing is designed for reliable insulation and protection of electrical connections. Each of the 10 black sections measures 6 inches in length and features a 3/16 inch diameter that shrinks to approximately 1/16 inch when heated. This tubing is ideal for wire ranges from 20 to 12 AWG, providing a tight, secure fit that ensures long-lasting durability. Made from cross-linked polyolefin, it is significantly stronger than standard PVC tubing and offers enhanced resistance to heat, chemicals, and UV exposure. The heat-activated adhesive lining creates an impervious seal around the wire, effectively protecting against saltwater, oil, acids, and sunlight while also providing strain relief for wire connections. The tubing's high shrink ratio means it can reduce to roughly one-third of its original size, ensuring a snug fit even in tight spaces. It shrinks efficiently at 257°F (125°C) and functions within an operating temperature range from -40°C to 110°C, making it suitable for various demanding environments. UL 224 certified, this heat shrink tubing meets strict safety standards. Whether used in marine, automotive, or industrial applications, this product offers a durable solution for protecting and insulating electrical components. Proper application of this tubing ensures a secure, weather-resistant, and strain-relieved connection that enhances system longevity and performance.

Features:

• Cross-linked polyolefin tubing is stronger than PVC and resistant to burning

• Heat-activated adhesive lining provides an impervious seal against saltwater, oil, acids, and sunlight

• High shrink ratio shrinks to approximately one-third of original size

• Shrinks at 257°F (125°C) for secure application

• Operates within a temperature range of -40°C to 110°C (-40°F to 230°F)

• UL 224 certified for safety and quality
