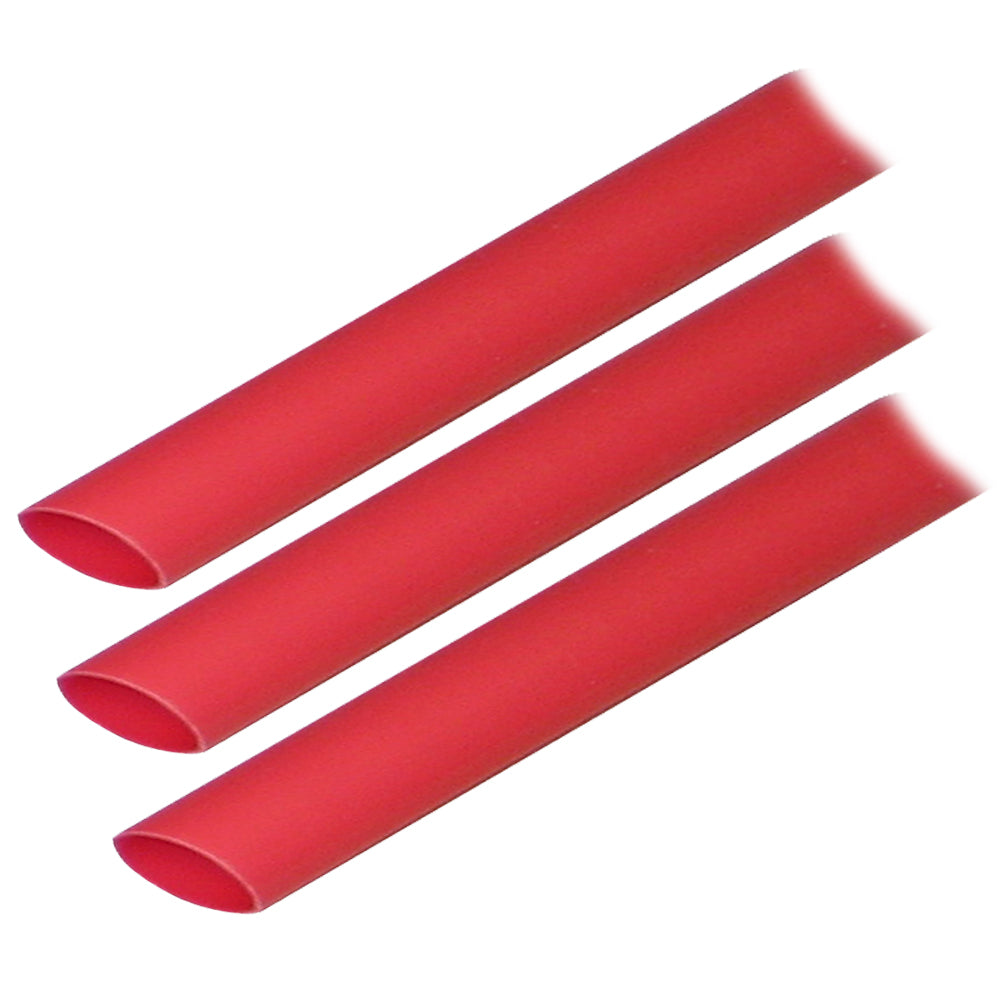

Ancor 305603 Adhesive Lined Heat Shrink Tubing, 1/2 Inch x 3 Inch, Red, 3-Pack

Adhesive Lined Heat Shrink Tubing (ALT) - 1/2" x 3" - 3-Pack - Red

Package of 3 Red 3"(7.6cm) long sections with a 1/2"(12.7mm) diameter that shrinks to 5/32"(4mm)

Wire Range: 8-4 AWG

Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and
  will not burn like PVC

• Heat activated adhesive lining provides impervious seal to salt water,
  oil, acids, and sunlight as well as providing strain relief

• Highest shrink ratio - shrinks to 1/3 original size

• Shrinks at 257F / 125C

• Operating temperature range of -40C to 110C

• UL 224

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor 305603 Adhesive Lined Heat Shrink Tubing offers a reliable solution for electrical insulation and protection in demanding environments. Each package includes three sections of red tubing, measuring 3 inches in length with a 1/2-inch diameter, which efficiently shrinks to a 5/32-inch diameter when activated. Designed to accommodate wire ranges from 8 to 4 AWG, this tubing is ideal for a variety of marine, automotive, and industrial applications. The cross-linked polyolefin material provides superior strength compared to PVC, ensuring durability and resistance to environmental stressors. Its heat-activated adhesive lining creates a robust, waterproof seal that guards against salt water, oil, acids, and sunlight, while also providing strain relief to prevent wire damage. With a high shrink ratio of 3:1, the tubing shrinks at 257°F (125°C), making installation straightforward even in tight spaces. The operating temperature range from -40°C to 110°C ( -40°F to 230°F) ensures reliable performance across diverse conditions. Certified under UL 224 standards, the Ancor heat shrink tubing guarantees safety and quality. Please note that this product contains chemicals such as di(2-ethylhexyl)phthalate (DEHP), which are recognized by California’s Proposition 65 as potentially harmful, so proper handling and disposal are advised.

Features:

• Cross-linked polyolefin tubing is stronger than PVC and resistant to burning

• Heat-activated adhesive lining provides an impervious seal against moisture, saltwater, oil, acids, and sunlight

• Shrinks to one-third of its original size for secure fitting

• Shriinks at 257°F (125°C) for quick installation

• Operates reliably within a temperature range of -40°C to 110°C (-40°F to 230°F)

• UL 224 certified for safety and quality
