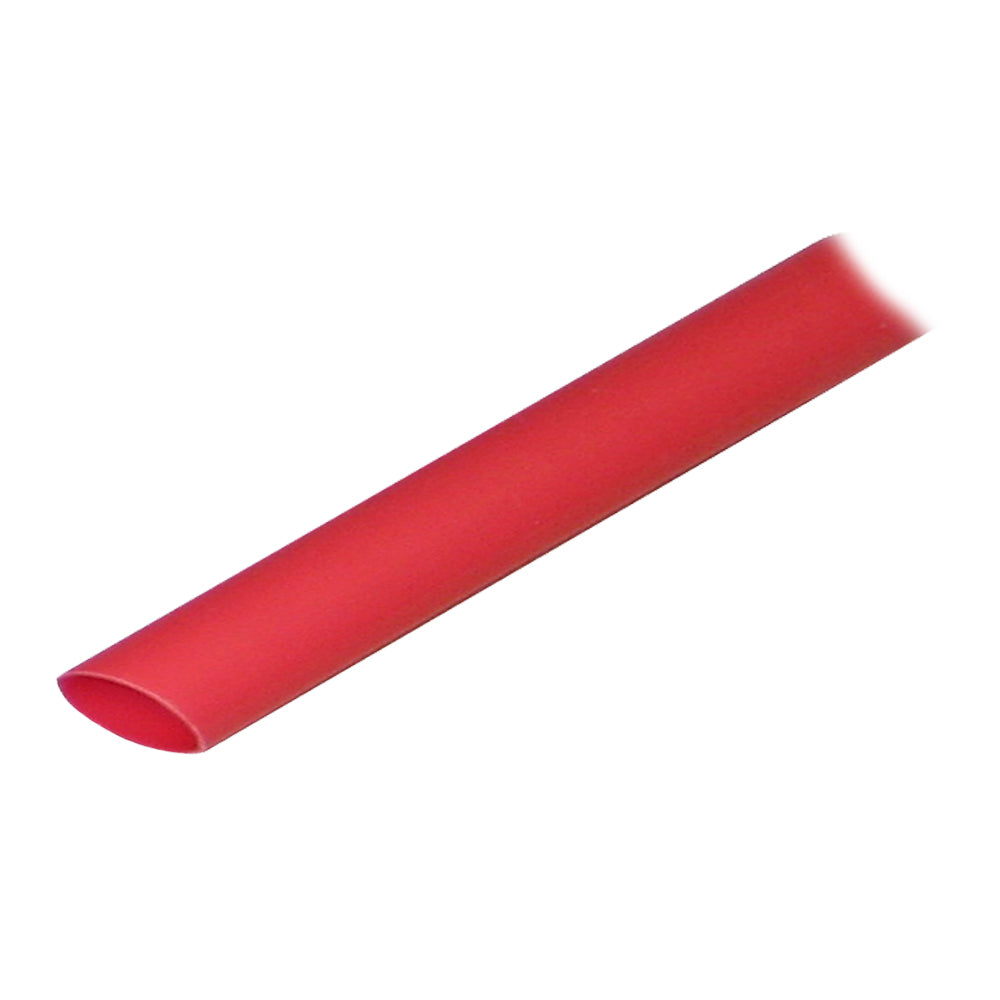

Ancor 305648 Adhesive Lined Heat Shrink Tubing, 1/2 Inch x 48 Inches, Red

Adhesive Lined Heat Shrink Tubing (ALT) - 1/2" x 48" - 1-Pack - Red

Package of 1 Red 48"(122cm) long sections with a 1/2"(12.7mm) diameter that shrinks to 5/32"(4mm)

Wire Range: 8-4 AWG

Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and
  will not burn like PVC

• Heat activated adhesive lining provides impervious seal to salt water,
  oil, acids, and sunlight as well as providing strain relief

• Highest shrink ratio - shrinks to 1/3 original size

• Shrinks at 257F / 125C

• Operating temperature range of -40C to 110C

• UL 224

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor 305648 Adhesive Lined Heat Shrink Tubing is designed for reliable wiring insulation and protection in various applications. This high-quality heat shrink tubing features a 1/2 inch diameter that shrinks to a 5/32 inch diameter, providing a secure fit around wires and cables. Each package includes a 48-inch long section, suitable for multiple uses or extended coverage. Constructed from cross-linked polyolefin, it offers superior strength compared to PVC tubing and resists burning or melting when exposed to high temperatures. The heat-activated adhesive lining ensures an impervious seal against salt water, oil, acids, and sunlight, enhancing durability and strain relief in harsh environments. The tubing shrinks uniformly at 257°F (125°C) with a high shrink ratio of 3:1, making it versatile for various wire sizes and configurations. It operates effectively within a temperature range of -40°C to 110°C, ensuring performance in extreme conditions. UL 224 certified, this tubing meets stringent safety standards for electrical insulation and protection. The Ancor heat shrink tubing is ideal for marine, automotive, and industrial wiring projects requiring reliable sealing and strain relief. Its strong, resilient design minimizes wear and environmental damage, extending the lifespan of installed wiring. Whether for repair, installation, or insulation, this tubing provides a dependable solution for professional and DIY applications alike.

Features:

• Cross-linked polyolefin tubing is stronger than PVC and resistant to burning

• Heat-activated adhesive lining provides a waterproof seal against salt water, oil, acids, and sunlight

• Shrinks to one-third of its original size for a secure fit

• Shrinks uniformly at 257°F (125°C)

• Operates within a temperature range of -40°C to 110°C (-40°F to 230°F)

• UL 224 certified for electrical safety and insulation
